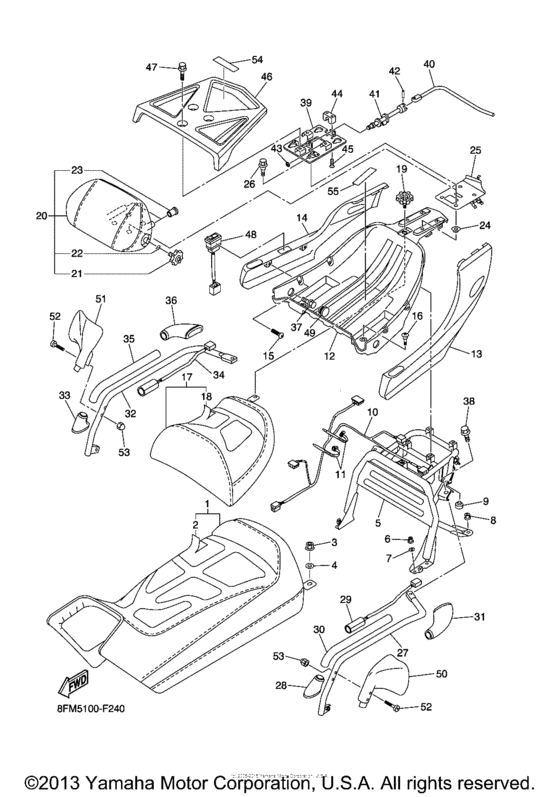

Seat Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-24710-00-00 Single Seat Assy |
8ET-24710-00-00 |
from US $629.64 |
||
|
2
|
2
8ET-2470F-00-00 Seat Cover Comp |
8ET-2470F-00-00 |
from US $305.33 |
||
| replacement | |||||
|
2
|
2
8ET-2470F-01-00 Seat Cover Comp |
8ET-2470F-01-00 |
US $699.08 |
||
|
3
|
3
95702-08300-00 Nut, Flange |
95702-08300-00 |
from US $1.57 |
||
| replacement | |||||
|
3
|
3
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
4
|
4
90201-08053-00 Washer, Plate |
90201-08053-00 |
from US $1.70 |
||
|
5
|
5
8ET-24766-00-00 Reinforcement |
8ET-24766-00-00 |
from US $233.49 |
||
| replacement | |||||
|
5
|
5
8ET-24766-01-00 Reinforcement |
8ET-24766-01-00 |
from US $233.49 |
||
|
6
|
6
95702-08300-00 Nut, Flange |
95702-08300-00 |
from US $1.57 |
||
| replacement | |||||
|
6
|
6
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
7
|
7
90201-08053-00 Washer, Plate |
90201-08053-00 |
from US $1.70 |
||
|
8
|
8
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
9
|
9
8FA-24768-00-00 Stopper |
8FA-24768-00-00 |
from US $2.83 |
||
|
10
|
10
8ET-84717-00-00 Cord, Taillight |
8ET-84717-00-00 |
from US $35.70 |
||
|
11
|
11
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
11
|
11
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
12
|
12
8ET-24756-00-00 Cover, Tail |
8ET-24756-00-00 |
from US $61.34 |
||
| replacement | |||||
|
12
|
12
8ET-24756-01-00 Cover, Tail |
8ET-24756-01-00 |
from US $61.34 |
||
|
13
|
13
8ET-2471K-00-00 Cover, Tail 1 |
8ET-2471K-00-00 |
from US $26.35 |
||
|
14
|
14
8ET-2472K-00-00 Cover, Tail 2 |
8ET-2472K-00-00 |
from US $26.35 |
||
|
15
|
15
97707-50025-00 Screw, Tapping |
97707-50025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
97702-50025-00 Screw, Tapping(2Jg) |
97702-50025-00 |
from US $1.42 |
||
|
16
|
16
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
17
|
17
8ET-24750-00-00 Tandem Seat Assy |
8ET-24750-00-00 |
from US $396.92 |
||
|
18
|
18
8ET-2470H-00-00 Seat Cover Comp. , 2 |
8ET-2470H-00-00 |
from US $205.86 |
||
|
19
|
19
8ET-24598-00-00 Knob |
8ET-24598-00-00 |
from US $17.14 |
||
|
20
|
20
8ET-24790-10-00 Seat Back Assy |
8ET-24790-10-00 |
US $891.54 |
||
|
21
|
21
8DM-24598-00-00 Knob |
8DM-24598-00-00 |
from US $9.78 |
||
| replacement | |||||
|
21
|
21
8DM-24598-01-00 Knob |
8DM-24598-01-00 |
from US $9.78 |
||
|
22
|
22
8DM-24519-00-00 Clip |
8DM-24519-00-00 |
from US $3.40 |
||
|
23
|
23
90338-18122-00 Plug |
90338-18122-00 |
from US $1.70 |
||
|
24
|
24
90387-072Y3-00 Collar |
90387-072Y3-00 |
from US $7.37 |
||
|
25
|
25
8ET-2479K-00-00 Plate, Lock |
8ET-2479K-00-00 |
from US $25.64 |
||
|
26
|
26
8ET-24834-00-00 Bolt |
8ET-24834-00-00 |
from US $1.98 |
||
|
27
|
27
8ET-2474F-00-00 Stay, Front 1 |
8ET-2474F-00-00 |
from US $47.11 |
||
|
28
|
28
8ET-2842M-00-00 Cover 1 |
8ET-2842M-00-00 |
from US $9.92 |
||
|
29
|
29
8ET-2474B-00-00 Assist Grip Warmer Assy 1 |
8ET-2474B-00-00 |
from US $67.70 |
||
| replacement | |||||
|
29
|
29
8GS-2474B-00-00 Assist Grip Warmer Assy 1 |
8GS-2474B-00-00 |
from US $67.70 |
||
|
30
|
30
8ET-24796-00-00 Cover |
8ET-24796-00-00 |
from US $34.29 |
||
|
31
|
31
8ET-2843J-00-00 Cover 3 |
8ET-2843J-00-00 |
from US $23.38 |
||
|
32
|
32
8ET-2474G-00-00 Stay, Front 2 |
8ET-2474G-00-00 |
from US $47.11 |
||
|
33
|
33
8ET-2842N-00-00 Cover 2 |
8ET-2842N-00-00 |
from US $9.92 |
||
|
34
|
34
8ET-2474B-00-00 Assist Grip Warmer Assy 1 |
8ET-2474B-00-00 |
from US $67.70 |
||
| replacement | |||||
|
34
|
34
8GS-2474B-00-00 Assist Grip Warmer Assy 1 |
8GS-2474B-00-00 |
from US $67.70 |
||
|
35
|
35
8ET-24796-00-00 Cover |
8ET-24796-00-00 |
from US $34.29 |
||
|
36
|
36
8ET-2844J-00-00 Cover 4 |
8ET-2844J-00-00 |
from US $23.38 |
||
|
37
|
37
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
37
|
37
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
37
|
37
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
37
|
37
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
38
|
38
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
38
|
38
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
39
|
39
8ET-2476E-00-00 Plate, Guide 2 |
8ET-2476E-00-00 |
from US $55.68 |
||
|
40
|
40
8ET-2477F-00-00 Lever, Seat |
8ET-2477F-00-00 |
from US $59.13 |
||
|
41
|
41
8ET-2478C-00-00 Bar, Seat Lever |
8ET-2478C-00-00 |
from US $72.26 |
||
|
42
|
42
91609-40020-00 Pin,spring |
91609-40020-00 |
US $3.12 |
||
| replacement | |||||
|
42
|
42
91690-40020-00 Pin, Spring |
91690-40020-00 |
from US $3.12 |
||
|
43
|
43
990-01076-00-00
Clip
|
990-01076-00-00 |
— | ||
| replacement | |||||
|
43
|
43
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
|
44
|
44
8ET-24847-00-00 Holder 1 |
8ET-24847-00-00 |
from US $42.28 |
||
|
45
|
45
90151-06036-00 Screw, Countersunk |
90151-06036-00 |
from US $2.13 |
||
|
46
|
46
8ET-24842-00-00 Carrier, Rear |
8ET-24842-00-00 |
from US $69.77 |
||
|
47
|
47
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
47
|
47
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
48
|
48
8ET-82917-00-00 Switch |
8ET-82917-00-00 |
from US $108.59 |
||
|
49
|
49
90338-28242-00 Plug |
90338-28242-00 |
from US $1.21 |
||
|
50
|
50
8ET-26141-00-00 Guard, Brush 1 |
8ET-26141-00-00 |
from US $32.73 |
||
|
51
|
51
8ET-26142-00-00 Guard, Brush 2 |
8ET-26142-00-00 |
from US $32.73 |
||
|
52
|
52
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
53
|
53
95304-06800-00 Nut |
95304-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
53
|
53
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
54
|
54
8ET-24897-00-00 Emblem |
8ET-24897-00-00 |
US $4.52 |
||
|
55
|
55
8FM-24897-01-00 Emblem |
8FM-24897-01-00 |
from US $1.98 |
||
