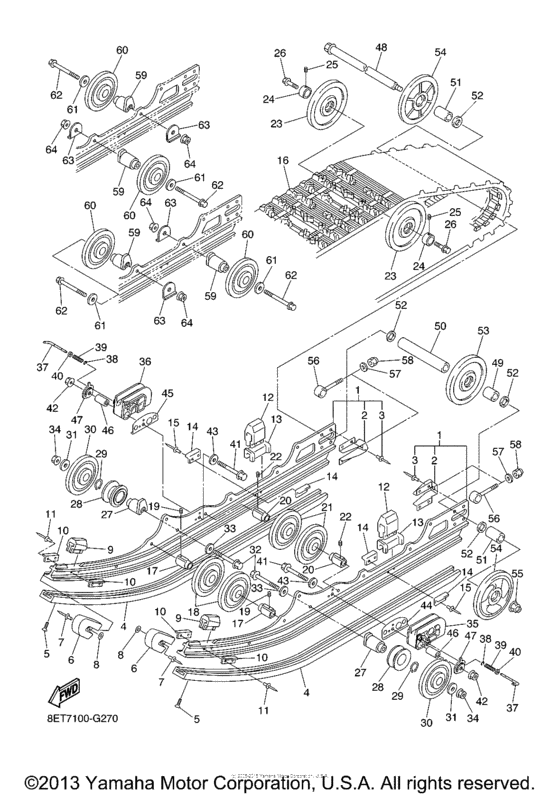

Track suspension (1) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ET-W4741-11-00 Frame, Sliding |
8ET-W4741-11-00 |
from US $251.45 |
||
|
2
|
2
8DM-4741B-00-00 Bracket |
8DM-4741B-00-00 |
from US $18.70 |
||
|
3
|
3
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
4
|
4
8ET-47421-00-00 Runner, sliding162in. HP WID |
8ET-47421-00-00 |
from US $45.87 |
||
| replacements | |||||
|
4
|
4
SMA-8HR92-00-BK Sld Wide Slides 162 P25 Bk162in. HP WID |
SMA-8HR92-00-BK |
US $42.77 |
||
|
4
|
4
SMA-8ET92-00-BK Fx Nytro 162In. Hp Wid162in. HP WID |
SMA-8ET92-00-BK |
US $199.58 |
||
|
5
|
5
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
6
|
6
8ED-47422-00-00 Runner, Sliding 2 |
8ED-47422-00-00 |
from US $35.14 |
||
|
7
|
7
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
8
|
8
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
9
|
9
8ES-47456-00-00 Damper 1 |
8ES-47456-00-00 |
from US $4.11 |
||
|
10
|
10
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
11
|
11
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
12
|
12
8CM-47457-00-00 Damper 2 |
8CM-47457-00-00 |
from US $8.36 |
||
|
13
|
13
8CM-47341-00-00 Spacer |
8CM-47341-00-00 |
from US $6.23 |
||
|
14
|
14
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
15
|
15
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
16
|
16
8ET-47110-10-00 Track Assy |
8ET-47110-10-00 |
from US $2,141.14 |
||
| replacements | |||||
|
16
|
16
8ET-47110-30-00 Track Assy |
8ET-47110-30-00 |
US $2,030.38 |
||
|
16
|
16
SMA-TRACK-90-06 TRACK RIP SAW 15X144 |
SMA-TRACK-90-06 |
US $1,423.78 |
||
|
16
|
16
8ET-47110-11-00 TRACK ASSY |
8ET-47110-11-00 |
from US $2,030.38 |
||
|
17
|
17
8ES-47319-01-00 Collar |
8ES-47319-01-00 |
from US $14.73 |
||
|
18
|
18
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
19
|
19
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
20
|
20
8ES-47319-01-00 Collar |
8ES-47319-01-00 |
from US $14.73 |
||
|
21
|
21
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
22
|
22
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
23
|
23
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
from US $29.16 |
||
|
24
|
24
8ES-47365-00-00 Collar 1 |
8ES-47365-00-00 |
from US $8.36 |
||
|
25
|
25
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
26
|
26
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
26
|
26
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
27
|
27
8ES-47419-10-00 Bracket 7 |
8ES-47419-10-00 |
from US $11.33 |
||
|
28
|
28
8ET-47446-00-00 Hook 1 |
8ET-47446-00-00 |
from US $6.80 |
||
|
29
|
29
990-09354-00-00
Circlip (6U2)
6U2 |
990-09354-00-00 |
— | ||
| replacement | |||||
|
29
|
29
93410-35M10-00 Circlip (6U2)6U2 |
93410-35M10-00 |
from US $4.11 |
||
|
30
|
30
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
31
|
31
90201-104A7-00 Washer, Plate |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
31
|
31
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
32
|
32
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
33
|
33
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.66 |
||
|
34
|
34
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
35
|
35
8ET-47435-10-00 Spring, Outside 1 |
8ET-47435-10-00 |
from US $15.58 |
||
|
36
|
36
8ET-47436-10-00 Spring, Outside 2 |
8ET-47436-10-00 |
from US $15.58 |
||
|
37
|
37
8ET-47449-10-00 Pin 1 |
8ET-47449-10-00 |
from US $12.04 |
||
|
38
|
38
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.56 |
||
| replacement | |||||
|
38
|
38
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
39
|
39
90501-08665-00 Spring, Compression |
90501-08665-00 |
from US $1.98 |
||
|
40
|
40
90387-061Y1-00 Washer, Plate |
90387-061Y1-00 |
US $2.69 |
||
| replacement | |||||
|
40
|
40
90201-06040-00 Washer, Plate |
90201-06040-00 |
from US $2.69 |
||
|
41
|
41
90105-10029-00 Bolt, Flange |
90105-10029-00 |
from US $2.69 |
||
|
42
|
42
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
43
|
43
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.66 |
||
|
44
|
44
8ET-47374-10-00 Washer 1 |
8ET-47374-10-00 |
from US $5.81 |
||
|
45
|
45
8ET-47375-10-00 Washer 2 |
8ET-47375-10-00 |
from US $5.81 |
||
|
46
|
46
90387-106K8-00 Collar |
90387-106K8-00 |
from US $8.93 |
||
|
47
|
47
8ET-47347-00-00 Washer, Lock |
8ET-47347-00-00 |
from US $1.98 |
||
|
48
|
48
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
49
|
49
90387-20015-00 Collar |
90387-20015-00 |
from US $5.81 |
||
|
50
|
50
90387-20016-00 Collar |
90387-20016-00 |
from US $14.03 |
||
|
51
|
51
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
52
|
52
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.50 |
||
|
53
|
53
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
from US $27.99 |
||
|
54
|
54
8EK-47550-10-00 Guide Wheel Assy |
8EK-47550-10-00 |
from US $93.26 |
||
|
55
|
55
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
56
|
56
8DM-47479-00-00 Collar 3 |
8DM-47479-00-00 |
from US $12.04 |
||
|
57
|
57
929-02106-00-00 Washer, Plate |
929-02106-00-00 |
US $1.07 |
||
| replacement | |||||
|
57
|
57
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
58
|
58
95702-10300-00 Nut, Flange |
95702-10300-00 |
from US $2.24 |
||
| replacement | |||||
|
58
|
58
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
59
|
59
8ES-47419-00-00 Bracket 7 |
8ES-47419-00-00 |
from US $11.33 |
||
|
60
|
60
8ET-47310-00-00 Suspension Wheel Assy |
8ET-47310-00-00 |
from US $88.98 |
||
|
61
|
61
90201-104A7-00 Washer, Plate |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
61
|
61
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
62
|
62
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
63
|
63
90214-10003-00 Washer, Claw |
90214-10003-00 |
from US $8.08 |
||
|
64
|
64
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
