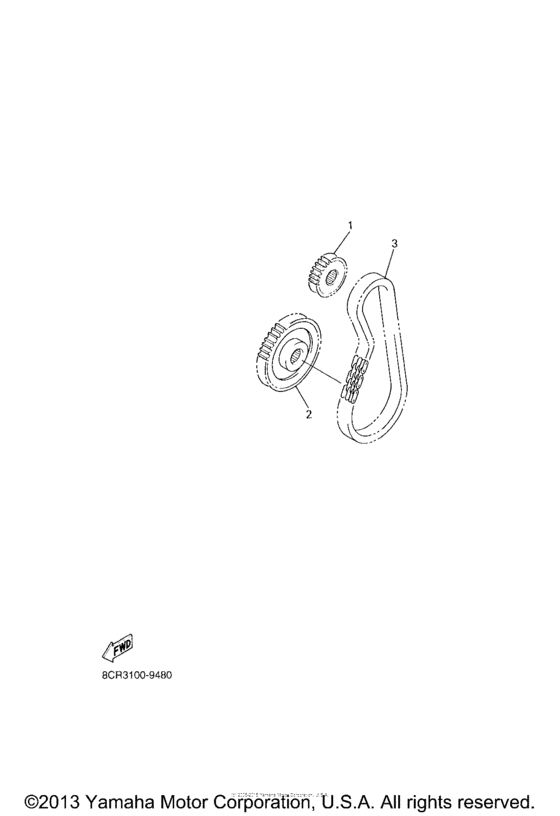

Alternate drive setting (2) Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
948-90090-68-00 Chain (68L)68L UR |
948-90090-68-00 |
from US $133.19 |
||
|
1
|
1
8FA-17682-40-00 Sprocket, Chain Drive (24T)24T UR |
8FA-17682-40-00 |
from US $41.17 |
||
|
2
|
2
8FB-47587-80-00 Sprocket, Chain Driven (38T)38T UR |
8FB-47587-80-00 |
from US $129.04 |
||
|
2
|
2
8FA-17682-90-00 Sprocket, Chain Drive (19T)19T UR |
8FA-17682-90-00 |
from US $41.17 |
||
|
2
|
2
8FA-17682-30-00 Sprocket, Chain Drive (23T)23T UR |
8FA-17682-30-00 |
from US $41.17 |
||
|
2
|
2
8FA-17682-20-00 Sprocket, Chain Drive (22T)22T UR |
8FA-17682-20-00 |
from US $41.17 |
||
|
2
|
2
8FA-17682-00-00 Sprocket, Chain Drive (20T)20T UR |
8FA-17682-00-00 |
from US $41.17 |
||
|
2
|
2
8FA-17682-10-00 Sprocket, Chain Drive (21T)21T UR |
8FA-17682-10-00 |
from US $41.17 |
||
|
3
|
3
948-90090-70-00 Chain (70L)70L UR |
948-90090-70-00 |
from US $133.32 |
||
|
3
|
3
8FB-47587-00-00 Sprocket, Chain Driven (40T)40T UR |
8FB-47587-00-00 |
from US $129.04 |
||
|
3
|
3
8FB-47587-90-00 Sprocket, Chain Driven (39T)39T UR |
8FB-47587-90-00 |
from US $129.04 |
