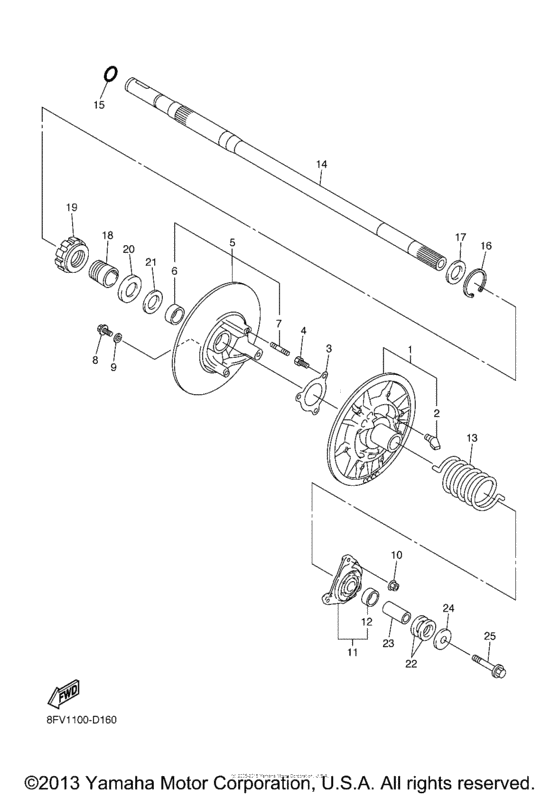

Secondary sheave Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CR-17660-20-00
Secondary Fixed Sheave Comp
|
8CR-17660-20-00 |
— | ||
|
2
|
2
8AV-17688-10-00 Shoe, Ramp |
8AV-17688-10-00 |
from US $20.69 |
||
|
3
|
3
8BV-17656-00-00 Stopper, Holder |
8BV-17656-00-00 |
from US $12.61 |
||
|
4
|
4
90154-06062-00 Screw, Bind |
90154-06062-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
5
|
5
8BU-17670-20-00 Secondary Sliding Sheave |
8BU-17670-20-00 |
from US $266.09 |
||
| replacement | |||||
|
5
|
5
8BU-17670-10-00 Secondary Sliding Sheave |
8BU-17670-10-00 |
from US $288.72 |
||
|
6
|
6
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
7
|
7
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $3.68 |
||
|
8
|
8
90105-06734-00 Bolt, Flange |
90105-06734-00 |
from US $1.70 |
||
|
9
|
9
90201-061H1-00 Washer, Plate (T=0.5)UR UN |
90201-061H1-00 |
from US $2.69 |
||
|
10
|
10
90179-08655-00 Nut |
90179-08655-00 |
from US $2.41 |
||
|
10
|
10
90201-06037-00 Washer, PlateUR UN |
90201-06037-00 |
US $2.13 |
||
| replacement | |||||
|
10
|
10
90201-06431-00 Washer, Plate (371)UR UN |
90201-06431-00 |
from US $2.13 |
||
|
11
|
11
8BV-17604-11-00 Seat Spring Set |
8BV-17604-11-00 |
from US $142.30 |
||
|
12
|
12
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
13
|
13
905-08600-12-00 Spring, Torsion |
905-08600-12-00 |
from US $25.22 |
||
|
14
|
14
8FA-17681-21-00 Shaft, Secondary |
8FA-17681-21-00 |
US $458.12 |
||
|
15
|
15
93210-22164-00 O-Ring |
93210-22164-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.28 |
||
|
16
|
16
93410-30084-00 Circlip |
93410-30084-00 |
from US $4.39 |
||
|
17
|
17
90201-30666-00 Washer, Plate |
90201-30666-00 |
from US $4.11 |
||
|
18
|
18
8FA-17645-10-00 Collar |
8FA-17645-10-00 |
from US $34.29 |
||
|
19
|
19
8FA-17642-00-00 Nut, Bearing |
8FA-17642-00-00 |
from US $65.21 |
||
|
20
|
20
90209-25012-00 Washer |
90209-25012-00 |
from US $11.33 |
||
|
21
|
21
90201-25289-00 Washer, Plate (T=1.6)UN |
90201-25289-00 |
from US $2.55 |
||
|
22
|
22
90201-222F0-00 Washer, Plate (T=0.5)UR UN |
90201-222F0-00 |
from US $1.84 |
||
|
23
|
23
90387-1407L-00 Collar |
90387-1407L-00 |
from US $8.36 |
||
| replacement | |||||
|
23
|
23
903-87140-19-00 Collar |
903-87140-19-00 |
from US $7.08 |
||
|
23
|
23
90201-225A4-00 Washer, Plate (T=1.0)UR UN |
90201-225A4-00 |
from US $1.28 |
||
|
24
|
24
90201-141A3-00 Washer, Plate |
90201-141A3-00 |
from US $3.83 |
||
| replacement | |||||
|
24
|
24
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
25
|
25
90105-14766-00 Bolt, Flange |
90105-14766-00 |
from US $16.86 |
||
