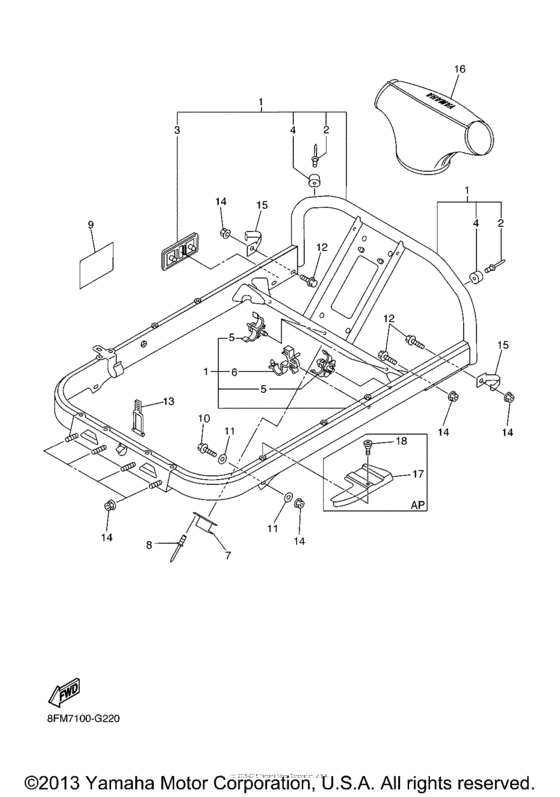

Steering gate Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8GW3
- Engine Capacity
- 1000
- Year
- 2008
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-23870-04-00 Steering Gate Comp |
8ES-23870-04-00 |
from US $456.30 |
||
| replacement | |||||
|
1
|
1
8ES-23870-05-00 Steering Gate Comp |
8ES-23870-05-00 |
from US $456.30 |
||
|
2
|
2
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
3
|
3
8FA-83614-00-00 Bracket |
8FA-83614-00-00 |
from US $2.41 |
||
|
4
|
4
8FA-23858-00-00 Damper |
8FA-23858-00-00 |
from US $2.27 |
||
|
5
|
5
90464-11007-00 Clamp |
90464-11007-00 |
from US $3.68 |
||
|
6
|
6
90464-16006-00 Clamp |
90464-16006-00 |
from US $1.70 |
||
|
7
|
7
8ES-2381C-00-00 Stopper 1 |
8ES-2381C-00-00 |
US $17.39 |
||
|
8
|
8
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)4.7X16.4 YELLOW |
90267-47195-00 |
from US $1.98 |
||
|
9
|
9
8FA-2389C-E0-00 Label, Caution |
8FA-2389C-E0-00 |
US $2.68 |
||
|
10
|
10
901-05081-A7-00 Bolt, Flange |
901-05081-A7-00 |
from US $1.34 |
||
|
11
|
11
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
11
|
11
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
12
|
12
95822-08030-00 Bolt, Flange |
95822-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
13
|
13
8FA-2389E-00-00 Latch |
8FA-2389E-00-00 |
from US $4.53 |
||
|
14
|
14
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
15
|
15
90462-10022-00 Clamp |
90462-10022-00 |
from US $6.80 |
||
|
16
|
16
8FA-23815-00-00 Pad, Steering8ET7 |
8FA-23815-00-00 |
from US $135.26 |
||
|
17
|
17
8ES-14146-00-00 PlateAP |
8ES-14146-00-00 |
from US $68.67 |
||
|
17
|
17
8GW-23815-00-00
Pad, Steering
8GW3 |
8GW-23815-00-00 |
— | ||
|
18
|
18
90150-06015-00 Screw, Round HeadAP |
90150-06015-00 |
from US $5.13 |
||
