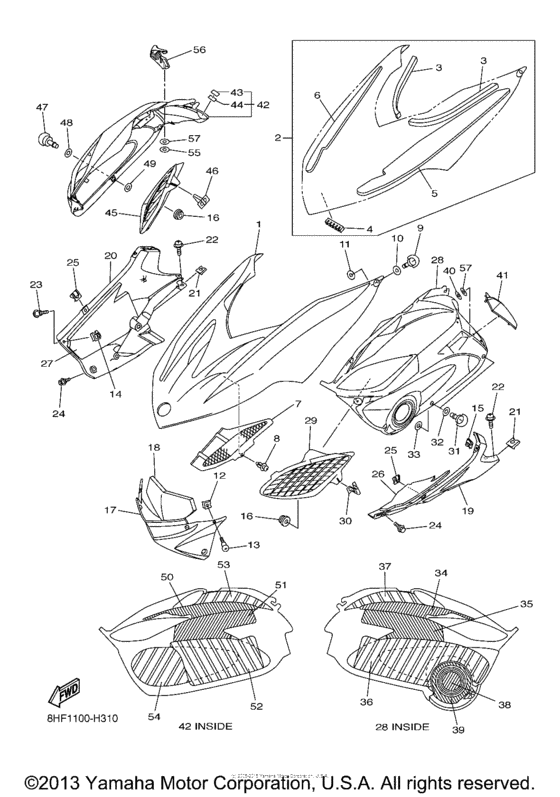

Shroud Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture GT
- Model code
- 8HF1
- Engine Capacity
- 1000
- Year
- 2009
- Sales region
- USA
- Power
- 120 hp
- Model
- RS Venture GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FP-77111-00-P1 ShroudUR FOR DRMK |
8FP-77111-00-P1 |
from US $323.29 |
||
| replacement | |||||
|
1
|
1
8FP-77111-01-P1 UR FOR DRMK |
8FP-77111-01-P1 |
US $443.16 |
||
|
1
|
1
8FP-77111-00-P3 ShroudUR FOR BS4 |
8FP-77111-00-P3 |
US $505.08 |
||
|
2
|
2
8FP-W7726-00-00 Lining Set |
8FP-W7726-00-00 |
from US $15.73 |
||
|
3
|
3
8FP-77165-00-00 Trim 1 |
8FP-77165-00-00 |
from US $3.12 |
||
|
4
|
4
8FP-77123-00-00 Guide 1 |
8FP-77123-00-00 |
from US $1.28 |
||
|
5
|
5
8FP-77271-00-00 Damper, Noise 1111 |
8FP-77271-00-00 |
from US $4.11 |
||
|
6
|
6
8FP-77271-10-00 Damper, Noise 1111 |
8FP-77271-10-00 |
from US $4.11 |
||
|
7
|
7
8FP-77133-00-00 Louver 3 |
8FP-77133-00-00 |
from US $12.04 |
||
|
8
|
8
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
9
|
9
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
10
|
10
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
11
|
11
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
12
|
12
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
12
|
12
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
13
|
13
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
14
|
14
90183-06100-00 Nut, Spring |
90183-06100-00 |
from US $6.23 |
||
|
15
|
15
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
16
|
16
90480-13019-00 Grommet |
90480-13019-00 |
from US $3.40 |
||
|
17
|
17
8FA-21912-00-00 Panel, Sub Frame 1 |
8FA-21912-00-00 |
from US $81.24 |
||
|
18
|
18
8FP-77198-00-00 Damper 1 |
8FP-77198-00-00 |
from US $7.37 |
||
|
19
|
19
8GM-21982-00-00 Hood 1 |
8GM-21982-00-00 |
from US $54.16 |
||
|
20
|
20
8FP-21983-00-00 Hood 2 |
8FP-21983-00-00 |
from US $54.16 |
||
|
21
|
21
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
21
|
21
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
22
|
22
90159-06011-00 Screw, With Washer |
90159-06011-00 |
from US $1.70 |
||
|
23
|
23
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
24
|
24
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
25
|
25
4XV-2177L-01-00 Plate, Spring |
4XV-2177L-01-00 |
from US $7.23 |
||
|
26
|
26
8GM-77278-00-00 Damper, Noise 1818 |
8GM-77278-00-00 |
US $11.36 |
||
|
27
|
27
8FP-77279-00-00 Damper, Noise 1919 |
8FP-77279-00-00 |
from US $8.08 |
||
|
28
|
28
8GM-2197H-01-00 Hood 3 |
8GM-2197H-01-00 |
US $288.38 |
||
|
29
|
29
8FP-77109-00-00 Louver 5 |
8FP-77109-00-00 |
from US $28.19 |
||
|
30
|
30
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
31
|
31
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
32
|
32
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
33
|
33
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
34
|
34
8FP-77272-00-00 Damper, Noise 1212 |
8FP-77272-00-00 |
from US $15.30 |
||
|
35
|
35
8FP-77273-00-00 Damper, Noise 1313 |
8FP-77273-00-00 |
from US $5.38 |
||
|
36
|
36
8GM-77274-00-00 Damper, Noise 1414 |
8GM-77274-00-00 |
US $24.34 |
||
|
37
|
37
8FP-77196-00-00 Damper, Shroud |
8FP-77196-00-00 |
from US $3.97 |
||
|
38
|
38
8GM-77271-00-00 Damper, Noise 1111 |
8GM-77271-00-00 |
US $2.45 |
||
|
39
|
39
8GM-77272-00-00 Damper, Noise 1212 |
8GM-77272-00-00 |
US $4.75 |
||
|
40
|
40
90183-06011-00 Nut, Spring |
90183-06011-00 |
US $2.55 |
||
| replacement | |||||
|
40
|
40
90183-06071-00 Nut, Spring |
90183-06071-00 |
from US $0.95 |
||
|
41
|
41
8HF-77167-00-00 Trim 3 |
8HF-77167-00-00 |
from US $6.66 |
||
|
42
|
42
8HF-2198A-00-00 Hood Assy 4 |
8HF-2198A-00-00 |
from US $138.02 |
||
|
43
|
43
8FR-7717F-00-00 Tape 2 |
8FR-7717F-00-00 |
from US $2.83 |
||
|
44
|
44
8FR-77151-00-00 Pad 1 |
8FR-77151-00-00 |
from US $2.27 |
||
|
45
|
45
8FP-77108-00-00 Louver 6 |
8FP-77108-00-00 |
from US $28.19 |
||
|
46
|
46
90468-06001-00 Clip |
90468-06001-00 |
from US $2.69 |
||
|
47
|
47
3FV-28386-00-00 Head |
3FV-28386-00-00 |
from US $20.84 |
||
|
48
|
48
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $2.13 |
||
|
49
|
49
5TJ-21757-00-00 Washer, Special 1 |
5TJ-21757-00-00 |
from US $1.56 |
||
|
50
|
50
8FP-77275-00-00 Damper, Noise 1515 |
8FP-77275-00-00 |
from US $15.30 |
||
|
51
|
51
8FP-77276-00-00 Damper, Noise 1616 |
8FP-77276-00-00 |
from US $10.63 |
||
| replacement | |||||
|
51
|
51
8FP-77276-01-00 Damper, Noise 1616 |
8FP-77276-01-00 |
from US $10.63 |
||
|
52
|
52
8FP-77277-00-00 Damper, Noise 1717 |
8FP-77277-00-00 |
from US $18.28 |
||
| replacement | |||||
|
52
|
52
8FP-77277-01-00 Damper, Noise 1717 |
8FP-77277-01-00 |
from US $18.28 |
||
|
53
|
53
8FP-77196-10-00 Damper, Shroud |
8FP-77196-10-00 |
from US $3.97 |
||
|
54
|
54
8FP-78316-10-00 Damper |
8FP-78316-10-00 |
from US $5.24 |
||
|
55
|
55
90183-06011-00 Nut, Spring |
90183-06011-00 |
US $2.55 |
||
| replacement | |||||
|
55
|
55
90183-06071-00 Nut, Spring |
90183-06071-00 |
from US $0.95 |
||
|
56
|
56
8HF-77168-00-00 Trim 4 |
8HF-77168-00-00 |
from US $17.23 |
||
|
57
|
57
90202-06058-00 Washer, Plate |
90202-06058-00 |
from US $1.98 |
||
