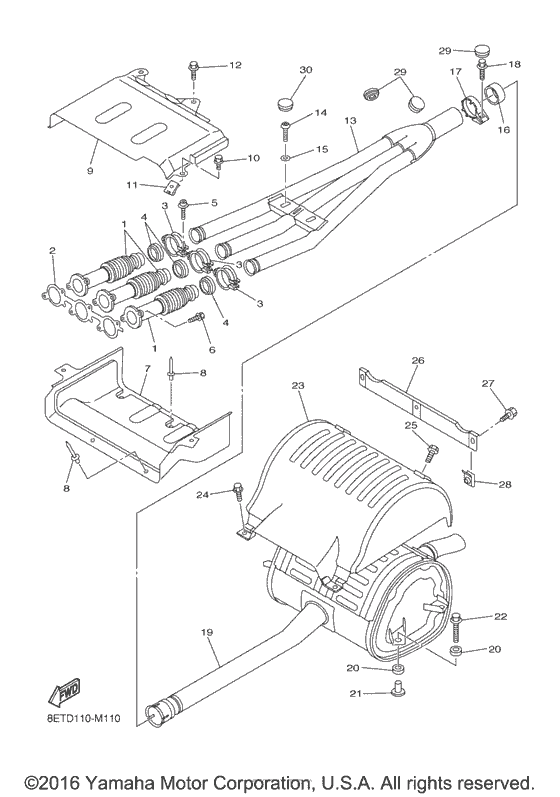

Exhaust Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture
- Model code
- 8ETH
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA
- Model
- RS Venture
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8ES-14615-01-00 Joint, Exhaust 1 |
8ES-14615-01-00 |
from US $120.20 |
||
|
2
|
2
8ES-14613-00-00 Gasket, Exhaust Pipe |
8ES-14613-00-00 |
from US $6.38 |
||
|
3
|
3
8FA-14715-00-00 Band, Muffler |
8FA-14715-00-00 |
from US $18.70 |
||
|
4
|
4
8FA-14623-10-00 Gasket, Exhaust Pipe |
8FA-14623-10-00 |
from US $13.60 |
||
|
5
|
5
90109-06031-00 Bolt |
90109-06031-00 |
from US $1.34 |
||
|
6
|
6
95022-08020-00 Bolt, Flange |
95022-08020-00 |
from US $1.56 |
||
|
7
|
7
8ES-14627-00-00 Cover, Exhaust |
8ES-14627-00-00 |
from US $55.95 |
||
|
8
|
8
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
9
|
9
8ES-14637-00-00 Exhaust Cover Ass'y |
8ES-14637-00-00 |
from US $65.07 |
||
|
10
|
10
95812-06008-00 Bolt, Flange |
95812-06008-00 |
from US $1.56 |
||
|
11
|
11
90183-060A0-00 Nut, Spring |
90183-060A0-00 |
from US $1.98 |
||
|
12
|
12
95812-06016-00 Bolt, Flange |
95812-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
13
|
13
8ES-14610-00-00 Exhaust Pipe Assy 1 |
8ES-14610-00-00 |
from US $164.41 |
||
|
14
|
14
92012-08025-00 Bolt, Button Head |
92012-08025-00 |
from US $1.34 |
||
|
15
|
15
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
16
|
16
8FA-14714-10-00 Gasket, Muffler |
8FA-14714-10-00 |
from US $17.71 |
||
|
17
|
17
8FA-14788-00-00 Band, Silencer |
8FA-14788-00-00 |
from US $11.05 |
||
|
18
|
18
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.34 |
||
|
19
|
19
8ET-14750-00-00 Silencer Assy |
8ET-14750-00-00 |
from US $707.52 |
||
|
20
|
20
8FA-14737-00-00 Damper, Muffler |
8FA-14737-00-00 |
from US $1.42 |
||
|
21
|
21
90387-08071-00 Collar |
90387-08071-00 |
from US $3.83 |
||
|
22
|
22
90119-08112-00 Bolt, With Washer |
90119-08112-00 |
from US $1.98 |
||
|
23
|
23
8ES-14708-10-00 Protector Assy |
8ES-14708-10-00 |
from US $164.41 |
||
|
24
|
24
90119-06179-00 Bolt, With Washer |
90119-06179-00 |
from US $1.70 |
||
|
25
|
25
95812-06008-00 Bolt, Flange |
95812-06008-00 |
from US $1.56 |
||
|
26
|
26
8ES-1478N-00-00 Plate, 8 |
8ES-1478N-00-00 |
from US $4.53 |
||
|
27
|
27
95812-06008-00 Bolt, Flange |
95812-06008-00 |
from US $1.56 |
||
|
28
|
28
90183-060A0-00 Nut, Spring |
90183-060A0-00 |
from US $1.98 |
||
|
29
|
29
90338-20004-00 Plug |
90338-20004-00 |
from US $2.13 |
||
|
30
|
30
90338-20007-00 Plug |
90338-20007-00 |
from US $1.56 |
||
