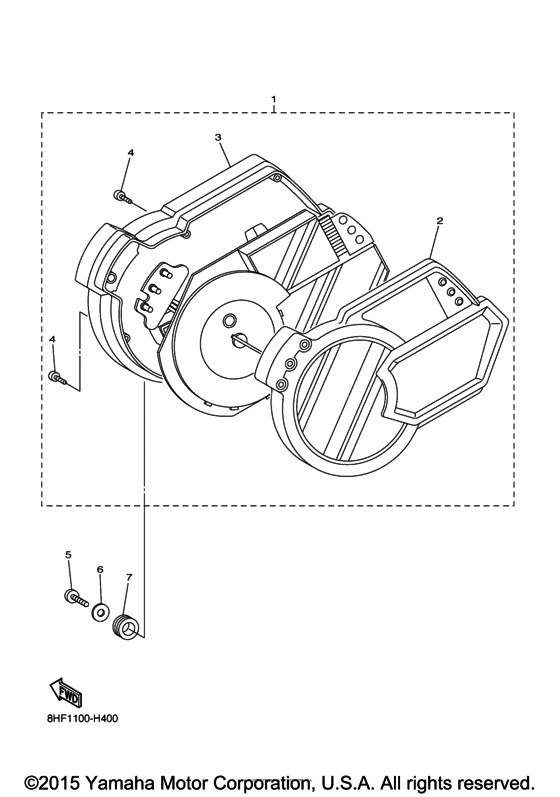

Meter Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture TF
- Model code
- 8JV1
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture TF
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JU-83500-00-00 Meter Assy |
8JU-83500-00-00 |
US $1,059.87 |
||
|
2
|
2
8FP-8353E-00-00 Case, Meter Upper |
8FP-8353E-00-00 |
from US $189.28 |
||
|
3
|
3
8FP-83572-00-00 Case, Speedometer Lower |
8FP-83572-00-00 |
from US $36.61 |
||
|
4
|
4
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.84 |
||
|
5
|
5
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
6
|
6
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
7
|
7
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
