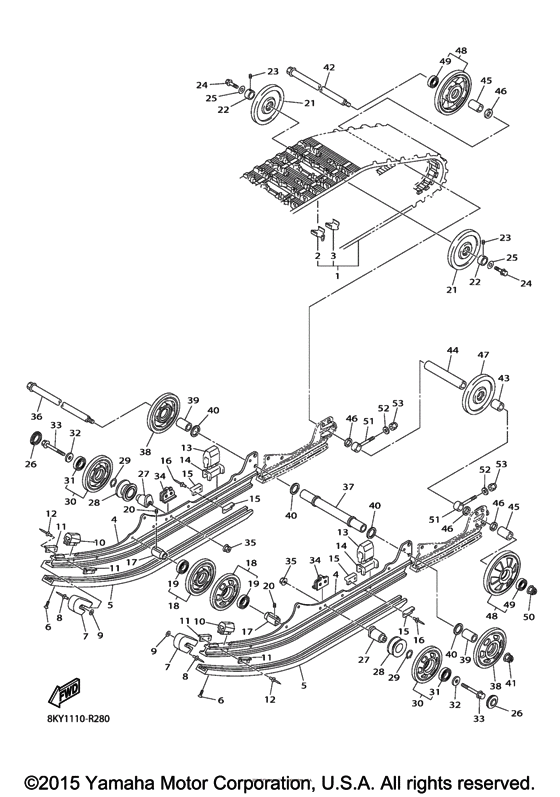

Track suspension 1 Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture TF E-BAT
- Model code
- 8KY1
- Engine Capacity
- 1000
- Year
- 2016
- Sales region
- USA
- Model
- RS Venture TF E-BAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FM-47110-20-00 Track Assy |
8FM-47110-20-00 |
from US $1,808.40 |
||
| replacement | |||||
|
1
|
1
SMA-TRACK-90-07 TRACK RIP SAW 15X151 |
SMA-TRACK-90-07 |
US $1,469.72 |
||
|
2
|
2
8HR-47115-09-00 Metal, Slide |
8HR-47115-09-00 |
from US $8.93 |
||
|
3
|
3
8HR-47113-09-00 Plate, Reinforcement |
8HR-47113-09-00 |
from US $8.64 |
||
|
4
|
4
8FM-4741A-01-00 Frame, Sliding |
8FM-4741A-01-00 |
from US $211.38 |
||
|
5
|
5
8FM-47421-10-00 Runner, Sliding 1 |
8FM-47421-10-00 |
from US $158.88 |
||
| replacement | |||||
|
5
|
5
SMA-DPSSR-00-00 Sld Dupont Slide 144" |
SMA-DPSSR-00-00 |
from US $108.50 |
||
|
6
|
6
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
7
|
7
8ED-47422-00-00 Runner, Sliding 2 |
8ED-47422-00-00 |
from US $35.14 |
||
|
8
|
8
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
9
|
9
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
10
|
10
8ES-47456-00-00 Damper 1 |
8ES-47456-00-00 |
from US $4.11 |
||
|
11
|
11
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
12
|
12
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
13
|
13
8CM-47457-00-00 Damper 2 |
8CM-47457-00-00 |
from US $8.36 |
||
|
14
|
14
8CM-47341-00-00 Spacer |
8CM-47341-00-00 |
from US $6.23 |
||
|
15
|
15
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
16
|
16
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
17
|
17
8ES-47319-01-00 Collar |
8ES-47319-01-00 |
from US $14.73 |
||
|
18
|
18
8HF-47310-10-00 Wheel Blk 130Mm |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
18
|
18
SMA-8FP38-01-BK Suspension Wheel Assy |
SMA-8FP38-01-BK |
US $43.83 |
||
|
19
|
19
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
20
|
20
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
21
|
21
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
from US $29.16 |
||
|
22
|
22
8ES-47365-00-00 Collar 1 |
8ES-47365-00-00 |
from US $8.36 |
||
|
23
|
23
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
24
|
24
90109-10030-00 Bolt |
90109-10030-00 |
from US $4.11 |
||
| replacement | |||||
|
24
|
24
901-09100-32-00 Bolt |
901-09100-32-00 |
from US $4.11 |
||
|
25
|
25
90201-10039-00 Washer, Plate |
90201-10039-00 |
from US $4.82 |
||
|
26
|
26
8HF-47317-00-00 Cap, Wheel |
8HF-47317-00-00 |
from US $8.08 |
||
|
27
|
27
8ES-47419-10-00 Bracket 7 |
8ES-47419-10-00 |
from US $11.33 |
||
|
28
|
28
8ET-47446-00-00 Hook 1 |
8ET-47446-00-00 |
from US $6.80 |
||
|
29
|
29
990-09354-00-00
Circlip (6U2)
|
990-09354-00-00 |
— | ||
| replacement | |||||
|
29
|
29
93410-35M10-00 Circlip (6U2) |
93410-35M10-00 |
from US $4.11 |
||
|
30
|
30
8HF-47310-10-00 Wheel Blk 130Mm |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
30
|
30
SMA-8FP38-01-BK Suspension Wheel Assy |
SMA-8FP38-01-BK |
US $43.83 |
||
|
31
|
31
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
32
|
32
90201-10038-00 Washer, Plate |
90201-10038-00 |
from US $4.53 |
||
|
33
|
33
958-12100-80-00 Bolt, Flange |
958-12100-80-00 |
from US $3.40 |
||
|
34
|
34
8HP-47384-00-00 Washer |
8HP-47384-00-00 |
from US $8.22 |
||
|
35
|
35
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
36
|
36
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
37
|
37
8FM-47469-00-00 Collar 1 |
8FM-47469-00-00 |
from US $19.55 |
||
|
38
|
38
8HP-47310-10-00 Suspension Wheel Assy |
8HP-47310-10-00 |
from US $47.67 |
||
|
39
|
39
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
40
|
40
90201-20022-00 Washer, Plate |
90201-20022-00 |
from US $3.68 |
||
|
41
|
41
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
41
|
41
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
42
|
42
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
43
|
43
90387-20015-00 Collar |
90387-20015-00 |
from US $5.81 |
||
|
44
|
44
90387-20016-00 Collar |
90387-20016-00 |
from US $14.03 |
||
|
45
|
45
903-87200-19-00 Collar |
903-87200-19-00 |
from US $7.08 |
||
|
46
|
46
90201-20022-00 Washer, Plate |
90201-20022-00 |
from US $3.68 |
||
|
47
|
47
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
from US $27.99 |
||
|
48
|
48
8HF-47550-10-00 Guide Wheel Assy |
8HF-47550-10-00 |
from US $72.40 |
||
| replacement | |||||
|
48
|
48
SMA-8HF38-02-BK Whl Spk Rr Axle Guide Wheel Bk |
SMA-8HF38-02-BK |
US $37.87 |
||
|
49
|
49
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
50
|
50
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
50
|
50
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
51
|
51
8DM-47479-00-00 Collar 3 |
8DM-47479-00-00 |
from US $12.04 |
||
|
52
|
52
929-02106-00-00 Washer, Plate |
929-02106-00-00 |
US $1.07 |
||
| replacement | |||||
|
52
|
52
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
53
|
53
95702-10300-00 Nut, Flange |
95702-10300-00 |
from US $2.24 |
||
| replacement | |||||
|
53
|
53
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
