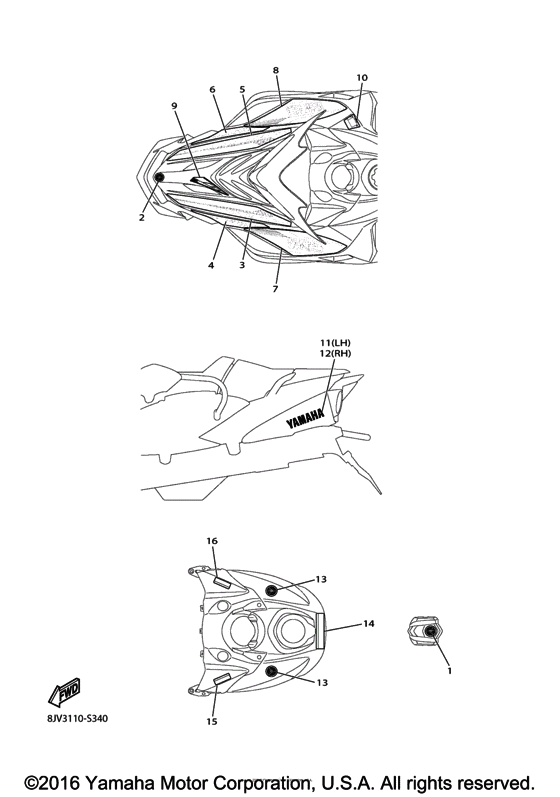

Emblem Diagram Yamaha RS10/RS90/RST90/RSG90 RS Venture TF E-BAT
- Model code
- 8KY2
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA
- Model
- RS Venture TF E-BAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
1
|
1
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
2
|
2
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
2
|
2
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
3
|
3
8JV-7711L-00-00 GRAPHIC, SHROUD |
8JV-7711L-00-00 |
US $82.60 |
||
|
4
|
4
8JU-7711N-00-00 GRAPHIC, SHROUD 3 |
8JU-7711N-00-00 |
US $80.93 |
||
|
5
|
5
8JV-7711M-00-00 GRAPHIC, SHROUD |
8JV-7711M-00-00 |
US $82.60 |
||
|
6
|
6
8JU-7711P-00-00 GRAPHIC, SHROUD 4 |
8JU-7711P-00-00 |
US $80.93 |
||
|
7
|
7
8JU-7711A-00-00 GRAPHIC 1 |
8JU-7711A-00-00 |
US $139.12 |
||
|
8
|
8
8JU-7711B-00-00 GRAPHIC 2 |
8JU-7711B-00-00 |
US $117.16 |
||
|
9
|
9
8HG-7711C-00-00 Graphic 3 |
8HG-7711C-00-00 |
US $32.08 |
||
|
10
|
10
8HF-77763-E0-00 Label, Warning 3 |
8HF-77763-E0-00 |
US $6.66 |
||
|
11
|
11
992-41001-40-00 Emblem, Yamaha |
992-41001-40-00 |
from US $15.73 |
||
|
12
|
12
992-41001-40-00 Emblem, Yamaha |
992-41001-40-00 |
from US $15.73 |
||
|
13
|
13
5PW-2413B-00-00 Emblem |
5PW-2413B-00-00 |
from US $27.34 |
||
|
14
|
14
8HF-77761-E0-00 Label, Warning 1 |
8HF-77761-E0-00 |
US $13.21 |
||
|
15
|
15
8ET-2815K-00-00 Label, Notice Windshield 1 |
8ET-2815K-00-00 |
from US $2.55 |
||
|
16
|
16
8ET-2815K-10-00 Label, Notice Windshield 1 |
8ET-2815K-10-00 |
from US $2.69 |
||
