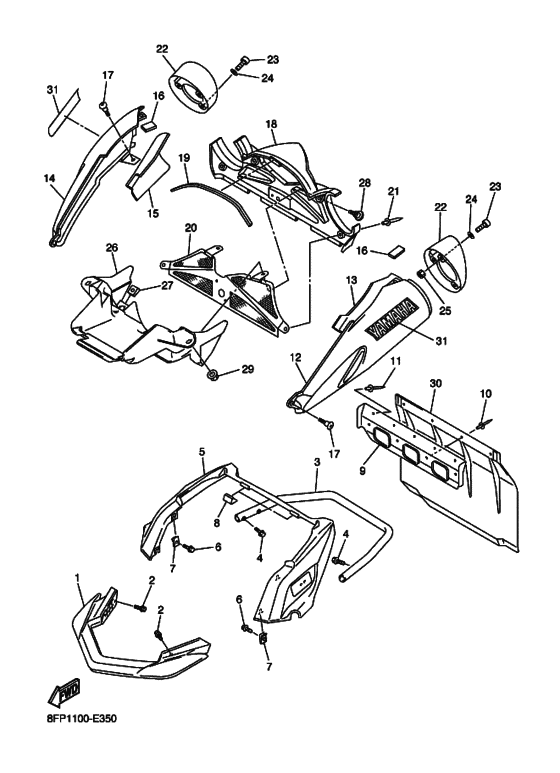

Bumper Diagram Yamaha RX10/RXW10 Apex RTX
- Model code
- 8FP1
- Engine Capacity
- 998
- Year
- 2006
- Sales region
- Europe (020)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
- Power
- 150 hp
- Model
- Apex RTX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77511-01-00 Bumper, Front 1 |
8FA-77511-01-00 |
from US $126 |
||
|
2
|
2
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
8FP-77541-00-00 Bumper, Rear 1 |
8FP-77541-00-00 |
US $217.22 |
||
| replacement | |||||
|
3
|
3
8FP-77541-01-00 Bumper, Rear 1 |
8FP-77541-01-00 |
US $217.22 |
||
|
4
|
4
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
4
|
4
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
5
|
5
8FA-77542-00-00 Bumper, Rear 2 |
8FA-77542-00-00 |
from US $78.20 |
||
|
6
|
6
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
7
|
7
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
7
|
7
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
8
|
8
8FA-7717H-00-00 Tape 4 |
8FA-7717H-00-00 |
from US $1.28 |
||
|
9
|
9
8FU-77596-00-00 Stopper, Flap |
8FU-77596-00-00 |
US $182.47 |
||
|
10
|
10
90267-47200-00 Rivet, Blind (4.7X19.5 Black) |
90267-47200-00 |
from US $1.98 |
||
|
11
|
11
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
12
|
12
8FP-77551-00-P0 Protector 1UR DRMK |
8FP-77551-00-P0 |
from US $88.01 |
||
| replacement | |||||
|
12
|
12
8FP-77551-01-P0 Protector 1UR DRMK |
8FP-77551-01-P0 |
from US $87.73 |
||
|
13
|
13
8FP-77261-00-00 Lining, Shroud 1 |
8FP-77261-00-00 |
from US $16.86 |
||
|
14
|
14
8FP-77552-00-P0 Protector 2UR DRMK |
8FP-77552-00-P0 |
from US $88.01 |
||
| replacement | |||||
|
14
|
14
8FP-77552-01-P0 Protector 2UR DRMK |
8FP-77552-01-P0 |
from US $87.73 |
||
|
15
|
15
8FP-77262-00-00 Lining, Shroud 2 |
8FP-77262-00-00 |
from US $16.86 |
||
|
16
|
16
8FP-77263-00-00 Lining, Shroud 3 |
8FP-77263-00-00 |
from US $1.70 |
||
|
17
|
17
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
18
|
18
8FP-84516-00-00 Cover, Taillight |
8FP-84516-00-00 |
from US $36.47 |
||
| replacement | |||||
|
18
|
18
8FP-84516-01-00 Cover, Taillight |
8FP-84516-01-00 |
from US $36.47 |
||
|
19
|
19
8FP-77234-00-00 Trim 8 |
8FP-77234-00-00 |
from US $6.80 |
||
|
20
|
20
8FP-77441-00-00 Louver 1 |
8FP-77441-00-00 |
from US $63.55 |
||
|
21
|
21
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
22
|
22
8FP-77517-00-00 Cap |
8FP-77517-00-00 |
from US $74.05 |
||
|
23
|
23
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
25
|
25
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
26
|
26
8FP-2117E-00-00 Bracket, Taillight |
8FP-2117E-00-00 |
US $18.94 |
||
| replacement | |||||
|
26
|
26
999-99038-31-00 Bracket, Taillight |
999-99038-31-00 |
US $18.94 |
||
|
27
|
27
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
27
|
27
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
28
|
28
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
29
|
29
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
30
|
30
8ED-K7595-01-00 Flap |
8ED-K7595-01-00 |
US $61.96 |
||
| replacement | |||||
|
30
|
30
8GT-K7595-00-00 Flap |
8GT-K7595-00-00 |
from US $59.26 |
||
|
31
|
31
99244-00140-00 Emblem, Yamaha |
99244-00140-00 |
from US $11.76 |
||
