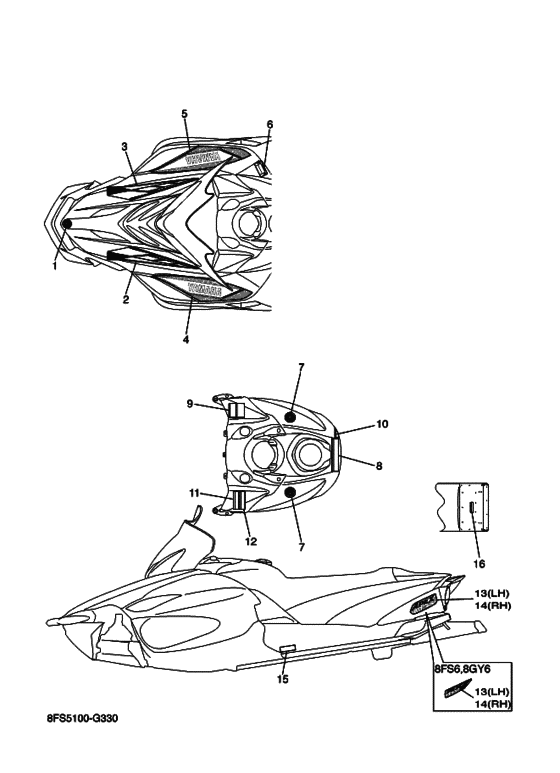

Emblem Diagram Yamaha RX10/RXW10 Apex M-TX
- Model code
- 8FS5
- Engine Capacity
- 998
- Year
- 2008
- Sales region
- Europe (020)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Color Variant
- A
- Power
- 150 hp
- Model
- Apex M-TX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
1
|
1
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
2
|
2
8GV-7711L-00-00 Graphic, Shroud |
8GV-7711L-00-00 |
US $67.32 |
||
|
3
|
3
8GV-7711M-00-00 Graphic, Shroud |
8GV-7711M-00-00 |
US $104.48 |
||
|
4
|
4
8GV-7711A-00-00 Graphic 1 |
8GV-7711A-00-00 |
US $52.15 |
||
|
5
|
5
8GV-7711B-00-00 Graphic 2 |
8GV-7711B-00-00 |
US $70.18 |
||
|
6
|
6
8FR-77763-E0-00 Label, Warning 3 |
8FR-77763-E0-00 |
US $6.21 |
||
|
7
|
7
5PW-2413B-00-00 Emblem |
5PW-2413B-00-00 |
from US $27.34 |
||
|
8
|
8
8FR-77761-E0-00 Label, Warning 1 |
8FR-77761-E0-00 |
US $18.88 |
||
|
9
|
9
8FN-77761-E0-00 Label, Warning 1 |
8FN-77761-E0-00 |
US $30.62 |
||
|
10
|
10
8ED-2191H-E0-00 Label, Warning |
8ED-2191H-E0-00 |
US $10.87 |
||
|
11
|
11
3JJ-2835Y-A0-00 Label, Caution |
3JJ-2835Y-A0-00 |
US $2.65 |
||
|
12
|
12
3JJ-2835Y-B0-00 Label, Caution |
3JJ-2835Y-B0-00 |
US $39.71 |
||
|
13
|
13
8GV-7755A-20-00 Graphic, Protector |
8GV-7755A-20-00 |
US $23.99 |
||
|
14
|
14
8GV-7755A-20-00 Graphic, Protector |
8GV-7755A-20-00 |
US $23.99 |
||
|
15
|
15
8FR-2179D-11-00 Plate, Epa Offroad 2 |
8FR-2179D-11-00 |
US $3.73 |
||
|
16
|
16
8ET-24897-00-00 Emblem |
8ET-24897-00-00 |
US $4.52 |
||
