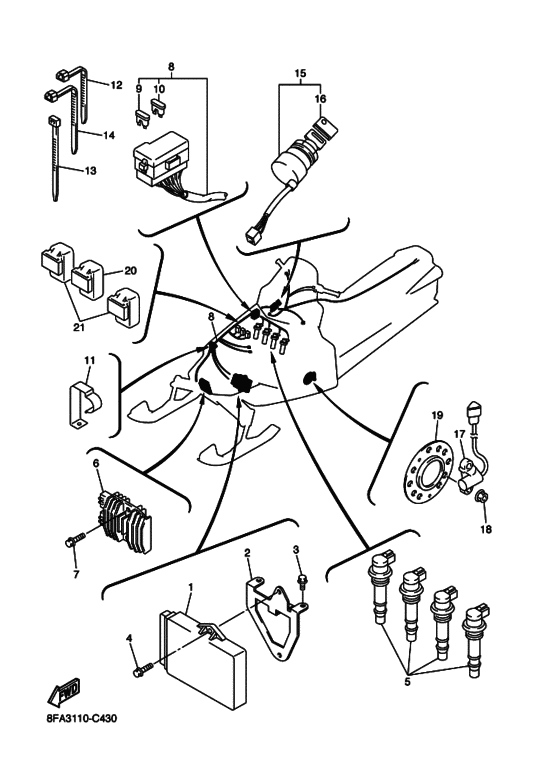

Electrical 1 Diagram Yamaha RX10/RXW10 RX-1 ER
- Model code
- 8FW2
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- Japan (010)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Color Variant
- A
- Power
- 145 hp
- Model
- RX-1 ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FG-85540-00-00 C.d.i. Unit AssyＣ．Ｄ．Ｉ． ＵＮＩＴ ＡＳＳＹ; |
8FG-85540-00-00 |
from US $1,085.11 |
||
|
2
|
2
8FA-85991-00-00 Bracket, UnitＢＲＡＣＫＥＴ， ＵＮＩＴ; |
8FA-85991-00-00 |
from US $12.60 |
||
|
3
|
3
958-27060-10-00
Bolt, Flange(Jn5)
ＢＯＬＴ， ＦＬＡＮＧＥ; |
958-27060-10-00 |
— | ||
| replacement | |||||
|
3
|
3
95817-06010-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-06010-00 |
from US $1.07 |
||
|
4
|
4
95827-06020-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
4
|
4
95817-06020-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-06020-00 |
from US $1.13 |
||
|
5
|
5
8FA-82310-01-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
8FA-82310-01-00 |
from US $139.54 |
||
|
6
|
6
5JW-81960-00-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
5JW-81960-00-00 |
from US $243.38 |
||
|
7
|
7
95807-06025-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
958-17060-25-00
Bolt, Flange
ＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17060-25-00 |
— | ||
|
7
|
7
95822-06025-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95822-06025-00 |
from US $0.99 |
||
|
8
|
8
8FW-82590-00-00 Wire Harness AssyＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ; |
8FW-82590-00-00 |
from US $481.49 |
||
|
9
|
9
5JJ-82151-20-00 Fuse (20A-Bl)．ＦＵＳＥ ; ２０Ａ−ＢＬ |
5JJ-82151-20-00 |
from US $3.54 |
||
|
10
|
10
5JJ-82151-30-00
Fuse (10A-Bl)
．ＦＵＳＥ ; １０Ａ−ＢＬ |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
10
|
10
67F-82151-40-00 Fuse (10A)．ＦＵＳＥ ; １０Ａ−ＢＬ |
67F-82151-40-00 |
from US $1.98 |
||
|
11
|
11
8FA-8255V-00-00 Plate, CoverＰＬＡＴＥ， ＣＯＶＥＲ; |
8FA-8255V-00-00 |
from US $6.23 |
||
|
12
|
12
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
13
|
13
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
13
|
13
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
14
|
14
90464-13077-00 ClampＣＬＡＭＰ; |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
15
|
15
8FA-82510-00-00 Main Switch AssyＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
8FA-82510-00-00 |
from US $71.82 |
||
|
16
|
16
526-82579-00-00 Cap, Key．ＣＡＰ， ＫＥＹ; |
526-82579-00-00 |
from US $4.96 |
||
|
17
|
17
8EK-83755-01-00 Sensor, SpeedＳＥＮＳＯＲ， ＳＰＥＥＤ; |
8EK-83755-01-00 |
from US $103.21 |
||
| replacement | |||||
|
17
|
17
8FP-83755-01-00 Sensor, SpeedＳＥＮＳＯＲ， ＳＰＥＥＤ; |
8FP-83755-01-00 |
from US $103.21 |
||
|
18
|
18
95707-08300-00 Nut, NylonＮＵＴ， ＮＹＬＯＮ; |
95707-08300-00 |
from US $3.02 |
||
| replacement | |||||
|
18
|
18
957-17083-00-00 Nut, FlangeＮＵＴ， ＮＹＬＯＮ; |
957-17083-00-00 |
from US $3.26 |
||
|
19
|
19
8EK-47551-00-00 Housing, Front AxleＨＯＵＳＩＮＧ， ＦＲＯＮＴ ＡＸＬＥ; |
8EK-47551-00-00 |
from US $4.53 |
||
|
20
|
20
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
ＲＥＬＡＹ ＡＳＳＹ; |
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)ＲＥＬＡＹ ＡＳＳＹ; |
5DM-81950-01-00 |
from US $20.12 |
||
|
21
|
21
8DM-81950-00-00 Relay Assy (8Dm-00)ＲＥＬＡＹ ＡＳＳＹ; |
8DM-81950-00-00 |
from US $14.88 |
||
