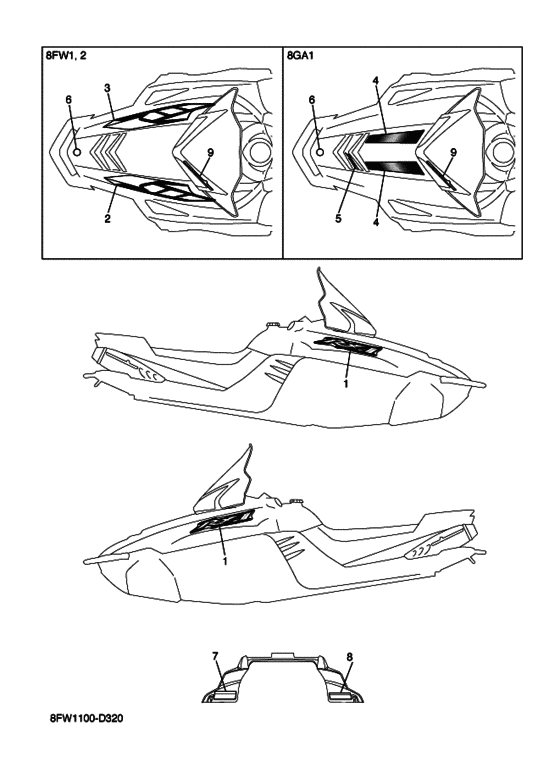

Emblem Diagram Yamaha RX10/RXW10 RX-1 ER
- Model code
- 8FW2
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- Japan (010)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Color Variant
- A
- Power
- 145 hp
- Model
- RX-1 ER
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77141-30-00 Emblem 1ＥＭＢＬＥＭ １; |
8FA-77141-30-00 |
from US $30.29 |
||
|
2
|
2
8FU-7711A-00-00
Graphic 1
ＧＲＡＰＨＩＣ １; |
8FU-7711A-00-00 |
— | ||
|
3
|
3
8FU-7711B-00-00
Graphic 2
ＧＲＡＰＨＩＣ ２; |
8FU-7711B-00-00 |
— | ||
|
6
|
6
8AC-2414B-01-00 EmblemＥＭＢＬＥＭ; |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
6
|
6
GU2-U411H-00-XX Tuning Fork Decal 40MmＥＭＢＬＥＭ; |
GU2-U411H-00-XX |
US $35.04 |
||
|
7
|
7
8EK-77761-S0-00 Label, Warning 1ＬＡＢＥＬ， ＷＡＲＮＩＮＧ １; |
8EK-77761-S0-00 |
US $7.37 |
||
|
8
|
8
8ED-77761-30-00 Label, Warning 1ＬＡＢＥＬ， ＷＡＲＮＩＮＧ １; |
8ED-77761-30-00 |
US $8.64 |
||
|
9
|
9
8FA-77351-00-00 Emblem 1ＥＭＢＬＥＭ １; |
8FA-77351-00-00 |
from US $6.52 |
||
