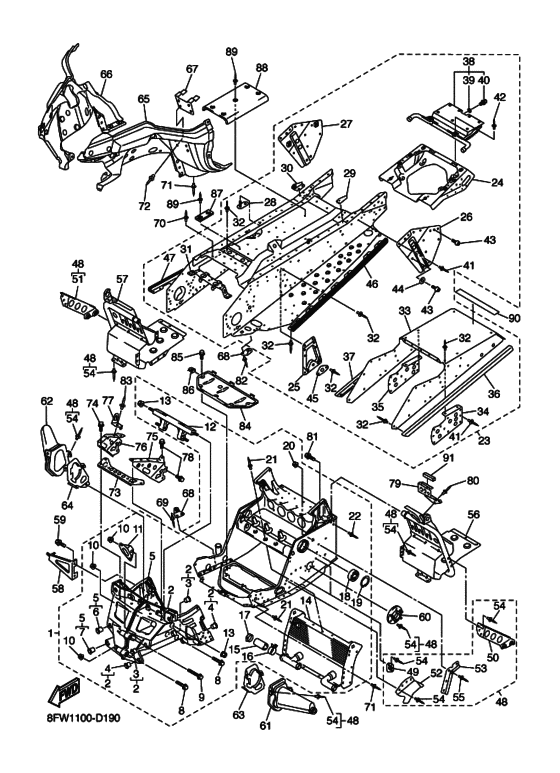

Frame Diagram Yamaha RX10/RXW10 RX-1 ER
- Model code
- 8FW2
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- Japan (010)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Color Variant
- A
- Power
- 145 hp
- Model
- RX-1 ER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EP-21940-01-00 Front Frame CompＦＲＯＮＴ ＦＲＡＭＥ ＣＯＭＰ．; |
8EP-21940-01-00 |
from US $2,442 |
||
| replacement | |||||
|
1
|
1
999-99035-44-00
Front Frame
ＦＲＯＮＴ ＦＲＡＭＥ ＣＯＭＰ．; |
999-99035-44-00 |
— | ||
|
2
|
2
8FA-W2197-00-00 Bulkhead．ＢＵＬＫＨＥＡＤ; |
8FA-W2197-00-00 |
from US $495.13 |
||
| replacement | |||||
|
2
|
2
8FA-W2197-13-00 Bulkhead．ＢＵＬＫＨＥＡＤ; |
8FA-W2197-13-00 |
from US $495.13 |
||
|
3
|
3
90381-15001-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
90381-15001-00 |
from US $2.55 |
||
|
4
|
4
90381-16001-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
4
|
4
903-81160-04-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
903-81160-04-00 |
from US $4.11 |
||
|
5
|
5
8FA-W2198-00-00 Bulkhead 2．ＢＵＬＫＨＥＡＤ ２; |
8FA-W2198-00-00 |
from US $506.04 |
||
| replacements | |||||
|
5
|
5
999-99035-45-00 Bulkhead 2．ＢＵＬＫＨＥＡＤ ２; |
999-99035-45-00 |
from US $506.04 |
||
|
5
|
5
8FA-W2198-15-00 Bulkhead 2．ＢＵＬＫＨＥＡＤ ２; |
8FA-W2198-15-00 |
from US $495.13 |
||
|
5
|
5
8FA-W2198-20-00 Bulkhead 2．ＢＵＬＫＨＥＡＤ ２; |
8FA-W2198-20-00 |
US $509.63 |
||
|
6
|
6
90381-15001-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
90381-15001-00 |
from US $2.55 |
||
|
7
|
7
90381-16001-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
90381-16001-00 |
from US $4.25 |
||
| replacement | |||||
|
7
|
7
903-81160-04-00 Bush, Solid．．ＢＵＳＨ， ＳＯＬＩＤ; |
903-81160-04-00 |
from US $4.11 |
||
|
8
|
8
95827-08060-00 Bolt, Flange．ＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08060-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17080-60-00 Bolt, Flange．ＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17080-60-00 |
from US $1.07 |
||
|
9
|
9
95827-08065-00 Bolt, Flange．ＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
9
|
9
90105-084A1-00 Bolt, Flange．ＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-084A1-00 |
from US $5.10 |
||
|
9
|
9
90105-08721-00 Bolt, Washer Based(4Jg)．ＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-08721-00 |
from US $4.79 |
||
|
10
|
10
95607-08200-00 Nut, Self-Locking．ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking．ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
8FA-2128A-00-00 Bracket, Regulator．ＢＲＡＣＫＥＴ， ＲＥＧＵＬＡＴＯＲ; |
8FA-2128A-00-00 |
from US $6.23 |
||
| replacement | |||||
|
11
|
11
8FA-2128A-01-00 Bracket, Regulator．ＢＲＡＣＫＥＴ， ＲＥＧＵＬＡＴＯＲ; |
8FA-2128A-01-00 |
from US $6.23 |
||
|
12
|
12
8FG-21947-00-00 Bracket, Steering 1．ＢＲＡＣＫＥＴ， ＳＴＥＥＲＩＮＧ １; |
8FG-21947-00-00 |
from US $146.45 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange．ＮＵＴ， Ｕ ＦＬＡＮＧＥ; |
956-07102-00-00 |
from US $5.67 |
||
|
14
|
14
8EP-12440-00-00 Heat Exchanger Assy．ＨＥＡＴ ＥＸＣＨＡＮＧＥＲ ＡＳＳＹ; |
8EP-12440-00-00 |
from US $333.12 |
||
|
15
|
15
8FA-12551-00-00 Hose 7．ＨＯＳＥ ７; |
8FA-12551-00-00 |
from US $3.97 |
||
|
16
|
16
90467-28046-00 Clip (8M6)．ＣＬＩＰ; |
90467-28046-00 |
from US $3.54 |
||
|
17
|
17
904-50350-01-00 Hose Clamp Assy．ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
904-50350-01-00 |
from US $5.24 |
||
|
18
|
18
93306-20650-00 Bearing．ＢＥＡＲＩＮＧ; |
93306-20650-00 |
from US $44.21 |
||
|
19
|
19
99009-62500-00 Circlip．ＣＩＲＣＬＩＰ; |
99009-62500-00 |
from US $1.98 |
||
|
20
|
20
95607-08200-00 Nut, Self-Locking．ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
20
|
20
901-85081-69-00 Nut, Self-Locking．ＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.13 |
||
|
21
|
21
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47195-00 |
from US $1.98 |
||
|
22
|
22
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48016-00 |
from US $1.84 |
||
|
23
|
23
8FW-21950-00-00 Rear Frame CompＲＥＡＲ ＦＲＡＭＥ ＣＯＭＰ．; |
8FW-21950-00-00 |
US $2,252.84 |
||
| replacement | |||||
|
23
|
23
999-99035-33-00 FRONT LOWER ARM COMPＲＥＡＲ ＦＲＡＭＥ ＣＯＭＰ．; |
999-99035-33-00 |
US $2,252.84 |
||
|
24
|
24
8FA-W2199-01-00 Reinforcement, Frame Rear 1．ＲＥＩＮＥＦＯＲＣＥＭＥＮＴ， ＦＲＡＭＥ ＲＥＡＲ １; |
8FA-W2199-01-00 |
from US $437.84 |
||
| replacement | |||||
|
24
|
24
8FA-W2199-10-00 Reineforcement, Frame Rear 1．ＲＥＩＮＥＦＯＲＣＥＭＥＮＴ， ＦＲＡＭＥ ＲＥＡＲ １; |
8FA-W2199-10-00 |
from US $422.84 |
||
|
25
|
25
8FK-21943-00-00 Bracket, Main Track 1．ＢＲＡＣＫＥＴ， ＭＡＩＮ ＴＲＡＣＫ １; |
8FK-21943-00-00 |
from US $11.27 |
||
| replacement | |||||
|
25
|
25
8FK-21943-01-00 Bracket, Main Track 1．ＢＲＡＣＫＥＴ， ＭＡＩＮ ＴＲＡＣＫ １; |
8FK-21943-01-00 |
from US $11.27 |
||
|
26
|
26
8FK-21944-00-00 Bracket, Rr.track Suspention 1．ＢＲＡＣＫＥＴ， ＲＲ．ＴＲＡＣＫ ＳＵＳＰＥＮＴＩＯＮ; |
8FK-21944-00-00 |
from US $64.66 |
||
|
27
|
27
8FK-21954-00-00 Bracket, Rr.track Suspention 2．ＢＲＡＣＫＥＴ， ＲＲ．ＴＲＡＣＫ ＳＵＳＰＥＮＴＩＯＮ; |
8FK-21954-00-00 |
from US $64.66 |
||
|
28
|
28
8CR-2194N-00-00 Bracket, Fuel Tank 1．ＢＲＡＣＫＥＴ， ＦＵＥＬ ＴＡＮＫ １; |
8CR-2194N-00-00 |
from US $2.41 |
||
|
29
|
29
8FA-2194X-00-00 Bracket 1．ＢＲＡＣＫＥＴ １; |
8FA-2194X-00-00 |
from US $1.98 |
||
|
30
|
30
8FA-2195X-00-00 Bracket 2．ＢＲＡＣＫＥＴ ２; |
8FA-2195X-00-00 |
from US $1.98 |
||
|
31
|
31
8FA-2194H-01-00 Protector, Muffler．ＰＲＯＴＥＣＴＯＲ， ＭＵＦＦＬＥＲ; |
8FA-2194H-01-00 |
from US $43.80 |
||
|
32
|
32
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)．ＲＩＶＥＴ， ＢＬＩＮＤ; ＱＴＹ：１３０ |
90267-47195-00 |
from US $1.98 |
||
|
33
|
33
8FW-21916-00-00 Panel, Sub Frame 5．ＰＡＮＥＬ， ＳＵＢ ＦＲＡＭＥ ５; |
8FW-21916-00-00 |
from US $194.81 |
||
|
34
|
34
8EP-21963-00-00 Patch 3．ＰＡＴＣＨ ３; |
8EP-21963-00-00 |
from US $11.62 |
||
|
35
|
35
8EP-21964-00-00 Patch 4．ＰＡＴＣＨ ４; |
8EP-21964-00-00 |
from US $11.62 |
||
|
36
|
36
8FK-2111J-00-00 Member, Side 1．ＭＥＭＢＥＲ， ＳＩＤＥ １; |
8FK-2111J-00-00 |
from US $83.03 |
||
|
37
|
37
8FK-2111K-00-00 Member, Side 2．ＭＥＭＢＥＲ， ＳＩＤＥ ２; |
8FK-2111K-00-00 |
from US $83.03 |
||
|
38
|
38
8FW-1241A-00-00 Heat Exchanger Assy 4．ＨＥＡＴ ＥＸＣＨＡＮＧＥＲ ＡＳＳＹ ４; |
8FW-1241A-00-00 |
US $687.15 |
||
|
39
|
39
90210-06006-00 Washer, Seal．．ＷＡＳＨＥＲ， ＳＥＡＬ; |
90210-06006-00 |
from US $1.98 |
||
|
40
|
40
958-17060-12-00 Bolt, Flange．．ＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17060-12-00 |
from US $1.07 |
||
|
41
|
41
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47197-00 |
from US $1.98 |
||
|
42
|
42
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48095-00 |
from US $1.98 |
||
|
43
|
43
92017-10020-00 Bolt, Button Head．ＢＯＬＴ， ＢＵＴＴＯＮ ＨＥＡＤ; |
92017-10020-00 |
from US $2.13 |
||
|
44
|
44
90201-104A7-00 Washer, Plate．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-104A7-00 |
from US $3.74 |
||
| replacement | |||||
|
44
|
44
90201-105H3-00 Washer, Plate．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-105H3-00 |
from US $4.11 |
||
|
45
|
45
8FK-21953-00-00 Bracket, Main Track 2．ＢＲＡＣＫＥＴ， ＭＡＩＮ ＴＲＡＣＫ ２; |
8FK-21953-00-00 |
from US $7.23 |
||
|
46
|
46
8FU-21926-00-00 Reinforcement, Footrest 1．ＲＥＩＮＦＯＲＣＥＭＥＮＴ， ＦＯＯＴＲＥＳＴ １; |
8FU-21926-00-00 |
from US $154.74 |
||
|
47
|
47
8FU-21936-00-00 Reinforcement, Footrest 2．ＲＥＩＮＦＯＲＣＥＭＥＮＴ， ＦＯＯＴＲＥＳＴ ２; |
8FU-21936-00-00 |
from US $154.74 |
||
|
48
|
48
8FK-W2195-00-00 Frame Connection KitＦＲＡＭＥ ＣＯＮＮＥＣＴＩＯＮ ＫＩＴ; |
8FK-W2195-00-00 |
from US $114.80 |
||
|
49
|
49
8CR-21939-01-00 Bracket, Chain Housing．ＢＲＡＣＫＥＴ， ＣＨＡＩＮ ＨＯＵＳＩＮＧ; |
8CR-21939-01-00 |
from US $4.39 |
||
|
50
|
50
8FU-2196M-00-00 Bracket, 5．ＢＲＡＣＫＥＴ， ５; |
8FU-2196M-00-00 |
from US $10.48 |
||
|
51
|
51
8FU-2197M-00-00 Bracket, 6．ＢＲＡＣＫＥＴ， ６; |
8FU-2197M-00-00 |
from US $10.48 |
||
|
52
|
52
8FU-2198G-00-00 Cover 2．ＣＯＶＥＲ ２; |
8FU-2198G-00-00 |
from US $14.31 |
||
|
53
|
53
8FA-21999-00-00 Clamp, Wire Harness．ＣＬＡＭＰ， ＷＩＲＥＨＡＲＮＥＳＳ; |
8FA-21999-00-00 |
from US $3.40 |
||
|
54
|
54
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47195-00 |
from US $1.98 |
||
|
55
|
55
90267-48018-00 Rivet, Blind (4.8X18.6 Black)．ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48018-00 |
from US $1.28 |
||
|
56
|
56
8FU-21960-00-00 Footrest Comp. 1ＦＯＯＴＲＥＳＴ ＣＯＭＰ． １; |
8FU-21960-00-00 |
from US $151.98 |
||
| replacement | |||||
|
56
|
56
8FU-21960-01-00 Footrest Comp. 1ＦＯＯＴＲＥＳＴ ＣＯＭＰ． １; |
8FU-21960-01-00 |
from US $151.98 |
||
|
57
|
57
8FU-21970-00-00 Footrest Comp. 2ＦＯＯＴＲＥＳＴ ＣＯＭＰ． ２; |
8FU-21970-00-00 |
from US $151.98 |
||
| replacement | |||||
|
57
|
57
8FU-21970-01-00 Footrest Comp. 2ＦＯＯＴＲＥＳＴ ＣＯＭＰ． ２; |
8FU-21970-01-00 |
from US $151.98 |
||
|
58
|
58
8FA-2193E-00-00 Bracket, Oil Tank 1ＢＲＡＣＫＥＴ， ＯＩＬ ＴＡＮＫ １; |
8FA-2193E-00-00 |
from US $17.71 |
||
|
59
|
59
95827-08014-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
59
|
59
958-17080-14-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17080-14-00 |
from US $1.36 |
||
|
60
|
60
8EK-21920-01-00 Housing, Reinf Sub-Assy (L.h)ＨＯＵＳＩＮＧ， ＲＥＩＮＦ ＳＵＢ−ＡＳＳＹ; Ｌ．Ｈ |
8EK-21920-01-00 |
from US $10.48 |
||
|
61
|
61
8FU-2198F-00-00 Cover 1ＣＯＶＥＲ １; |
8FU-2198F-00-00 |
from US $17.71 |
||
| replacement | |||||
|
61
|
61
8FU-2198F-01-00 Cover 1ＣＯＶＥＲ １; |
8FU-2198F-01-00 |
from US $17.71 |
||
|
62
|
62
8FU-2198J-00-00 Cover 3ＣＯＶＥＲ ３; |
8FU-2198J-00-00 |
from US $17.71 |
||
| replacement | |||||
|
62
|
62
8FU-2198J-01-00 Cover 3ＣＯＶＥＲ ３; |
8FU-2198J-01-00 |
from US $17.71 |
||
|
63
|
63
8FU-2195E-00-00 Plate, Strg Bracket 1ＰＬＡＴＥ， ＳＴＲＧ ＢＲＡＣＫＥＴ １; |
8FU-2195E-00-00 |
from US $8.36 |
||
| replacement | |||||
|
63
|
63
8FU-2195E-01-00 Plate, Steering Bracket 1ＰＬＡＴＥ， ＳＴＲＧ ＢＲＡＣＫＥＴ １; |
8FU-2195E-01-00 |
from US $8.36 |
||
|
64
|
64
8FU-2195F-00-00 Plate, Strg Bracket 2ＰＬＡＴＥ， ＳＴＲＧ ＢＲＡＣＫＥＴ ２; |
8FU-2195F-00-00 |
from US $8.36 |
||
| replacement | |||||
|
64
|
64
8FU-2195F-01-00 Plate, Steering Bracket 2ＰＬＡＴＥ， ＳＴＲＧ ＢＲＡＣＫＥＴ ２; |
8FU-2195F-01-00 |
from US $8.36 |
||
|
65
|
65
8EP-2196A-00-00 Frame Under 1ＦＲＡＭＥ ＵＮＤＥＲ １; |
8EP-2196A-00-00 |
from US $28.49 |
||
|
66
|
66
8EP-2196E-00-00 Frame, Under 2ＦＲＡＭＥ， ＵＮＤＥＲ ２; |
8EP-2196E-00-00 |
from US $46.42 |
||
| replacement | |||||
|
66
|
66
8EP-2196E-01-00 Under Frame 2ＦＲＡＭＥ， ＵＮＤＥＲ ２; |
8EP-2196E-01-00 |
from US $35.55 |
||
|
67
|
67
8FA-21972-00-00 Bracket, Guard FittingＢＲＡＣＫＥＴ， ＧＵＡＲＤ ＦＩＴＴＩＮＧ; |
8FA-21972-00-00 |
from US $4.11 |
||
| replacement | |||||
|
67
|
67
8FA-21972-01-00 Bracket, Guard FittingＢＲＡＣＫＥＴ， ＧＵＡＲＤ ＦＩＴＴＩＮＧ; |
8FA-21972-01-00 |
from US $4.11 |
||
|
68
|
68
8FA-2196F-00-00 Bracket 3ＢＲＡＣＫＥＴ ３; |
8FA-2196F-00-00 |
from US $2.69 |
||
|
69
|
69
90267-48083-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48083-00 |
from US $2.55 |
||
|
70
|
70
90267-48169-00 Rivet, Blind (4.7X16.4 Black)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
70
|
70
90267-47186-00 Rivet, Blind (4.7X16.4 Black)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47186-00 |
from US $1.35 |
||
|
71
|
71
90267-48018-00 Rivet, Blind (4.8X18.6 Black)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48018-00 |
from US $1.28 |
||
|
72
|
72
90267-47200-00 Rivet, Blind (4.7X19.5 Black)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47200-00 |
from US $1.98 |
||
|
73
|
73
8FA-77512-00-00 Bumper, Front 2ＢＵＭＰＥＲ， ＦＲＯＮＴ ２; |
8FA-77512-00-00 |
from US $25.64 |
||
|
74
|
74
958-27060-12-00
Bolt, Flange
ＢＯＬＴ， ＦＬＡＮＧＥ; |
958-27060-12-00 |
— | ||
| replacement | |||||
|
74
|
74
958-17060-12-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17060-12-00 |
from US $1.07 |
||
|
75
|
75
8FU-21949-00-00 Bracket, FrontＢＲＡＣＫＥＴ， ＦＲＯＮＴ; |
8FU-21949-00-00 |
from US $17.99 |
||
| replacement | |||||
|
75
|
75
8FA-21949-00-00 Bracket, FrontＢＲＡＣＫＥＴ， ＦＲＯＮＴ; |
8FA-21949-00-00 |
from US $17.99 |
||
|
76
|
76
8FU-21959-00-00 Bracket, Front BumperＢＲＡＣＫＥＴ， ＦＲＯＮＴ ＢＵＭＰＥＲ; |
8FU-21959-00-00 |
from US $17.99 |
||
| replacement | |||||
|
76
|
76
8FA-21959-00-00 Bracket, Front BumperＢＲＡＣＫＥＴ， ＦＲＯＮＴ ＢＵＭＰＥＲ; |
8FA-21959-00-00 |
from US $17.99 |
||
|
77
|
77
8FA-77125-00-00 Stay 1ＳＴＡＹ １; |
8FA-77125-00-00 |
from US $2.69 |
||
|
78
|
78
95827-08016-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
78
|
78
901-0508X-15-00
Blt,hex,1/4-20X5/8
ＢＯＬＴ， ＦＬＡＮＧＥ; |
901-0508X-15-00 |
— | ||
|
78
|
78
958-17080-16-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17080-16-00 |
from US $1.07 |
||
|
79
|
79
8FA-21973-00-00 HookＨＯＯＫ; |
8FA-21973-00-00 |
from US $8.08 |
||
|
80
|
80
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47195-00 |
from US $1.98 |
||
|
81
|
81
95827-08020-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
81
|
81
958-17080-20-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17080-20-00 |
from US $0.85 |
||
|
82
|
82
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48095-00 |
from US $1.98 |
||
|
83
|
83
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-47195-00 |
from US $1.98 |
||
|
84
|
84
8FA-2197E-01-00
Protector, Frame Fr
ＰＲＯＴＥＣＴＯＲ， ＦＲＡＭＥ; |
8FA-2197E-01-00 |
— | ||
|
85
|
85
90109-065F3-00 BoltＢＯＬＴ; |
90109-065F3-00 |
from US $1.84 |
||
|
86
|
86
901-83060-53-00
Nut, Spring
ＮＵＴ， ＳＰＲＩＮＧ; |
901-83060-53-00 |
— | ||
| replacement | |||||
|
86
|
86
90183-06069-00 Nut, SpringＮＵＴ， ＳＰＲＩＮＧ; |
90183-06069-00 |
from US $3.54 |
||
|
87
|
87
8FA-21998-00-00 SpacerＳＰＡＣＥＲ; |
8FA-21998-00-00 |
from US $3.12 |
||
|
88
|
88
8FG-23892-00-00 Shield, HeatＳＨＩＥＬＤ， ＨＥＡＴ; |
8FG-23892-00-00 |
from US $35.85 |
||
|
89
|
89
90267-48059-00 Rivet, Blind (4.8X12.3)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48059-00 |
from US $1.70 |
||
|
90
|
90
88Y-77762-00-00
Label, Warning 2
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ２; |
88Y-77762-00-00 |
— | ||
|
91
|
91
8CR-77319-00-00 Damper 1ＤＡＭＰＥＲ １; |
8CR-77319-00-00 |
from US $0.59 |
||
