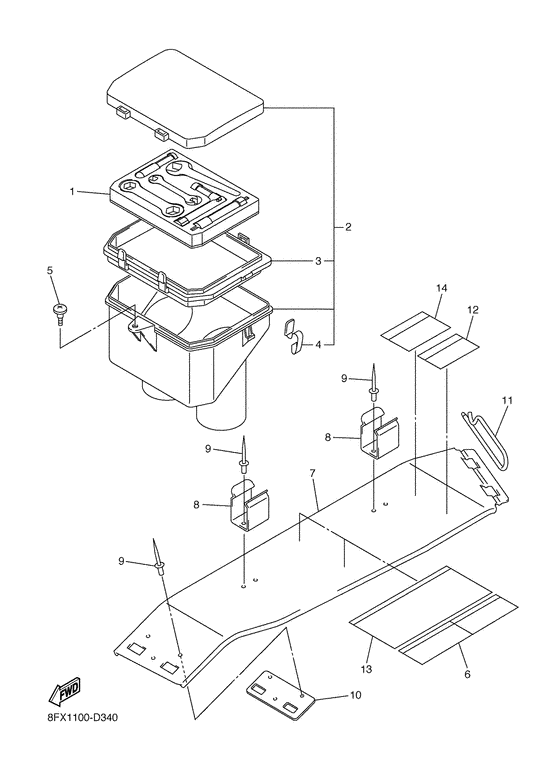

Guard & luggage box Diagram Yamaha RX10/RXW10 RX Warrior
- Model code
- 8FX1
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- USA (030)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Power
- 150 hp
- Model
- RX Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8FA-28100-00-00 Tool Kit |
8FA-28100-00-00 |
from US $139.54 |
||
|
02
|
02
8FA-77390-00-00 Luggage Box Assy |
8FA-77390-00-00 |
from US $80.55 |
||
|
03
|
03
8FA-77381-00-00 Box, Tool |
8FA-77381-00-00 |
from US $13.46 |
||
|
04
|
04
8FA-2814E-00-00 Hook |
8FA-2814E-00-00 |
from US $5.24 |
||
|
05
|
05
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
06
|
06
8EK-47578-20-00 Label 1 |
8EK-47578-20-00 |
from US $2.41 |
||
|
07
|
07
8FA-77311-01-00 Guard, Drive |
8FA-77311-01-00 |
from US $41.72 |
||
| replacement | |||||
|
07
|
07
8FA-77311-02-00 Guard, Drive |
8FA-77311-02-00 |
from US $41.72 |
||
|
08
|
08
8CR-77338-00-00 Stay, Belt |
8CR-77338-00-00 |
from US $4.53 |
||
|
09
|
09
90267-48010-00 Rivet, Blind |
90267-48010-00 |
from US $1.28 |
||
|
10
|
10
8FA-77373-00-00 Protector |
8FA-77373-00-00 |
from US $1.84 |
||
|
11
|
11
8CR-77384-00-00 Pin |
8CR-77384-00-00 |
from US $6.09 |
||
| replacement | |||||
|
11
|
11
8CR-77384-01-00 Pin |
8CR-77384-01-00 |
from US $6.09 |
||
|
12
|
12
8BD-77762-00-00 Label, Warning 2 |
8BD-77762-00-00 |
from US $3.12 |
||
|
13
|
13
8FG-4730A-00-00
Label Suspension 1
|
8FG-4730A-00-00 |
— | ||
|
14
|
14
8FG-4730B-00-00
Label Suspension 2
|
8FG-4730B-00-00 |
— | ||
