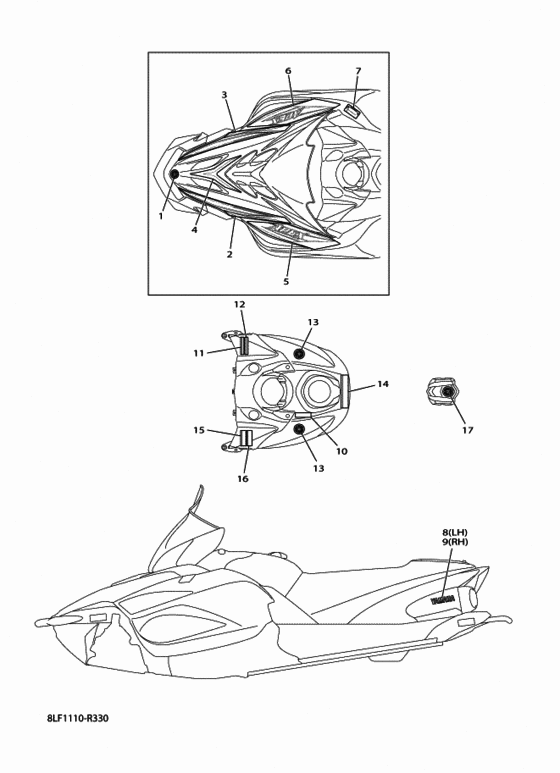

Emblem Diagram Yamaha RX10/RXW10 Apex LE
- Model code
- 8LF1
- Engine Capacity
- 998
- Year
- 2016
- Sales region
- Canada (020)
- Colour
- Mat Silver 1
- Color Variant
- A
- Model
- Apex LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
1
|
1
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
|
2
|
2
8LF-7711L-00-00 Graphic, Shroud |
8LF-7711L-00-00 |
US $58.64 |
||
|
3
|
3
8LF-7711M-00-00 Graphic, Shroud |
8LF-7711M-00-00 |
US $58.64 |
||
|
4
|
4
8LF-7711C-00-00 Graphic 3 |
8LF-7711C-00-00 |
US $53.77 |
||
|
5
|
5
8LF-7711A-00-00 Graphic 1 |
8LF-7711A-00-00 |
US $77.76 |
||
|
6
|
6
8LF-7711B-00-00 Graphic 2 |
8LF-7711B-00-00 |
US $77.76 |
||
|
7
|
7
8FR-77763-E0-00 Label, Warning 3 |
8FR-77763-E0-00 |
US $6.21 |
||
|
8
|
8
99244-00140-00 Emblem, Yamaha |
99244-00140-00 |
from US $11.76 |
||
|
9
|
9
99244-00140-00 Emblem, Yamaha |
99244-00140-00 |
from US $11.76 |
||
|
10
|
10
8GC-2415E-E0-00 Label, Caution |
8GC-2415E-E0-00 |
from US $1.28 |
||
|
11
|
11
8GC-77762-A0-00 Label, Warning 2 |
8GC-77762-A0-00 |
from US $3.12 |
||
|
12
|
12
8GC-77762-B0-00 Label, Warning 2 |
8GC-77762-B0-00 |
from US $3.12 |
||
|
13
|
13
5PW-2413B-00-00 Emblem |
5PW-2413B-00-00 |
from US $27.34 |
||
|
14
|
14
8FR-77761-E0-00 Label, Warning 1 |
8FR-77761-E0-00 |
US $18.88 |
||
|
15
|
15
8ET-2815K-00-00 Label, Notice Windshield 1 |
8ET-2815K-00-00 |
from US $2.55 |
||
|
16
|
16
8ET-2815K-10-00 Label, Notice Windshield 1 |
8ET-2815K-10-00 |
from US $2.69 |
||
|
17
|
17
8AC-2414B-01-00 Emblem |
8AC-2414B-01-00 |
from US $16.86 |
||
| replacement | |||||
|
17
|
17
GU2-U411H-00-XX Tuning Fork Decal 40Mm |
GU2-U411H-00-XX |
US $35.04 |
||
