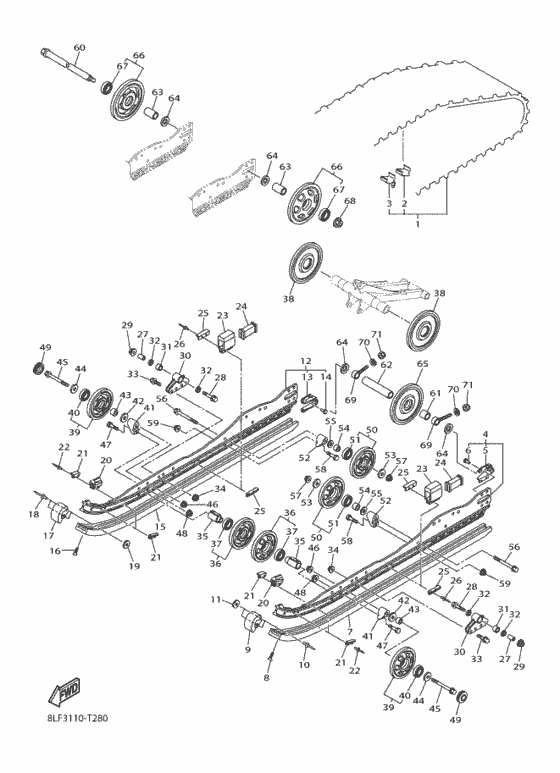

Track suspension 1 Diagram Yamaha RX10/RXW10 Apex LE
- Model code
- 8LF3
- Engine Capacity
- 998
- Year
- 2018
- Sales region
- Canada (020)
- Colour
- Bluish White Pearl 1
- Color Variant
- A
- Model
- Apex LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KM-47110-00-00 Track Assy |
8KM-47110-00-00 |
US $1,956.37 |
||
|
2
|
2
8HR-47113-09-00 Plate, Reinforcement |
8HR-47113-09-00 |
from US $8.64 |
||
|
3
|
3
8HR-47115-09-00 Metal, Slide |
8HR-47115-09-00 |
from US $8.93 |
||
|
4
|
4
8KM-47411-00-00 Frame, Sliding 1 |
8KM-47411-00-00 |
US $497.59 |
||
|
5
|
5
8HX-4741B-00-00 Bracket |
8HX-4741B-00-00 |
from US $18.70 |
||
| replacement | |||||
|
5
|
5
8DM-4741B-00-00 Bracket |
8DM-4741B-00-00 |
from US $18.70 |
||
|
6
|
6
8HX-47468-00-00 Rivet |
8HX-47468-00-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
7
|
7
8JD-47421-01-00 Runner, Sliding 1 |
8JD-47421-01-00 |
from US $40.34 |
||
|
8
|
8
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
9
|
9
8GL-47422-00-00 Runner, Sliding 2 |
8GL-47422-00-00 |
from US $15.16 |
||
|
10
|
10
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
11
|
11
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
12
|
12
8KM-47412-00-00 Frame, Sliding 2 |
8KM-47412-00-00 |
US $497.59 |
||
|
13
|
13
8HX-4741B-00-00 Bracket |
8HX-4741B-00-00 |
from US $18.70 |
||
| replacement | |||||
|
13
|
13
8DM-4741B-00-00 Bracket |
8DM-4741B-00-00 |
from US $18.70 |
||
|
14
|
14
8HX-47468-00-00 Rivet |
8HX-47468-00-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
15
|
15
8JD-47421-01-00 Runner, Sliding 1 |
8JD-47421-01-00 |
from US $40.34 |
||
|
16
|
16
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
17
|
17
8GL-47422-00-00 Runner, Sliding 2 |
8GL-47422-00-00 |
from US $15.16 |
||
|
18
|
18
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
19
|
19
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
20
|
20
8ES-47456-00-00 Damper 1 |
8ES-47456-00-00 |
from US $4.11 |
||
|
21
|
21
8K2-47458-01-00 Plate, Damper |
8K2-47458-01-00 |
from US $4.53 |
||
|
22
|
22
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
23
|
23
8GL-47457-00-00 Damper 2 |
8GL-47457-00-00 |
from US $5.81 |
||
|
24
|
24
8GL-47573-00-00 Spacer |
8GL-47573-00-00 |
from US $4.11 |
||
|
25
|
25
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
26
|
26
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
27
|
27
90387-1012A-00 Collar |
90387-1012A-00 |
from US $7.79 |
||
|
28
|
28
90105-102A6-00 Bolt, Flange |
90105-102A6-00 |
from US $5.81 |
||
| replacements | |||||
|
28
|
28
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
28
|
28
90105-10728-00 Bolt, Flange |
90105-10728-00 |
from US $5.81 |
||
|
29
|
29
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
30
|
30
8KM-47415-00-00 Bracket 1 |
8KM-47415-00-00 |
US $58.97 |
||
|
31
|
31
93315-31758-00 Bearing |
93315-31758-00 |
from US $14.48 |
||
|
32
|
32
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $3.04 |
||
|
33
|
33
95812-10025-00 Bolt, Flange |
95812-10025-00 |
US $1.28 |
||
| replacement | |||||
|
33
|
33
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
34
|
34
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
35
|
35
8ES-47319-10-00 Collar |
8ES-47319-10-00 |
from US $14.73 |
||
|
36
|
36
8HF-47310-10-00 Wheel Blk 130Mm |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
36
|
36
SMA-8FP38-01-BK Suspension Wheel Assy |
SMA-8FP38-01-BK |
US $43.83 |
||
|
37
|
37
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
38
|
38
8CR-47550-00-00 Guide Wheel Assy |
8CR-47550-00-00 |
from US $29.16 |
||
|
39
|
39
8HF-47310-10-00 Wheel Blk 130Mm |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
39
|
39
SMA-8FP38-01-BK Suspension Wheel Assy |
SMA-8FP38-01-BK |
US $43.83 |
||
|
40
|
40
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
41
|
41
8CM-47419-10-00 Bracket 7 |
8CM-47419-10-00 |
from US $23.94 |
||
|
42
|
42
902-01107-14-00 Washer, Plate |
902-01107-14-00 |
from US $5.10 |
||
| replacement | |||||
|
42
|
42
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
|
43
|
43
903-87100-31-00 Collar |
903-87100-31-00 |
from US $9.21 |
||
|
44
|
44
90201-101U2-00 Washer, Plate |
90201-101U2-00 |
from US $6.94 |
||
|
45
|
45
90105-10241-00 Bolt, Flange |
90105-10241-00 |
from US $5.24 |
||
|
46
|
46
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
47
|
47
901-01080-63-00 Bolt |
901-01080-63-00 |
from US $1.42 |
||
|
48
|
48
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
48
|
48
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
49
|
49
8HF-47317-00-00 Cap, Wheel |
8HF-47317-00-00 |
from US $8.08 |
||
|
50
|
50
8HF-47310-10-00 Wheel Blk 130Mm |
8HF-47310-10-00 |
from US $46.27 |
||
| replacement | |||||
|
50
|
50
SMA-8FP38-01-BK Suspension Wheel Assy |
SMA-8FP38-01-BK |
US $43.83 |
||
|
51
|
51
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
52
|
52
8CM-47419-10-00 Bracket 7 |
8CM-47419-10-00 |
from US $23.94 |
||
|
53
|
53
902-01107-14-00 Washer, Plate |
902-01107-14-00 |
from US $5.10 |
||
| replacement | |||||
|
53
|
53
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
|
54
|
54
903-87100-31-00 Collar |
903-87100-31-00 |
from US $9.21 |
||
|
55
|
55
90201-101U2-00 Washer, Plate |
90201-101U2-00 |
from US $6.94 |
||
|
56
|
56
90105-10241-00 Bolt, Flange |
90105-10241-00 |
from US $5.24 |
||
|
57
|
57
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
58
|
58
901-01080-63-00 Bolt |
901-01080-63-00 |
from US $1.42 |
||
|
59
|
59
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
59
|
59
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
60
|
60
8L8-47520-10-00 Rear Axle Comp |
8L8-47520-10-00 |
from US $31.17 |
||
|
61
|
61
90387-20015-00 Collar |
90387-20015-00 |
from US $5.81 |
||
|
62
|
62
90387-20016-00 Collar |
90387-20016-00 |
from US $14.03 |
||
|
63
|
63
90387-20039-00 Collar |
90387-20039-00 |
US $26.95 |
||
|
64
|
64
90201-205R6-00 Washer, Plate |
90201-205R6-00 |
from US $8.50 |
||
|
65
|
65
8CR-47550-10-00 Guide Wheel Assy |
8CR-47550-10-00 |
from US $27.99 |
||
|
66
|
66
8HF-47550-10-00 Guide Wheel Assy |
8HF-47550-10-00 |
from US $72.40 |
||
| replacement | |||||
|
66
|
66
SMA-8HF38-02-BK Whl Spk Rr Axle Guide Wheel Bk |
SMA-8HF38-02-BK |
US $37.87 |
||
|
67
|
67
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
68
|
68
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
68
|
68
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
69
|
69
8DM-47479-00-00 Collar 3 |
8DM-47479-00-00 |
from US $12.04 |
||
|
70
|
70
929-02106-00-00 Washer, Plate |
929-02106-00-00 |
US $1.07 |
||
| replacement | |||||
|
70
|
70
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
71
|
71
95702-10300-00 Nut, Flange |
95702-10300-00 |
from US $2.24 |
||
| replacement | |||||
|
71
|
71
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.36 |
||
