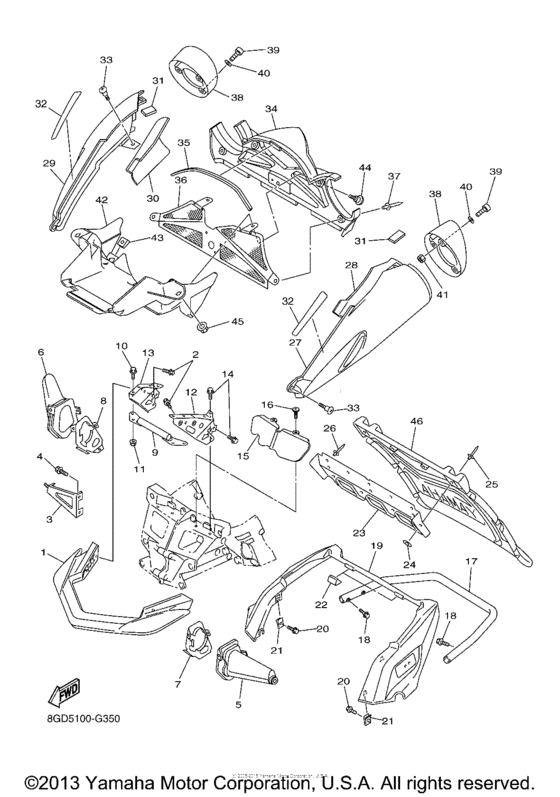

Bumper Diagram Yamaha RX10/RXW10 Apex GT 40-th Anniversary
- Model code
- 8GD7
- Engine Capacity
- 998
- Year
- 2008
- Sales region
- USA
- Power
- 150 hp
- Model
- Apex GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-77511-01-00 Bumper, Front 1 |
8FA-77511-01-00 |
from US $126 |
||
|
2
|
2
95812-08016-00 Bolt, Flange |
95812-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
8ES-2193E-00-00 Bracket, Oil Tank 1 |
8ES-2193E-00-00 |
from US $11.33 |
||
|
4
|
4
95822-08014-00 Bolt, Flange |
95822-08014-00 |
from US $1.56 |
||
|
5
|
5
8FU-2198F-00-00 Cover 1 |
8FU-2198F-00-00 |
from US $17.71 |
||
| replacement | |||||
|
5
|
5
8FU-2198F-01-00 Cover 1 |
8FU-2198F-01-00 |
from US $17.71 |
||
|
6
|
6
8FU-2198J-00-00 Cover 3 |
8FU-2198J-00-00 |
from US $17.71 |
||
| replacement | |||||
|
6
|
6
8FU-2198J-01-00 Cover 3 |
8FU-2198J-01-00 |
from US $17.71 |
||
|
7
|
7
8FU-2195E-01-00 Plate, Steering Bracket 1 |
8FU-2195E-01-00 |
from US $8.36 |
||
|
8
|
8
8FU-2195F-01-00 Plate, Steering Bracket 2 |
8FU-2195F-01-00 |
from US $8.36 |
||
|
9
|
9
8FP-21979-00-00 Bracket, Front Hood |
8FP-21979-00-00 |
from US $38.96 |
||
|
10
|
10
95822-06014-00 Bolt, Flange |
95822-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
11
|
11
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
12
|
12
8FA-21949-00-00 Bracket, Front |
8FA-21949-00-00 |
from US $17.99 |
||
|
13
|
13
8FA-21959-00-00 Bracket, Front Bumper |
8FA-21959-00-00 |
from US $17.99 |
||
|
14
|
14
95822-08016-00 Bolt, Flange |
95822-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
14
|
14
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
14
|
14
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
15
|
15
8FP-22865-00-00 Cover, Front |
8FP-22865-00-00 |
from US $11.90 |
||
|
16
|
16
90150-06015-00 Screw, Round Head |
90150-06015-00 |
from US $5.13 |
||
|
17
|
17
8FP-77541-01-00 Bumper, Rear 1 |
8FP-77541-01-00 |
US $217.22 |
||
|
18
|
18
95822-08020-00 Bolt, Flange |
95822-08020-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
19
|
19
8FA-77542-00-00 Bumper, Rear 2 |
8FA-77542-00-00 |
from US $78.20 |
||
|
20
|
20
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
20
|
20
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
21
|
21
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
21
|
21
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
22
|
22
8FA-7717H-00-00 Tape 4 |
8FA-7717H-00-00 |
from US $1.28 |
||
|
23
|
23
8GH-77596-01-00 Stopper, Flap |
8GH-77596-01-00 |
from US $33.01 |
||
|
24
|
24
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
24
|
24
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
24
|
24
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
25
|
25
90267-47200-00 Rivet, Blind (4.7X19.5 Black)4.7X19.5 BLACK |
90267-47200-00 |
from US $1.98 |
||
|
26
|
26
90267-48095-00 Rivet, Blind (4.8X12.6 Silver)4.8X12.6 SILVER |
90267-48095-00 |
from US $1.98 |
||
|
27
|
27
8FP-77551-00-P5 Protector 1BWC1 |
8FP-77551-00-P5 |
from US $87.73 |
||
| replacement | |||||
|
27
|
27
8FP-77551-01-P5 Protector 1BWC1 |
8FP-77551-01-P5 |
from US $87.73 |
||
|
28
|
28
8FP-77261-00-00 Lining, Shroud 1 |
8FP-77261-00-00 |
from US $16.86 |
||
|
29
|
29
8FP-77552-00-P5 Protector 2BWC1 |
8FP-77552-00-P5 |
from US $87.73 |
||
| replacement | |||||
|
29
|
29
8FP-77552-01-P5 Protector 2BWC1 |
8FP-77552-01-P5 |
from US $87.73 |
||
|
30
|
30
8FP-77262-00-00 Lining, Shroud 2 |
8FP-77262-00-00 |
from US $16.86 |
||
|
31
|
31
8FP-77263-00-00 Lining, Shroud 3 |
8FP-77263-00-00 |
from US $1.70 |
||
|
32
|
32
8FR-77561-00-00 Protector, Side 1 |
8FR-77561-00-00 |
from US $8.22 |
||
|
33
|
33
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
34
|
34
8FP-84516-00-00 Cover, Taillight |
8FP-84516-00-00 |
from US $36.47 |
||
| replacement | |||||
|
34
|
34
8FP-84516-01-00 Cover, Taillight |
8FP-84516-01-00 |
from US $36.47 |
||
|
35
|
35
8FP-77234-00-00 Trim 8 |
8FP-77234-00-00 |
from US $6.80 |
||
|
36
|
36
8FP-77441-00-00 Louver 1 |
8FP-77441-00-00 |
from US $63.55 |
||
|
37
|
37
90267-47187-00 Rivet, Blind (4.7X16.4 Black)4.7X16.4 BLACK |
90267-47187-00 |
from US $1.28 |
||
|
38
|
38
8FP-77517-00-00 Cap |
8FP-77517-00-00 |
from US $74.05 |
||
|
39
|
39
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
40
|
40
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
41
|
41
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
42
|
42
8FP-2117E-00-00 Bracket, Taillight |
8FP-2117E-00-00 |
US $18.94 |
||
| replacement | |||||
|
42
|
42
999-99038-31-00 Bracket, Taillight |
999-99038-31-00 |
US $18.94 |
||
|
43
|
43
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
43
|
43
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
44
|
44
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
45
|
45
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
45
|
45
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
46
|
46
8GT-K7595-00-00 Flap |
8GT-K7595-00-00 |
from US $59.26 |
||
