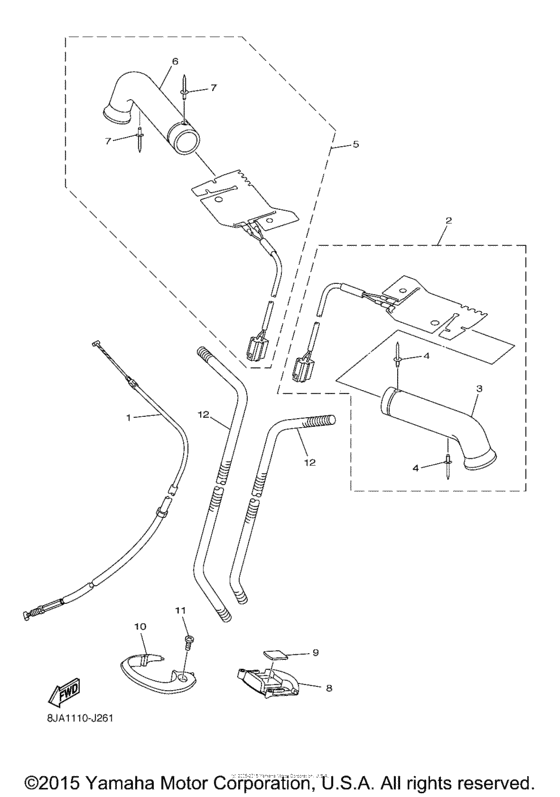

Control cable Diagram Yamaha RX10/RXW10 Apex GT
- Model code
- 8GDA
- Engine Capacity
- 998
- Year
- 2010
- Sales region
- USA
- Power
- 150 hp
- Model
- Apex GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FP-26311-00-00 Cable, Throttle 1 |
8FP-26311-00-00 |
US $66.44 |
||
|
2
|
2
999-99041-70-00 Grip, Warmer Set |
999-99041-70-00 |
from US $81.51 |
||
|
3
|
3
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
4
|
4
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
5
|
5
999-99041-71-00 Grip, Warmer Set |
999-99041-71-00 |
from US $81.51 |
||
|
6
|
6
8HR-26241-01-00 Grip |
8HR-26241-01-00 |
from US $13.88 |
||
|
7
|
7
90267-48014-00 Rivet, Blind4.8X15.1 BLACK |
90267-48014-00 |
from US $1.70 |
||
|
8
|
8
8FP-26144-00-00 Cover, Handlebar Lower 1 |
8FP-26144-00-00 |
from US $37.17 |
||
|
9
|
9
8FP-26113-00-00 Damper |
8FP-26113-00-00 |
from US $1.28 |
||
|
10
|
10
8FP-26146-00-00 Cover, Handlebar Lower 2 |
8FP-26146-00-00 |
from US $25.36 |
||
|
11
|
11
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $1.70 |
||
|
12
|
12
8FP-82351-00-00 Tube, Cord |
8FP-82351-00-00 |
from US $7.23 |
