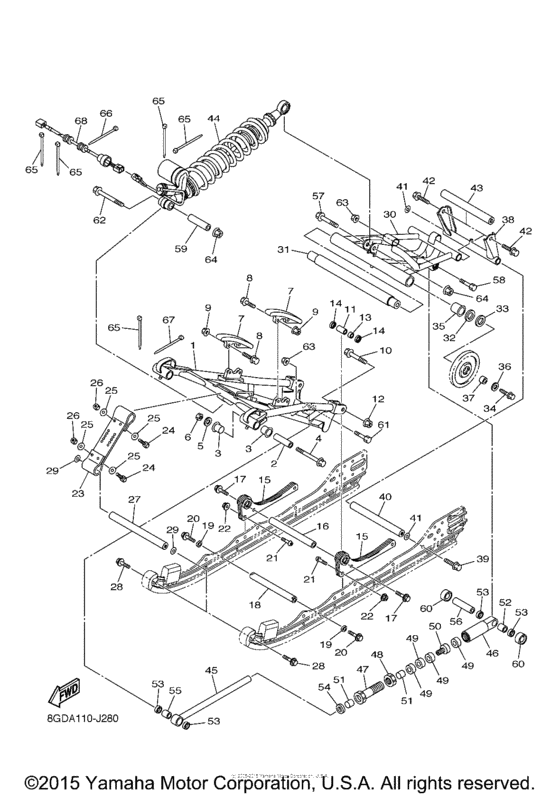

Track suspension (2) Diagram Yamaha RX10/RXW10 Apex GT
- Model code
- 8GDA
- Engine Capacity
- 998
- Year
- 2010
- Sales region
- USA
- Power
- 150 hp
- Model
- Apex GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JA-47331-00-00 Arm, Pivot 1 |
8JA-47331-00-00 |
US $796.73 |
||
|
2
|
2
90387-10042-00 Collar |
90387-10042-00 |
from US $13.88 |
||
|
3
|
3
90386-22002-00 Bush |
90386-22002-00 |
from US $13.60 |
||
|
4
|
4
90105-10150-00 Bolt, Flange |
90105-10150-00 |
from US $5.38 |
||
|
5
|
5
90201-10038-00 Washer, Plate |
90201-10038-00 |
from US $4.53 |
||
|
6
|
6
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.36 |
||
|
7
|
7
8F3-47422-01-00 Runner, Sliding 2 |
8F3-47422-01-00 |
from US $14.03 |
||
|
8
|
8
90105-06164-00 Bolt, Flange |
90105-06164-00 |
from US $1.13 |
||
| replacement | |||||
|
8
|
8
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
9
|
9
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
10
|
10
90105-10090-00 Bolt, Flange |
90105-10090-00 |
from US $3.54 |
||
| replacement | |||||
|
10
|
10
90105-10091-00 Bolt, Flange |
90105-10091-00 |
from US $3.54 |
||
|
11
|
11
903-87100-95-00 Collar |
903-87100-95-00 |
US $21.64 |
||
|
12
|
12
90185-10011-00 Nut, Self-Locking |
90185-10011-00 |
from US $3.04 |
||
|
13
|
13
93315-31750-00 Bearing |
93315-31750-00 |
from US $26.21 |
||
|
14
|
14
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $3.04 |
||
|
15
|
15
8JA-47415-00-00 Bracket 1 |
8JA-47415-00-00 |
US $293.99 |
||
|
16
|
16
8JA-47486-00-00 Shaft 4 |
8JA-47486-00-00 |
US $55.19 |
||
|
17
|
17
90105-10157-00 Bolt, Flange |
90105-10157-00 |
from US $3.97 |
||
| replacement | |||||
|
17
|
17
901-05101-58-00 Bolt, Flange |
901-05101-58-00 |
from US $3.97 |
||
|
18
|
18
8GL-47486-00-00 Shaft 4 |
8GL-47486-00-00 |
from US $41.03 |
||
|
19
|
19
8GL-47341-00-00 Spacer |
8GL-47341-00-00 |
from US $7.37 |
||
|
20
|
20
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
21
|
21
901-11100-45-00 Bolt,hex. Socket But |
901-11100-45-00 |
from US $3.54 |
||
| replacement | |||||
|
21
|
21
901-11100-46-00 Bolt,hex. Socket Button |
901-11100-46-00 |
from US $2.79 |
||
|
22
|
22
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
23
|
23
8GM-47495-00-00 Stopper 1 |
8GM-47495-00-00 |
from US $63.83 |
||
|
24
|
24
97002-06025-00 Bolt |
97002-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
25
|
25
90201-06081-00 Washer, Plate |
90201-06081-00 |
from US $1.15 |
||
|
26
|
26
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
27
|
27
8FU-47485-00-00 Shaft 3 |
8FU-47485-00-00 |
from US $27.49 |
||
|
28
|
28
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
29
|
29
90201-10126-00 Washer, Plate |
90201-10126-00 |
from US $2.69 |
||
| replacement | |||||
|
29
|
29
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
30
|
30
8JA-47332-00-00 Arm, Pivot 2 |
8JA-47332-00-00 |
US $445.43 |
||
| replacement | |||||
|
30
|
30
8JA-47332-01-00 Arm, Pivot 2 |
8JA-47332-01-00 |
US $570.01 |
||
|
31
|
31
8FU-47475-00-00 Shaft 2 |
8FU-47475-00-00 |
from US $66.73 |
||
|
32
|
32
90201-251G8-00 Washer, Plate |
90201-251G8-00 |
from US $3.54 |
||
|
33
|
33
90201-250T6-00 Washer, Plate |
90201-250T6-00 |
from US $2.98 |
||
|
34
|
34
90109-10030-00 Bolt |
90109-10030-00 |
from US $4.11 |
||
| replacement | |||||
|
34
|
34
901-09100-32-00 Bolt |
901-09100-32-00 |
from US $4.11 |
||
|
35
|
35
903-81281-08-00 Bush, Solid |
903-81281-08-00 |
from US $6.23 |
||
|
36
|
36
90201-10039-00 Washer, Plate |
90201-10039-00 |
from US $4.82 |
||
|
37
|
37
90387-25005-00 Collar |
90387-25005-00 |
from US $2.13 |
||
|
38
|
38
8FU-47417-11-00 Bracket 3 |
8FU-47417-11-00 |
from US $46.28 |
||
|
39
|
39
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
39
|
39
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
40
|
40
8FU-47485-00-00 Shaft 3 |
8FU-47485-00-00 |
from US $27.49 |
||
|
41
|
41
902-01101-36-00 Washer, Plate |
902-01101-36-00 |
from US $2.13 |
||
|
42
|
42
90105-10237-00 Bolt, Flange |
90105-10237-00 |
from US $1.07 |
||
| replacement | |||||
|
42
|
42
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
43
|
43
8FU-47486-00-00 Shaft 4 |
8FU-47486-00-00 |
from US $28.19 |
||
|
44
|
44
8GD-47480-50-00 Shock Absorber |
8GD-47480-50-00 |
US $3,733.92 |
||
|
45
|
45
8JA-4745A-00-00 Rod, Control 1 |
8JA-4745A-00-00 |
US $185.35 |
||
|
46
|
46
8JA-4745C-00-00 Rod, Control 3 |
8JA-4745C-00-00 |
US $183.08 |
||
|
47
|
47
8JA-4745B-00-00 Rod, Control 2 |
8JA-4745B-00-00 |
US $110.70 |
||
|
48
|
48
8JA-47368-00-00 Nut |
8JA-47368-00-00 |
from US $21.11 |
||
|
49
|
49
8GM-47384-10-00 Washer |
8GM-47384-10-00 |
US $11.68 |
||
|
50
|
50
8FU-4745D-00-00 Stopper, Cont. 1 |
8FU-4745D-00-00 |
US $28.76 |
||
|
51
|
51
90384-16251-00 Bush, Bimetal Formed |
90384-16251-00 |
from US $3.54 |
||
|
52
|
52
93315-31841-00 Bearing |
93315-31841-00 |
from US $25.22 |
||
|
53
|
53
931-09180-01-00 Oil Seal |
931-09180-01-00 |
from US $6.52 |
||
|
54
|
54
C68-43822-00-00 Seal, Trim Dust |
C68-43822-00-00 |
from US $2.83 |
||
|
55
|
55
90387-12051-00 Collar |
90387-12051-00 |
US $18 |
||
|
56
|
56
903-87120-52-00 Collar |
903-87120-52-00 |
US $26.44 |
||
|
57
|
57
95812-10045-00 Bolt, Flange |
95812-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
57
|
57
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
58
|
58
901-01120-43-00 Bolt |
901-01120-43-00 |
US $12.37 |
||
|
59
|
59
90387-10034-00 Collar |
90387-10034-00 |
from US $11.05 |
||
|
60
|
60
8JA-47341-00-00 Spacer |
8JA-47341-00-00 |
US $10.82 |
||
|
61
|
61
901-01120-42-00 Bolt |
901-01120-42-00 |
US $12.94 |
||
|
62
|
62
95812-10070-00 Bolt, Flange |
95812-10070-00 |
from US $2.69 |
||
| replacement | |||||
|
62
|
62
95817-10070-00 Bolt, Flange(7Lu) |
95817-10070-00 |
from US $2.69 |
||
|
63
|
63
90185-12007-00 Nut, Self-Locking |
90185-12007-00 |
from US $6.09 |
||
|
64
|
64
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
65
|
65
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
65
|
65
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
66
|
66
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
67
|
67
90464-80001-00 Clamp |
90464-80001-00 |
from US $1.17 |
||
|
68
|
68
8GD-82509-01-00 Wire, Sub Lead |
8GD-82509-01-00 |
US $172.22 |
||
