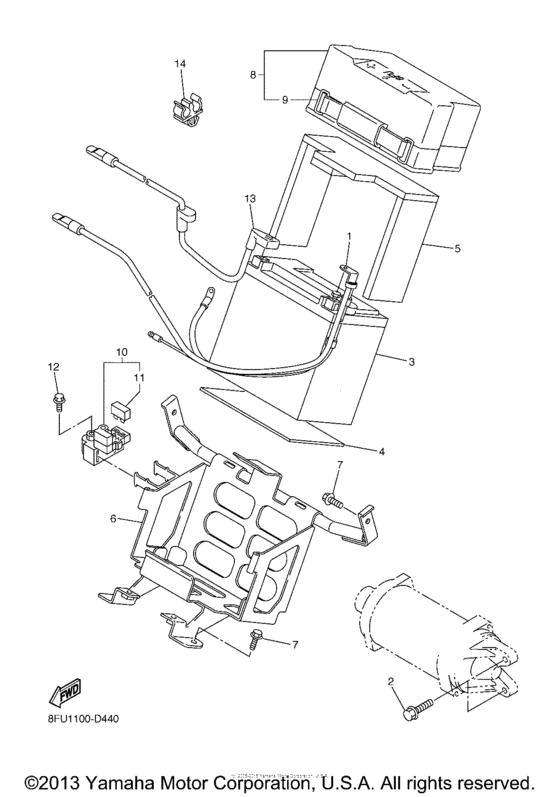

Electrical (2) Diagram Yamaha RX10/RXW10 RX-1
- Model code
- 8FU1
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- USA
- Power
- 145 hp
- Model
- RX-1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FU-82116-00-00 Wire, Minus Lead |
8FU-82116-00-00 |
US $47.20 |
||
|
2
|
2
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
3
|
3
3XW-82100-01-00
Battery (Ytx14-Bs)
|
3XW-82100-01-00 |
— | ||
| replacements | |||||
|
3
|
3
YTX-14BS0-00-00
Ytx14Bs Yuasa Battery -Sa
|
YTX-14BS0-00-00 |
— | ||
|
3
|
3
GTX-14BS0-00-00
CB12A-A GS BATTERY
|
GTX-14BS0-00-00 |
— | ||
|
4
|
4
8FA-82122-00-00 Seat, Battery |
8FA-82122-00-00 |
from US $4.68 |
||
|
5
|
5
8FU-82136-00-00 Plate, Battery Fitting |
8FU-82136-00-00 |
from US $11.76 |
||
|
6
|
6
8FU-2199G-00-00 Bracket, Battery |
8FU-2199G-00-00 |
US $732.40 |
||
| replacement | |||||
|
6
|
6
8FP-2199G-01-00 Bracket, Battery |
8FP-2199G-01-00 |
US $374.56 |
||
|
7
|
7
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
7
|
7
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
8
|
8
8FU-82129-00-00 Cover, Battery |
8FU-82129-00-00 |
from US $21.68 |
||
|
9
|
9
8DM-82131-10-00 Band, Battery |
8DM-82131-10-00 |
from US $11.76 |
||
|
10
|
10
4DN-81940-10-00 Starter Relay Assy (Rc19-003) |
4DN-81940-10-00 |
from US $88.42 |
||
| replacement | |||||
|
10
|
10
4DN-81940-12-00 Starter Relay Assy (Rc19-003) |
4DN-81940-12-00 |
from US $88.42 |
||
|
11
|
11
1AE-82151-00-00 Fuse (30A-Bl)30A-BL |
1AE-82151-00-00 |
from US $1.70 |
||
|
12
|
12
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
13
|
13
8FU-82115-00-00 Wire, Plus Lead |
8FU-82115-00-00 |
from US $40.62 |
||
| replacement | |||||
|
13
|
13
8FP-82115-00-00 Wire, Plus Lead |
8FP-82115-00-00 |
from US $40.62 |
||
|
14
|
14
90464-08126-00 Clamp |
90464-08126-00 |
from US $1.70 |
||
