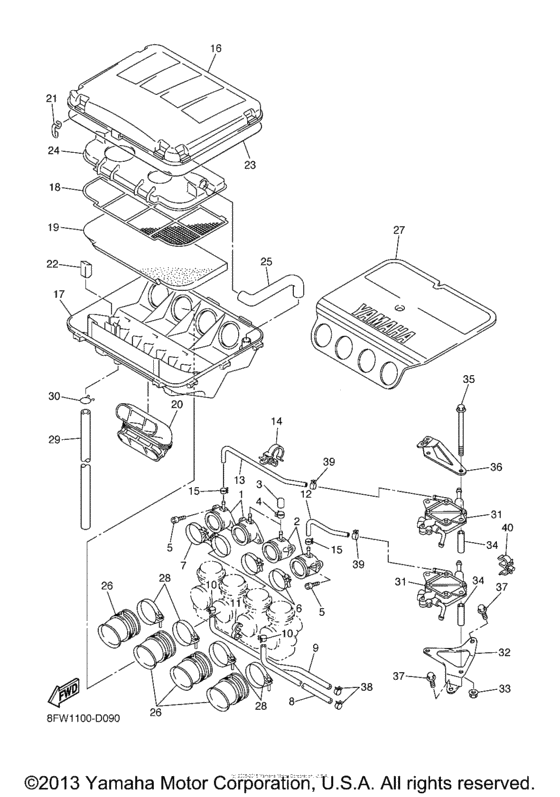

Intake Diagram Yamaha RX10/RXW10 RX-1 Mountain LE
- Model code
- 8GA1
- Engine Capacity
- 998
- Year
- 2005
- Sales region
- USA
- Power
- 145 hp
- Model
- RX-1 Mountain
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-13586-00-00 Joint, Carburetor 1 |
8FA-13586-00-00 |
US $72 |
||
|
2
|
2
8FA-13596-00-00 Joint, Carburetor 2 |
8FA-13596-00-00 |
US $72 |
||
|
3
|
3
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.41 |
||
|
4
|
4
90467-10039-00 Clip |
90467-10039-00 |
from US $1.35 |
||
|
5
|
5
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
6
|
6
5LV-13474-00-00 Band |
5LV-13474-00-00 |
from US $6.32 |
||
| replacement | |||||
|
6
|
6
5EL-13474-00-00 Band |
5EL-13474-00-00 |
from US $7.51 |
||
|
7
|
7
8FA-13474-00-00 Band |
8FA-13474-00-00 |
from US $20.86 |
||
|
8
|
8
8FA-14294-00-00 Hose |
8FA-14294-00-00 |
from US $13.18 |
||
|
9
|
9
8FA-14298-00-00 Pipe |
8FA-14298-00-00 |
from US $15.71 |
||
|
10
|
10
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
11
|
11
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.70 |
||
|
12
|
12
8FA-13895-00-00 Hose, Air |
8FA-13895-00-00 |
from US $3.67 |
||
|
13
|
13
8FA-13892-00-00 Hose, Air 2 |
8FA-13892-00-00 |
from US $7.90 |
||
|
14
|
14
90464-26245-00 Clamp |
90464-26245-00 |
US $2.90 |
||
|
15
|
15
90467-08092-00 Clip |
90467-08092-00 |
from US $1.35 |
||
|
16
|
16
8FA-14431-00-00 Silencer, Intake 1 |
8FA-14431-00-00 |
from US $49.74 |
||
|
17
|
17
8FA-14441-00-00
Silencer, Intake 2
|
8FA-14441-00-00 |
— | ||
|
18
|
18
8FA-14472-00-00 Plate, Element |
8FA-14472-00-00 |
from US $27.16 |
||
|
19
|
19
8FA-14451-01-00 Element, Air Cleaner |
8FA-14451-01-00 |
from US $42.97 |
||
|
20
|
20
8FA-14437-00-00 Duct |
8FA-14437-00-00 |
from US $45.23 |
||
|
21
|
21
8FA-14436-00-00 Hook |
8FA-14436-00-00 |
from US $1.56 |
||
|
22
|
22
8FA-14425-00-00 Damper 1 |
8FA-14425-00-00 |
from US $1.62 |
||
|
23
|
23
8FA-14452-00-00
Seal
|
8FA-14452-00-00 |
— | ||
|
24
|
24
8FA-14417-00-00 Cover 1 |
8FA-14417-00-00 |
from US $24.38 |
||
|
25
|
25
8FA-14419-00-00 Pipe |
8FA-14419-00-00 |
from US $32 |
||
|
26
|
26
8FA-14453-00-00 Joint, Air Cleaner 1 |
8FA-14453-00-00 |
from US $28.62 |
||
| replacement | |||||
|
26
|
26
8FA-14453-01-00 Joint, Air Cleaner 1 |
8FA-14453-01-00 |
US $33.46 |
||
|
27
|
27
8FA-14283-00-00 Cover, Carburetor 1 |
8FA-14283-00-00 |
from US $63.54 |
||
|
28
|
28
904-50630-96-00
Hose Clamp Assy
|
904-50630-96-00 |
— | ||
| replacement | |||||
|
28
|
28
90450-63002-00 Hose Clamp Assy |
90450-63002-00 |
from US $9.49 |
||
|
29
|
29
8FA-1443E-00-00 Pipe, Drain |
8FA-1443E-00-00 |
from US $6.52 |
||
|
30
|
30
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
30
|
30
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
30
|
30
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
31
|
31
8FA-13910-00-00 Fuel Pump Assy |
8FA-13910-00-00 |
from US $106.38 |
||
|
32
|
32
8FA-24491-00-00 Bracket, Fuel Pump |
8FA-24491-00-00 |
from US $3.26 |
||
|
33
|
33
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
34
|
34
90387-065V0-00 Collar |
90387-065V0-00 |
from US $3.97 |
||
| replacement | |||||
|
34
|
34
90387-08262-00 Collar |
90387-08262-00 |
from US $3.97 |
||
|
35
|
35
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
36
|
36
8FW-12443-00-00 Stay |
8FW-12443-00-00 |
from US $7.79 |
||
|
37
|
37
958-27060-16-00
Bolt, Flange
|
958-27060-16-00 |
— | ||
| replacement | |||||
|
37
|
37
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
38
|
38
90467-11028-00 Clip |
90467-11028-00 |
from US $1.28 |
||
|
39
|
39
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
40
|
40
90464-11007-00 Clamp |
90464-11007-00 |
from US $3.68 |
||
