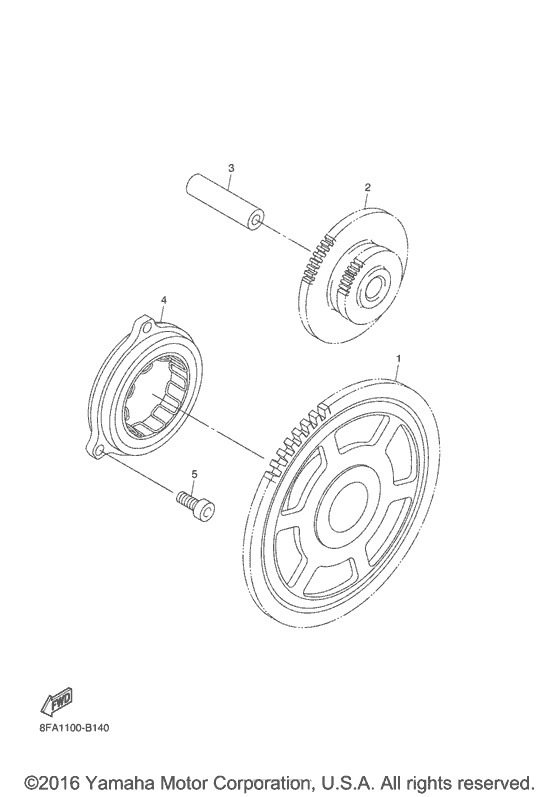

Starter Diagram Yamaha RX10/RXW10 Apex SE
- Model code
- 8JCB
- Engine Capacity
- 998
- Year
- 2015
- Sales region
- USA
- Model
- Apex SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-15515-00-00 Gear 3 |
8FA-15515-00-00 |
from US $106.38 |
||
|
2
|
2
8FA-15512-00-00 Gear, Idler 1 |
8FA-15512-00-00 |
from US $75.16 |
||
|
3
|
3
3LD-15521-00-00 Shaft 1 |
3LD-15521-00-00 |
from US $9.21 |
||
| replacement | |||||
|
3
|
3
26H-15521-00-00 Shaft 1 |
26H-15521-00-00 |
from US $9.21 |
||
|
4
|
4
8GC-15590-10-00 Starter One-Way Assy |
8GC-15590-10-00 |
from US $151.98 |
||
|
5
|
5
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
5
|
5
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
5
|
5
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
