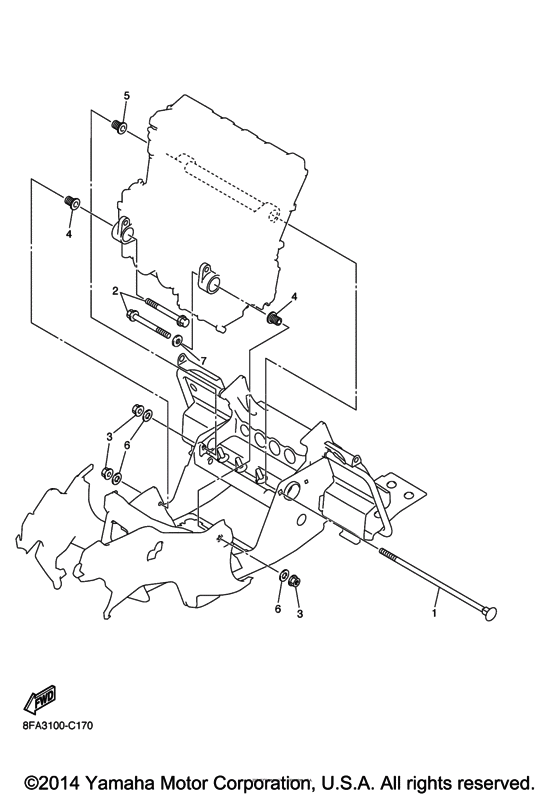

Engine bracket Diagram Yamaha RX10/RXW10 Apex X-TX
- Model code
- 8HNB
- Engine Capacity
- 998
- Year
- 2015
- Sales region
- USA
- Model
- Apex X-TX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-21481-02-00 Bolt, Engine Mounting 1 |
8FA-21481-02-00 |
from US $31.45 |
||
|
2
|
2
95817-12100-00 Bolt, Flange |
95817-12100-00 |
from US $5.53 |
||
|
3
|
3
90179-12004-00 Nut |
90179-12004-00 |
from US $2.36 |
||
|
4
|
4
8FG-21495-00-00 Bolt, Engine Adjusting |
8FG-21495-00-00 |
from US $19.55 |
||
|
5
|
5
8FG-2149C-00-00 Bolt |
8FG-2149C-00-00 |
from US $18.70 |
||
|
6
|
6
90201-120T5-00 Washer, Plate |
90201-120T5-00 |
from US $2.41 |
||
|
7
|
7
90201-125A3-00 Washer, Plate |
90201-125A3-00 |
from US $1.84 |
