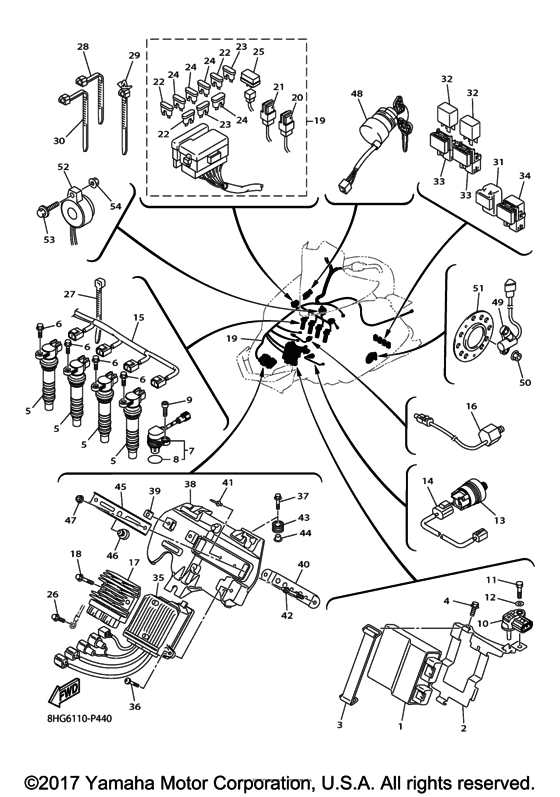

Electrical 1 Diagram Yamaha RX10/RXW10 Apex LE
- Model code
- 8LF3
- Engine Capacity
- 998
- Year
- 2018
- Sales region
- USA
- Model
- Apex LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8HG-8591A-10-00 Engine Control Unit Assy |
8HG-8591A-10-00 |
US $1,354.46 |
||
|
2
|
2
8HG-85991-00-00 Bracket, Unit |
8HG-85991-00-00 |
US $21.58 |
||
|
3
|
3
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.42 |
||
|
4
|
4
95822-06016-00 Bolt, Flange |
95822-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
5
|
5
8FP-82310-00-00 Ignition Coil Assy |
8FP-82310-00-00 |
from US $111.63 |
||
|
6
|
6
95812-06025-00 Bolt, Flange |
95812-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
6
|
6
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
7
|
7
5VY-85896-01-00 Sensor, Cam Position |
5VY-85896-01-00 |
from US $112.80 |
||
| replacement | |||||
|
7
|
7
5VY-85896-02-00 Sensor, Cam Position |
5VY-85896-02-00 |
from US $137.61 |
||
|
8
|
8
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
9
|
9
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
9
|
9
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
9
|
9
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
10
|
10
5S7-82380-00-00 Sensor, Pressure |
5S7-82380-00-00 |
from US $143.69 |
||
|
11
|
11
97022-06020-00 Bolt |
97022-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
12
|
12
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
8FP-82504-00-00 Oil Pressure Switch Assy |
8FP-82504-00-00 |
from US $46.84 |
||
|
14
|
14
8FP-82318-00-00 Wire, Sub-Lead |
8FP-82318-00-00 |
from US $10.63 |
||
|
15
|
15
8HG-81515-10-00 Lead Wire Assy |
8HG-81515-10-00 |
US $135.63 |
||
|
16
|
16
8FE-85780-00-00 Sensor, Knock |
8FE-85780-00-00 |
from US $111.22 |
||
|
17
|
17
1D7-81960-01-00 Rectifier & Regulator Assy |
1D7-81960-01-00 |
from US $219.67 |
||
|
18
|
18
958-02060-25-00
Bolt, Flange
|
958-02060-25-00 |
— | ||
| replacements | |||||
|
18
|
18
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
18
|
18
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
19
|
19
8HG-82590-20-00 Wire Harness Assy |
8HG-82590-20-00 |
US $1,009.48 |
||
|
20
|
20
5PS-82151-00-00 Slow Blow Fuse |
5PS-82151-00-00 |
from US $6.52 |
||
| replacement | |||||
|
20
|
20
JR9-82151-00-00 Fuse (40A) |
JR9-82151-00-00 |
from US $6.09 |
||
|
21
|
21
4FM-82151-00-00 Fuse (30A) |
4FM-82151-00-00 |
from US $4.25 |
||
|
22
|
22
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.54 |
||
|
23
|
23
5JJ-82151-90-00 Fuse - 5 A - Blade ( |
5JJ-82151-90-00 |
US $3.54 |
||
| replacement | |||||
|
23
|
23
67F-82151-20-00 Fuse (5A) |
67F-82151-20-00 |
from US $2.98 |
||
|
24
|
24
5JJ-82151-50-00 Fuse (3A) |
5JJ-82151-50-00 |
from US $3.54 |
||
| replacement | |||||
|
24
|
24
67F-82151-30-00 Fuse (3A) |
67F-82151-30-00 |
from US $2.41 |
||
|
25
|
25
4WA-81980-00-00 Diode Assy |
4WA-81980-00-00 |
from US $15.30 |
||
|
26
|
26
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
26
|
26
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
26
|
26
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
27
|
27
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
28
|
28
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
29
|
29
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
29
|
29
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
30
|
30
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
31
|
31
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
|
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
31
|
31
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52) |
5DM-81950-01-00 |
from US $20.12 |
||
|
32
|
32
8HG-81951-10-00 Relay Assy (8Hg-10) |
8HG-81951-10-00 |
from US $8.50 |
||
|
33
|
33
8HG-81952-00-00 Holder, Relay |
8HG-81952-00-00 |
from US $2.69 |
||
|
34
|
34
8GN-81950-00-00 Relay Assy (8Gn-00) |
8GN-81950-00-00 |
from US $12.75 |
||
|
35
|
35
8HG-859A0-11-00 Power Steering Control Unit Ass |
8HG-859A0-11-00 |
from US $836.88 |
||
|
36
|
36
98902-06020-00 Screw, Bind |
98902-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
36
|
36
98980-06020-00 Screw, Bind |
98980-06020-00 |
from US $1.42 |
||
|
37
|
37
90119-06105-00 Bolt, With Washer |
90119-06105-00 |
from US $1.84 |
||
|
38
|
38
8HG-2830X-00-00 Brkt., Control Unit |
8HG-2830X-00-00 |
US $46.26 |
||
|
39
|
39
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
39
|
39
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
40
|
40
8HG-2836A-00-00 Bracket 1 |
8HG-2836A-00-00 |
US $13.77 |
||
|
41
|
41
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
42
|
42
8HG-82133-00-00 Screw, Fitting |
8HG-82133-00-00 |
US $16.15 |
||
|
43
|
43
90480-12023-00 Grommet |
90480-12023-00 |
from US $1.56 |
||
| replacement | |||||
|
43
|
43
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
44
|
44
90387-06203-00 Collar |
90387-06203-00 |
from US $7.79 |
||
|
45
|
45
8HG-81948-00-00 Bracket |
8HG-81948-00-00 |
US $10.30 |
||
|
46
|
46
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.02 |
||
|
47
|
47
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
47
|
47
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
48
|
48
8HV-82510-00-00 Main Switch Assy |
8HV-82510-00-00 |
from US $60.51 |
||
|
49
|
49
8HG-83755-00-00 Sensor, Speed |
8HG-83755-00-00 |
from US $70.74 |
||
|
50
|
50
95702-08300-00 Nut, Flange |
95702-08300-00 |
from US $1.57 |
||
| replacement | |||||
|
50
|
50
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
51
|
51
8EK-47551-00-00 Housing, Front Axle |
8EK-47551-00-00 |
from US $4.53 |
||
|
52
|
52
8GL-83383-00-00 Buzzer |
8GL-83383-00-00 |
from US $52.09 |
||
|
53
|
53
90159-05035-00 Screw, With Washer |
90159-05035-00 |
from US $1.70 |
||
|
54
|
54
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
54
|
54
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
