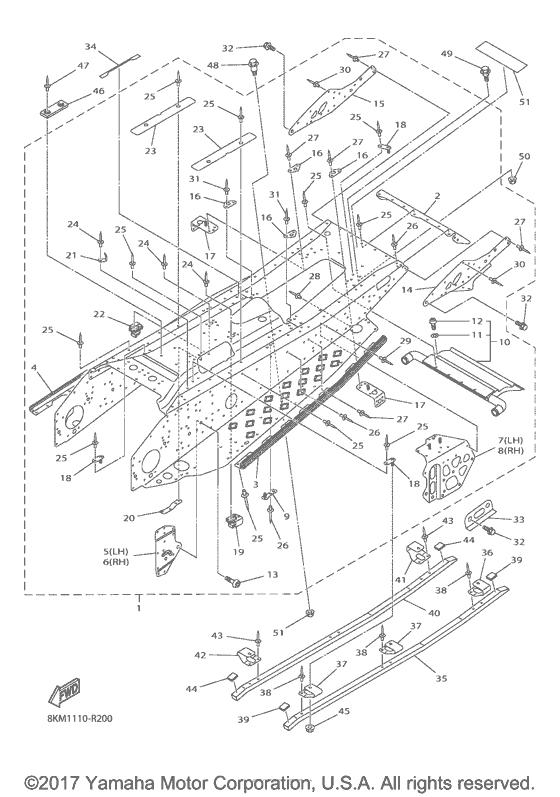

Frame 2 Diagram Yamaha RX10/RXW10 Apex LE
- Model code
- 8LF3
- Engine Capacity
- 998
- Year
- 2018
- Sales region
- USA
- Model
- Apex LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KM-21950-00-00 Rear Frame Comp |
8KM-21950-00-00 |
US $1,795.36 |
||
|
2
|
2
8HG-21923-00-00 Reineforcement, Frame Rear 1 |
8HG-21923-00-00 |
US $140.45 |
||
|
3
|
3
8FG-21926-00-00 Reinforcement, Footrest 1 |
8FG-21926-00-00 |
from US $107.21 |
||
|
4
|
4
8FG-21936-00-00 Reinforcement, Footrest 2 |
8FG-21936-00-00 |
from US $107.21 |
||
|
5
|
5
8HN-21943-00-00 Bracket, Main Track 1 |
8HN-21943-00-00 |
US $54.77 |
||
|
6
|
6
8HN-21953-00-00 Bracket, Main Track 2 |
8HN-21953-00-00 |
US $43.99 |
||
|
7
|
7
8HG-21944-00-00 Bracket, Rear Track Suspens |
8HG-21944-00-00 |
US $160.51 |
||
|
8
|
8
8HG-21954-00-00 Bracket, Rear Track Suspens |
8HG-21954-00-00 |
US $115.40 |
||
|
9
|
9
8HG-2194N-00-00 Bracket, Fuel Tank 1 |
8HG-2194N-00-00 |
US $10.31 |
||
|
10
|
10
8HG-1241A-00-00 Heat Exchanger Assy 4 |
8HG-1241A-00-00 |
US $561.60 |
||
|
11
|
11
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
12
|
12
985-02060-12-00
Screw, Pan Head
|
985-02060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
13
|
13
920-12100-20-00 Bolt, Button Head |
920-12100-20-00 |
from US $1.56 |
||
|
14
|
14
8HG-21928-00-00 Reinf., Sub Frame 1 |
8HG-21928-00-00 |
US $100.37 |
||
|
15
|
15
8HG-21938-00-00 Reinf., Sub Frame 2 |
8HG-21938-00-00 |
from US $60.79 |
||
|
16
|
16
8HG-22168-00-00 Patch |
8HG-22168-00-00 |
US $4.16 |
||
|
17
|
17
8HG-2162G-00-00 Plate 1 |
8HG-2162G-00-00 |
US $16.25 |
||
|
18
|
18
8HG-2251A-00-00 Bracket 9 |
8HG-2251A-00-00 |
US $9.47 |
||
|
19
|
19
8HG-14791-00-00 Stay, Muffler |
8HG-14791-00-00 |
US $19.75 |
||
|
20
|
20
8HG-21961-00-00 Patch 1 |
8HG-21961-00-00 |
US $5.83 |
||
|
21
|
21
90465-08370-00 Clamp |
90465-08370-00 |
US $20.54 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
8HG-14792-00-00 Stay, Muffler |
8HG-14792-00-00 |
US $19.75 |
||
|
23
|
23
8HG-2214F-00-00 Damper 1 |
8HG-2214F-00-00 |
US $15.01 |
||
|
24
|
24
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
25
|
25
90267-48023-00 Rivet, Blind |
90267-48023-00 |
from US $1.84 |
||
|
26
|
26
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
27
|
27
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
28
|
28
90267-48010-00 Rivet, Blind |
90267-48010-00 |
from US $1.28 |
||
|
29
|
29
90267-48083-00 Rivet, Blind |
90267-48083-00 |
from US $2.55 |
||
|
30
|
30
90267-48015-00 Rivet, Blind |
90267-48015-00 |
from US $1.98 |
||
|
31
|
31
90267-48176-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48176-00 |
from US $1.84 |
||
| replacement | |||||
|
31
|
31
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
32
|
32
95812-10020-00 Bolt, Flange |
95812-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
33
|
33
8FU-21988-01-00 Patch 8 |
8FU-21988-01-00 |
from US $5.81 |
||
|
34
|
34
8HG-77561-00-00 Protector, Side 1 |
8HG-77561-00-00 |
US $2.09 |
||
|
35
|
35
8HG-21978-00-00 Protector, Frame |
8HG-21978-00-00 |
US $126.72 |
||
|
36
|
36
8HG-2196G-00-00 Bracket 4 |
8HG-2196G-00-00 |
US $14.94 |
||
|
37
|
37
8HG-2197N-00-00 Bracket 7 |
8HG-2197N-00-00 |
US $13.07 |
||
|
38
|
38
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
39
|
39
8HG-21852-00-00 Damper |
8HG-21852-00-00 |
US $1.42 |
||
|
40
|
40
8HG-21978-00-00 Protector, Frame |
8HG-21978-00-00 |
US $126.72 |
||
|
41
|
41
8HG-2196G-00-00 Bracket 4 |
8HG-2196G-00-00 |
US $14.94 |
||
|
42
|
42
8HG-2197N-00-00 Bracket 7 |
8HG-2197N-00-00 |
US $13.07 |
||
|
43
|
43
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
44
|
44
8HG-21852-00-00 Damper |
8HG-21852-00-00 |
US $1.42 |
||
|
45
|
45
95602-08200-00 Nut, U Flange |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
45
|
45
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
46
|
46
8FA-21998-00-00 Spacer |
8FA-21998-00-00 |
from US $3.12 |
||
|
47
|
47
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
48
|
48
90109-06241-00 Bolt |
90109-06241-00 |
from US $1.98 |
||
|
49
|
49
90109-06220-00 Bolt |
90109-06220-00 |
from US $1.84 |
||
|
50
|
50
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
50
|
50
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
51
|
51
8HA-77762-E0-00 Label, Warning 2 |
8HA-77762-E0-00 |
from US $6.23 |
||
