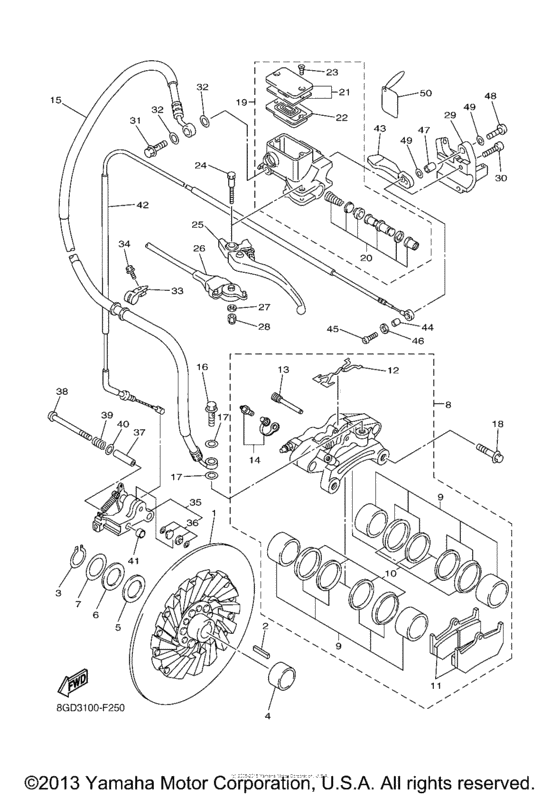

Brake Diagram Yamaha RX10/RXW10 Attak GT
- Model code
- 8GV1
- Engine Capacity
- 998
- Year
- 2007
- Sales region
- USA
- Power
- 150 hp
- Model
- Attak GT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FU-2581T-00-00 Disc Brake Assy |
8FU-2581T-00-00 |
from US $236.38 |
||
|
2
|
2
90282-07002-00 Key, Straight |
90282-07002-00 |
from US $6.09 |
||
|
3
|
3
99009-24400-00 Circlip |
99009-24400-00 |
from US $1.56 |
||
|
4
|
4
90387-25012-00 Collar |
90387-25012-00 |
US $29.18 |
||
|
5
|
5
90387-25011-00 Collar |
90387-25011-00 |
from US $6.94 |
||
|
6
|
6
90201-25527-00 Washer, Plate (T1.0)UN |
90201-25527-00 |
from US $1.50 |
||
|
7
|
7
90201-252F1-00 Washer, Plate (T0.5)UN |
90201-252F1-00 |
from US $1.56 |
||
|
8
|
8
8FU-2580T-01-00 Caliper Assy (Left) |
8FU-2580T-01-00 |
from US $421.48 |
||
|
9
|
9
8FU-W0057-00-00 Piston Assy, Caliper |
8FU-W0057-00-00 |
from US $84.69 |
||
|
10
|
10
3JD-W0047-10-00 Caliper Seal Kit |
3JD-W0047-10-00 |
from US $45.45 |
||
|
11
|
11
8FU-W0046-01-00 Brake Pad Kit 2 |
8FU-W0046-01-00 |
from US $71.69 |
||
|
12
|
12
8FU-25919-00-00 Support, Pad |
8FU-25919-00-00 |
from US $12.33 |
||
|
13
|
13
8FU-25924-00-00 Pin, Pad |
8FU-25924-00-00 |
from US $7.08 |
||
|
14
|
14
8CR-W0048-00-00 Bleed Screw Kit |
8CR-W0048-00-00 |
from US $5.67 |
||
|
15
|
15
8GT-25872-00-00 Hose, Brake 1 |
8GT-25872-00-00 |
US $72.67 |
||
| replacement | |||||
|
15
|
15
8GT-25872-10-00 Hose, Brake 1 |
8GT-25872-10-00 |
US $82.46 |
||
|
16
|
16
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
17
|
17
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
18
|
18
90105-10096-00 Bolt, Flange |
90105-10096-00 |
from US $2.55 |
||
|
19
|
19
8FA-W2587-00-00 Master Cylinder Sub Assy |
8FA-W2587-00-00 |
from US $222.44 |
||
|
20
|
20
8CR-W0041-00-00 Cylinder Kit, Master |
8CR-W0041-00-00 |
from US $27.34 |
||
|
21
|
21
8CR-W2585-00-00 Reservoir Cap Set |
8CR-W2585-00-00 |
from US $21.25 |
||
|
22
|
22
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $10.48 |
||
|
23
|
23
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
23
|
23
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.36 |
||
|
24
|
24
8CR-2589F-00-00 Bolt, Lever |
8CR-2589F-00-00 |
from US $3.97 |
||
|
25
|
25
8DN-83912-00-00 Lever 1 |
8DN-83912-00-00 |
from US $63.31 |
||
|
26
|
26
8FP-82530-00-00 Stop Switch Assy |
8FP-82530-00-00 |
from US $22.53 |
||
|
27
|
27
8CR-8398X-00-00 Washer, Plate |
8CR-8398X-00-00 |
from US $1.35 |
||
|
28
|
28
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
29
|
29
8FA-25867-00-00 Holder |
8FA-25867-00-00 |
from US $22.67 |
||
|
30
|
30
91316-06022-00 Bolt |
91316-06022-00 |
US $1.07 |
||
| replacement | |||||
|
30
|
30
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
31
|
31
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
32
|
32
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
32
|
32
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
33
|
33
8FA-25886-00-00 Holder, Brake Hose |
8FA-25886-00-00 |
from US $5.24 |
||
|
34
|
34
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.56 |
||
|
35
|
35
8FU-25970-01-00 Parking Brake Comp |
8FU-25970-01-00 |
from US $167.17 |
||
|
36
|
36
8FA-W0045-00-00 Parking Brake Pad Kit |
8FA-W0045-00-00 |
from US $55.26 |
||
|
37
|
37
90387-06058-00 Collar |
90387-06058-00 |
from US $7.37 |
||
|
38
|
38
90111-06048-00 Bolt, Hex. Socket Button |
90111-06048-00 |
from US $3.68 |
||
|
39
|
39
90501-120A0-00 Spring, Compression |
90501-120A0-00 |
from US $1.70 |
||
|
40
|
40
90201-12161-00 Washer, Plate |
90201-12161-00 |
from US $1.70 |
||
|
41
|
41
90387-06085-00 Collar |
90387-06085-00 |
from US $4.25 |
||
|
42
|
42
8FP-26351-00-00 Cable, Brake |
8FP-26351-00-00 |
from US $30.18 |
||
|
43
|
43
8FA-83922-00-00 Lever 2 |
8FA-83922-00-00 |
from US $28.05 |
||
|
44
|
44
903-87060-43-00 Collar |
903-87060-43-00 |
from US $1.70 |
||
|
45
|
45
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
46
|
46
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
46
|
46
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
47
|
47
90387-081M9-00 Collar |
90387-081M9-00 |
from US $1.42 |
||
|
48
|
48
92017-08020-00 Bolt, Button |
92017-08020-00 |
from US $1.07 |
||
|
49
|
49
90201-08403-00 Washer, Plate |
90201-08403-00 |
from US $1.70 |
||
| replacement | |||||
|
49
|
49
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.36 |
||
|
50
|
50
8CR-23496-00-00 Tag, Caution |
8CR-23496-00-00 |
US $4.07 |
||
