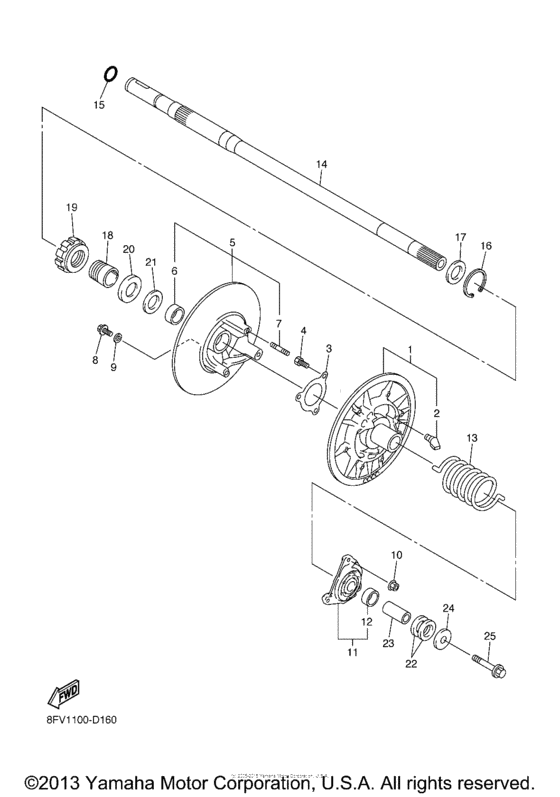

Secondary sheave Diagram Yamaha RX10/RXW10 Attak
- Model code
- 8FT3
- Engine Capacity
- 998
- Year
- 2007
- Sales region
- USA
- Model
- Attak
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
8ER-17660-20-00 Secondary Fixed Sheave Comp |
8ER-17660-20-00 |
from US $430.53 |
||
replacement | |||||
1
|
1
8ER-17660-30-00 Secondary Fixed Sheave Comp |
8ER-17660-30-00 |
from US $386.31 |
||
2
|
2
8ER-17688-00-00 Shoe, Ramp |
8ER-17688-00-00 |
from US $18.70 |
||
3
|
3
8BV-17656-00-00 Stopper, Holder |
8BV-17656-00-00 |
from US $11.37 |
||
4
|
4
90154-06062-00 Screw, Bind |
90154-06062-00 |
from US $1.50 |
||
replacement | |||||
4
|
4
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.50 |
||
5
|
5
8BU-17670-20-00 Secondary Sliding Sheave |
8BU-17670-20-00 |
from US $254.89 |
||
replacement | |||||
5
|
5
8BU-17670-10-00 Secondary Sliding Sheave |
8BU-17670-10-00 |
from US $279.40 |
||
6
|
6
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.82 |
||
7
|
7
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $3.44 |
||
8
|
8
90105-06734-00 Bolt, Flange |
90105-06734-00 |
from US $1.50 |
||
9
|
9
90201-061H1-00 Washer, Plate (T=0.5)UR UN |
90201-061H1-00 |
from US $2.39 |
||
9
|
9
90201-06037-00 Washer, PlateUR UN |
90201-06037-00 |
US $1.94 |
||
replacement | |||||
9
|
9
90201-06431-00 Washer, Plate (371)UR UN |
90201-06431-00 |
from US $1.94 |
||
10
|
10
90179-08655-00 Nut |
90179-08655-00 |
from US $2.24 |
||
11
|
11
8FA-17604-00-00 Seat Spring Set |
8FA-17604-00-00 |
from US $74.06 |
||
12
|
12
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.82 |
||
13
|
13
90508-60007-00 Spring, Torsion |
90508-60007-00 |
from US $24.38 |
||
14
|
14
8FU-17681-00-00 Shaft, Secondary |
8FU-17681-00-00 |
from US $248.34 |
||
15
|
15
93210-22164-00 O-Ring |
93210-22164-00 |
from US $1.13 |
||
replacement | |||||
15
|
15
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.13 |
||
16
|
16
93410-30084-00 Circlip |
93410-30084-00 |
from US $3.89 |
||
17
|
17
90201-30666-00 Washer, Plate |
90201-30666-00 |
from US $3.74 |
||
18
|
18
8FA-17645-10-00 Collar |
8FA-17645-10-00 |
from US $28.57 |
||
19
|
19
8FA-17642-00-00 Nut, Bearing |
8FA-17642-00-00 |
from US $54.49 |
||
20
|
20
90209-25012-00 Washer |
90209-25012-00 |
from US $6.75 |
||
21
|
21
90201-25289-00 Washer, Plate (T=1.6)UN |
90201-25289-00 |
from US $2.24 |
||
22
|
22
90201-222F0-00 Washer, Plate (T=0.5)UR UN |
90201-222F0-00 |
from US $1.65 |
||
22
|
22
90201-225A4-00 Washer, Plate (T=1.0)UR UN |
90201-225A4-00 |
from US $1.05 |
||
23
|
23
90387-1407L-00 Collar |
90387-1407L-00 |
from US $6.88 |
||
replacement | |||||
23
|
23
903-87140-19-00 Collar |
903-87140-19-00 |
from US $6.58 |
||
24
|
24
90201-141A3-00 Washer, Plate |
90201-141A3-00 |
from US $3.29 |
||
replacement | |||||
24
|
24
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.29 |
||
25
|
25
90105-14766-00 Bolt, Flange |
90105-14766-00 |
from US $15.56 |
