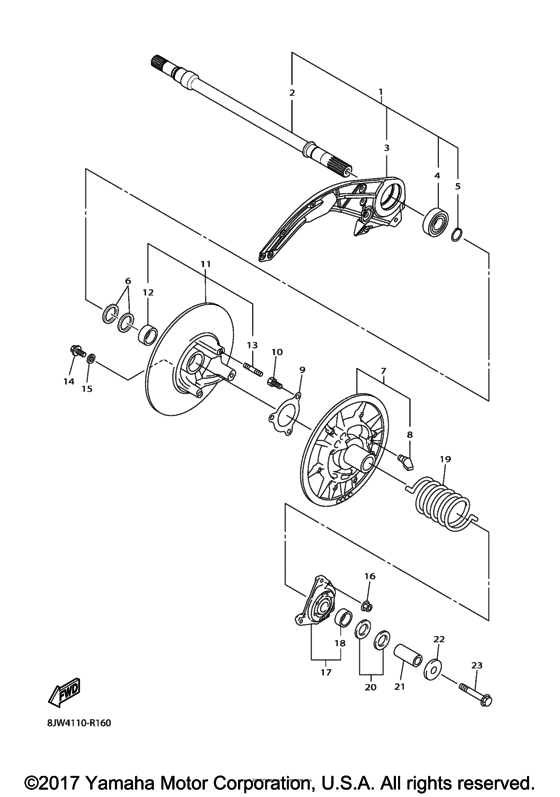

Secondary sheave Diagram Yamaha SR10/ SRV10 SR Viper L-TX DX
- Model code
- 8JX3
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper L-TX DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-E7680-10-00 Secondary Shaft Comp |
8JP-E7680-10-00 |
US $662.04 |
||
|
2
|
2
8JP-E7681-10-00 Shaft, Secondary |
8JP-E7681-10-00 |
US $178.40 |
||
|
3
|
3
8JP-G7631-00-00 Housing, Bearing |
8JP-G7631-00-00 |
US $290.05 |
||
| replacement | |||||
|
3
|
3
8JP-G7631-10-00 HOUSING, BEARING |
8JP-G7631-10-00 |
US $309.13 |
||
|
4
|
4
8JP-RAG07-00-00 Bearing, 6206 |
8JP-RAG07-00-00 |
US $42.80 |
||
|
5
|
5
8JP-RAH03-00-00 Circlip, 1 |
8JP-RAH03-00-00 |
US $1.28 |
||
|
6
|
6
8JP-RA448-00-00 Washer, 28X40X1UR UN |
8JP-RA448-00-00 |
US $1.89 |
||
|
6
|
6
8JP-RA449-00-00 Washer, 28X40X2UR UN |
8JP-RA449-00-00 |
US $5.08 |
||
|
7
|
7
8GL-17660-30-00 Secondary Fixed Sheave Comp |
8GL-17660-30-00 |
from US $309.48 |
||
|
8
|
8
8AV-17688-10-00 Shoe, Ramp |
8AV-17688-10-00 |
from US $20.69 |
||
|
9
|
9
8BV-17656-00-00 Stopper, Holder |
8BV-17656-00-00 |
from US $12.61 |
||
|
10
|
10
90154-06062-00 Screw, Bind |
90154-06062-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
11
|
11
8BU-17670-30-00 Secondary Sliding Sheave |
8BU-17670-30-00 |
from US $288.72 |
||
|
12
|
12
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
13
|
13
95617-08630-00 Bolt, Stud |
95617-08630-00 |
from US $3.68 |
||
|
14
|
14
90105-06734-00 Bolt, Flange |
90105-06734-00 |
from US $1.70 |
||
|
15
|
15
90201-061H1-00 Washer, Plate (T=0.5)UR UN |
90201-061H1-00 |
from US $2.69 |
||
|
15
|
15
90201-06037-00 Washer, PlateUR UN |
90201-06037-00 |
US $2.13 |
||
| replacement | |||||
|
15
|
15
90201-06431-00 Washer, Plate (371)UR UN |
90201-06431-00 |
from US $2.13 |
||
|
16
|
16
90179-08655-00 Nut |
90179-08655-00 |
from US $2.41 |
||
|
17
|
17
8BV-17604-31-00 Seat Spring Set |
8BV-17604-31-00 |
from US $142.30 |
||
|
18
|
18
90384-38243-00 Bush, Bimetal Formed |
90384-38243-00 |
from US $30.89 |
||
|
19
|
19
905-08600-12-00 Spring, Torsion(PINK) |
905-08600-12-00 |
from US $25.22 |
||
|
20
|
20
8JP-RA447-00-00 Washer, 25X36X2UR UN |
8JP-RA447-00-00 |
US $3.17 |
||
|
20
|
20
8JP-RA446-00-00 Washer, 25X36X1UR UN |
8JP-RA446-00-00 |
US $1.89 |
||
|
20
|
20
8JP-RA433-00-00 Washer, 2UR UN |
8JP-RA433-00-00 |
US $1.58 |
||
|
21
|
21
8JP-RA714-00-00 Collar, 2 |
8JP-RA714-00-00 |
US $11.36 |
||
|
22
|
22
8JP-RA442-00-00 Washer, 10.5X33X4 |
8JP-RA442-00-00 |
US $3.40 |
||
|
23
|
23
8JP-RA1A6-00-00 Bolt, Flange M10X1.25X75 |
8JP-RA1A6-00-00 |
US $10.44 |
||
