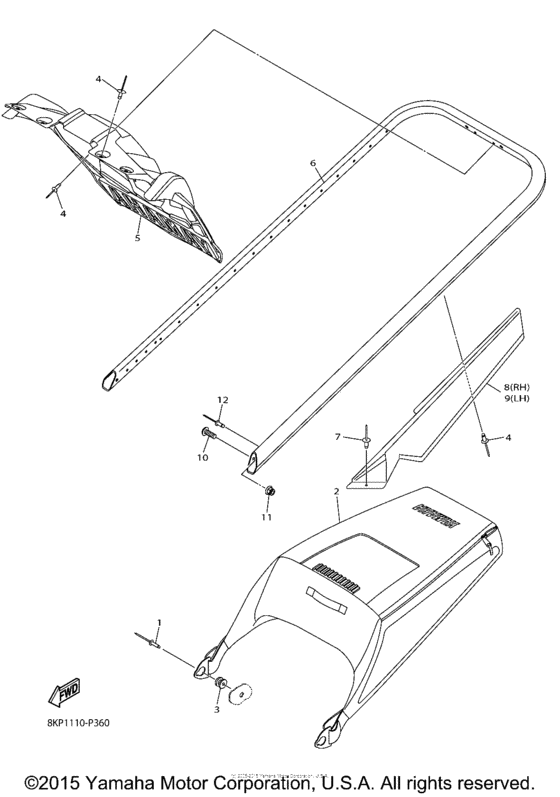

Bumper Diagram Yamaha SR10/ SRV10 SR Viper L-TX LE 1.75
- Model code
- 8KP1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX LE 1.75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-RA516-00-00 Rivet, 7 |
8JP-RA516-00-00 |
US $21.80 |
||
|
2
|
2
8JP-F8441-10-00 Saddle Bag 1 |
8JP-F8441-10-00 |
US $266.18 |
||
|
3
|
3
8JP-F8423-00-00 Stay, Side Bag |
8JP-F8423-00-00 |
US $13.32 |
||
|
4
|
4
8JP-RA524-00-00 Rivet, 1515 |
8JP-RA524-00-00 |
US $29.20 |
||
|
5
|
5
8JP-K7595-00-00 Flap |
8JP-K7595-00-00 |
US $70.42 |
||
| replacement | |||||
|
5
|
5
SMA-8JP77-59-BK Flp Snow Flap Bk |
SMA-8JP77-59-BK |
US $38.99 |
||
|
6
|
6
8JY-K7541-10-00 Bumper, Rear 1 |
8JY-K7541-10-00 |
US $87.21 |
||
|
7
|
7
8JP-RA520-10-00 Rivet |
8JP-RA520-10-00 |
US $5.80 |
||
|
8
|
8
8KP-K7594-00-00 Plate, Frap 2 |
8KP-K7594-00-00 |
US $73.49 |
||
|
9
|
9
8KP-K7593-00-00 Plate, Frap 1 |
8KP-K7593-00-00 |
US $73.49 |
||
|
10
|
10
8JP-RA260-00-00 Screw, M6X1.0X20M6X1.0X20 |
8JP-RA260-00-00 |
US $3.60 |
||
|
11
|
11
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
12
|
12
8JP-RA518-00-00 Rivet, 9UN |
8JP-RA518-00-00 |
US $8.60 |
||
