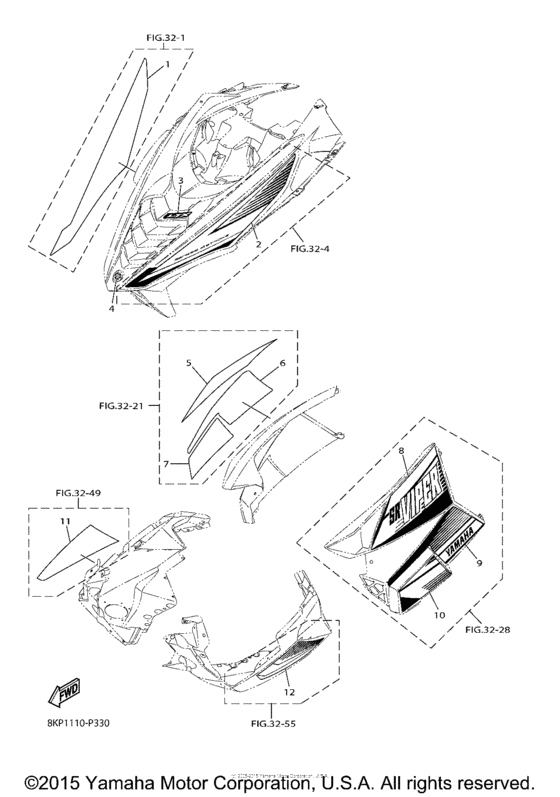

Emblem Diagram Yamaha SR10/ SRV10 SR Viper L-TX LE 1.75
- Model code
- 8KP1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX LE 1.75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-F199B-50-00 Graphic 2 |
8JP-F199B-50-00 |
US $28.13 |
||
|
2
|
2
8JP-F199A-50-00 Graphic 1 |
8JP-F199A-50-00 |
US $32.53 |
||
|
3
|
3
8JX-K711G-00-00 Graphic 7 |
8JX-K711G-00-00 |
US $113.11 |
||
| replacement | |||||
|
3
|
3
8JX-K711R-00-00 GRAPHIC, SHROUD CE |
8JX-K711R-00-00 |
US $38.11 |
||
|
4
|
4
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
5
|
5
8KN-K711B-20-00 Graphic 2 |
8KN-K711B-20-00 |
US $45.05 |
||
|
6
|
6
8KN-K711D-20-00 Graphic 4 |
8KN-K711D-20-00 |
US $48.94 |
||
|
7
|
7
8KN-K711F-20-00 Graphic 6 |
8KN-K711F-20-00 |
US $22.86 |
||
|
8
|
8
8KN-K711A-20-00 Graphic 1 |
8KN-K711A-20-00 |
US $53.26 |
||
|
9
|
9
8KN-K711C-20-00 Graphic 3 |
8KN-K711C-20-00 |
US $48.94 |
||
|
10
|
10
8KN-K711E-20-00 Graphic 5 |
8KN-K711E-20-00 |
US $22.86 |
||
|
11
|
11
8KN-K755C-00-00 Graphic 2 |
8KN-K755C-00-00 |
US $30.11 |
||
|
12
|
12
8KN-K755B-00-00 Graphic 1 |
8KN-K755B-00-00 |
US $41.56 |
||
