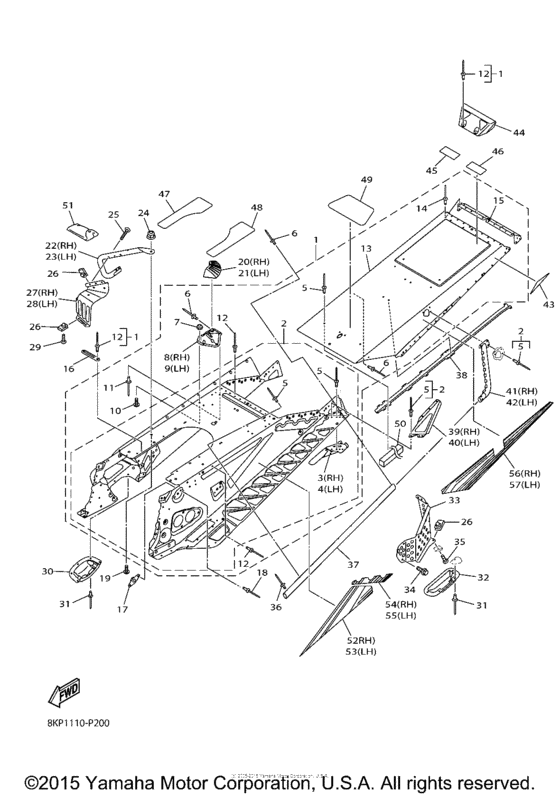

Frame (2) Diagram Yamaha SR10/ SRV10 SR Viper L-TX LE 1.75
- Model code
- 8KP1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX LE 1.75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JY-F1950-00-00 Rear Frame Comp |
8JY-F1950-00-00 |
US $1,079.39 |
||
|
2
|
2
8JY-F1911-00-00 Panel, Frame |
8JY-F1911-00-00 |
US $726.70 |
||
|
3
|
3
8JY-F1954-00-00 Bracket, Rear Track Sus |
8JY-F1954-00-00 |
US $31.10 |
||
|
4
|
4
8JY-F1944-00-00 Bracket, Rear Track Sus |
8JY-F1944-00-00 |
US $32.98 |
||
|
5
|
5
8JP-RA520-00-00 Rivet, 1111 UN |
8JP-RA520-00-00 |
US $9.50 |
||
|
6
|
6
8JP-RA532-00-00 Rivet, 2020 |
8JP-RA532-00-00 |
US $19 |
||
|
7
|
7
8JP-RA370-00-00 Nut, Hex. Locking |
8JP-RA370-00-00 |
US $7.20 |
||
|
8
|
8
8JW-F115M-00-00 Bracket, Member 2 |
8JW-F115M-00-00 |
US $38.20 |
||
|
9
|
9
8JW-F115L-00-00 Bracket, Member 1 |
8JW-F115L-00-00 |
US $44.50 |
||
|
10
|
10
8JP-RA239-00-00 Screw, 5 |
8JP-RA239-00-00 |
US $8.76 |
||
|
11
|
11
8JP-RA528-00-00 Rivet, 3/163/16 |
8JP-RA528-00-00 |
US $38 |
||
|
12
|
12
8JP-RA529-00-00 Rivet, 1717 UN |
8JP-RA529-00-00 |
US $18 |
||
|
13
|
13
8JR-F1912-00-00 Panel, Sub Frame 1 |
8JR-F1912-00-00 |
US $229.82 |
||
|
14
|
14
8JP-RA530-00-00 Rivet, 1818 UN |
8JP-RA530-00-00 |
US $11.60 |
||
|
15
|
15
8JW-F1923-00-00 Reineforcement, Frame Rear 1 |
8JW-F1923-00-00 |
US $47.41 |
||
|
16
|
16
8JP-RAB22-00-00 Clamp, 2020 UN |
8JP-RAB22-00-00 |
US $21.82 |
||
|
17
|
17
8JP-F1919-00-00 Bracket |
8JP-F1919-00-00 |
US $31.52 |
||
|
18
|
18
8JP-RA521-00-00 Rivet, 1212 |
8JP-RA521-00-00 |
US $23.40 |
||
|
19
|
19
8JP-RA272-00-00 Screw, M8X1.25X20M8X1.25X20 |
8JP-RA272-00-00 |
US $0.85 |
||
|
20
|
20
8JP-F2556-00-00 Support, Fuel Tank 2 |
8JP-F2556-00-00 |
US $24.77 |
||
|
21
|
21
8JP-F2555-00-00 Support, Fuel Tank 1 |
8JP-F2555-00-00 |
US $25.47 |
||
|
22
|
22
8JP-F192E-00-00 Reinforcement, Frame |
8JP-F192E-00-00 |
US $75.02 |
||
|
23
|
23
8JP-F1929-00-00 Reinforcement, Frame Side |
8JP-F1929-00-00 |
US $78.07 |
||
|
24
|
24
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
25
|
25
8JP-RA247-00-00 Screw, M5X0.8X35M5X0.8X35 |
8JP-RA247-00-00 |
US $6.32 |
||
|
26
|
26
8JP-RA353-00-00 Nut, Clip M5M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
27
|
27
8JW-F1996-00-00 Reinforcement Sub Frame Fr 2FR 2 |
8JW-F1996-00-00 |
US $33.07 |
||
|
28
|
28
8JW-F1995-00-00 Reinforcement Sub Frame Fr 1FR 1 |
8JW-F1995-00-00 |
US $30.38 |
||
|
29
|
29
8JP-RA251-00-00 Screw, M5X1.0X16M5X1.0X16 |
8JP-RA251-00-00 |
US $1.16 |
||
|
30
|
30
8JP-F2147-00-00
Protector, Chain
|
8JP-F2147-00-00 |
— | ||
|
31
|
31
8JP-RA523-00-00 Rivet, 1414 |
8JP-RA523-00-00 |
US $17.60 |
||
|
32
|
32
8JP-F5717-00-00 Protector, Disc Brake |
8JP-F5717-00-00 |
US $16.31 |
||
|
33
|
33
8JW-F5718-00-00 Protector, Disc Brake |
8JW-F5718-00-00 |
US $60.01 |
||
| replacement | |||||
|
33
|
33
8JW-F5718-60-00 |
8JW-F5718-60-00 |
US $53.35 |
||
|
34
|
34
8JP-RA179-00-00 Bolt, Flange M6X1.0X12M6X1.0X12 |
8JP-RA179-00-00 |
US $5.08 |
||
|
35
|
35
8JP-RA244-00-00 Screw, M5X0.8X20M5X0.8X20 |
8JP-RA244-00-00 |
US $2.96 |
||
|
36
|
36
8JP-RA526-00-00 Rivet, 3/163/16 UN |
8JP-RA526-00-00 |
US $24.18 |
||
|
37
|
37
8JW-F1926-00-00 Reinforcement, Footrest 1 |
8JW-F1926-00-00 |
US $66.10 |
||
|
38
|
38
8JR-H2589-00-00 Protecter, Wire Harness |
8JR-H2589-00-00 |
US $34.67 |
||
|
39
|
39
8JW-F1135-00-00 Gusset |
8JW-F1135-00-00 |
US $32.18 |
||
|
40
|
40
8JW-F1134-00-00 Gusset |
8JW-F1134-00-00 |
US $31.61 |
||
|
41
|
41
8JW-F1137-00-00 Gusset |
8JW-F1137-00-00 |
US $44.21 |
||
|
42
|
42
8JW-F1136-00-00 Gusset |
8JW-F1136-00-00 |
US $36.45 |
||
|
43
|
43
8JP-F151A-00-00 Label 1 |
8JP-F151A-00-00 |
US $16.85 |
||
|
44
|
44
8JW-F117E-10-00 Bracket, Taillight |
8JW-F117E-10-00 |
US $47.41 |
||
|
45
|
45
8JP-K7762-70-00 Label, Warning 2 (English)ENGLISH |
8JP-K7762-70-00 |
US $3.89 |
||
|
46
|
46
8JP-K7762-S0-00 Label, Warning 2 (French)FRENCH |
8JP-K7762-S0-00 |
US $3.74 |
||
|
47
|
47
8JP-F197C-00-00 Protector, Frame 3 |
8JP-F197C-00-00 |
US $10.53 |
||
|
48
|
48
8JP-F197B-00-00 Protector, Frame |
8JP-F197B-00-00 |
US $10.53 |
||
|
49
|
49
8JP-F4141-00-00 Protector, Fuel Tank |
8JP-F4141-00-00 |
US $15.21 |
||
|
50
|
50
8JR-F1978-00-00 Protector, Frame |
8JR-F1978-00-00 |
US $84.22 |
||
|
51
|
51
8JP-F8100-00-00 Tool Kit |
8JP-F8100-00-00 |
US $84.73 |
||
|
52
|
52
8KN-RAP01-00-00 Decal, Frame 1 |
8KN-RAP01-00-00 |
US $32.87 |
||
|
53
|
53
8KN-RAP02-00-00 Decal, Frame 2 |
8KN-RAP02-00-00 |
US $34.65 |
||
|
54
|
54
8KN-RAP03-00-00 Decal, Frame 3 |
8KN-RAP03-00-00 |
US $12.56 |
||
|
55
|
55
8KN-RAP04-00-00 Decal, Frame 4 |
8KN-RAP04-00-00 |
US $12.56 |
||
|
56
|
56
8KN-RAP05-00-00 Decal, Frame 5 |
8KN-RAP05-00-00 |
US $39.13 |
||
|
57
|
57
8KN-RAP06-00-00 Decal, Frame 6 |
8KN-RAP06-00-00 |
US $40.32 |
||
