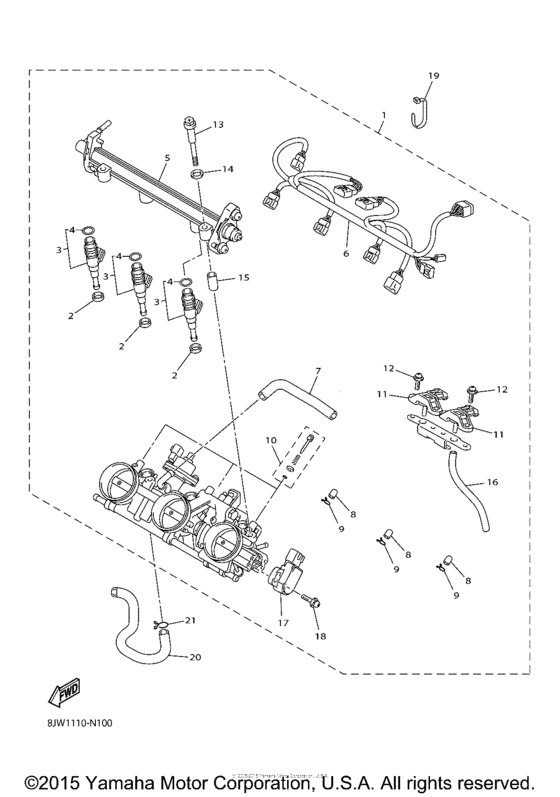

Intake (2) Diagram Yamaha SR10/ SRV10 SR Viper L-TX LE 1.75
- Model code
- 8KP1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX LE 1.75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JK-13750-00-00 Throttle Body Assy |
8JK-13750-00-00 |
US $1,787.23 |
||
|
2
|
2
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
3
|
3
8GC-13761-00-00 Injector |
8GC-13761-00-00 |
from US $125.45 |
||
|
4
|
4
8GC-13769-00-00 O-Ring |
8GC-13769-00-00 |
from US $7.93 |
||
|
5
|
5
8GL-13930-00-00 Pipe Inlet Assembly |
8GL-13930-00-00 |
from US $150.59 |
||
|
6
|
6
8GL-82386-01-00 Extension, Wire Harness |
8GL-82386-01-00 |
from US $95.19 |
||
|
7
|
7
8GL-13895-00-00 Hose, Air |
8GL-13895-00-00 |
from US $13.60 |
||
|
8
|
8
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
|
9
|
9
8A7-14139-00-00 Clip, Pipe |
8A7-14139-00-00 |
from US $3.40 |
||
|
10
|
10
8GL-14503-00-00 Adjust Screw Set |
8GL-14503-00-00 |
from US $9.63 |
||
|
11
|
11
2C0-82380-10-00 Sensor, Pressure |
2C0-82380-10-00 |
from US $150.59 |
||
|
12
|
12
8GL-14592-00-00 Screw |
8GL-14592-00-00 |
from US $1.98 |
||
|
13
|
13
8GL-13573-00-00 Bolt 1 |
8GL-13573-00-00 |
from US $7.23 |
||
|
14
|
14
8GL-13571-00-00 Washer |
8GL-13571-00-00 |
from US $1.70 |
||
|
15
|
15
8GL-14534-00-00 Collar |
8GL-14534-00-00 |
from US $4.39 |
||
|
16
|
16
5PW-14349-00-00 Pipe |
5PW-14349-00-00 |
from US $6.94 |
||
|
17
|
17
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
17
|
17
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
18
|
18
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
19
|
19
8JP-RAB04-00-00 Clamp, 2 (11.5 Inch)11.5 INCH UR UN |
8JP-RAB04-00-00 |
US $5.80 |
||
|
19
|
19
8JM-RAB01-00-00 Clamp, 2 (8 Inch)8 INCH UR UN |
8JM-RAB01-00-00 |
US $6.30 |
||
|
20
|
20
8JP-E3545-00-00 Hose 1 |
8JP-E3545-00-00 |
US $14.02 |
||
|
21
|
21
8JP-RAB26-00-00 Clamp, 2424 |
8JP-RAB26-00-00 |
US $8.64 |
||
