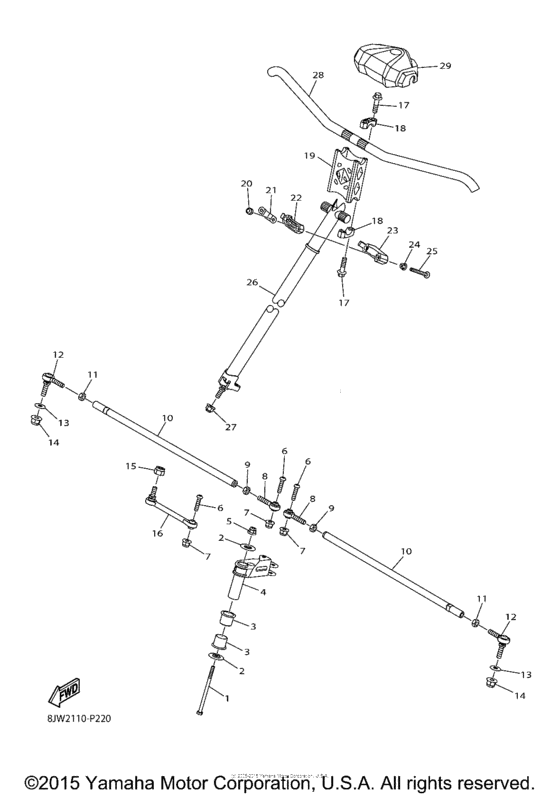

Steering Diagram Yamaha SR10/ SRV10 SR Viper L-TX LE 1.75
- Model code
- 8KP1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX LE 1.75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-RA1B0-00-00 Bolt, Hex. M6X1X100 |
8JP-RA1B0-00-00 |
US $2.27 |
||
|
2
|
2
8JP-RA432-00-00 Washer, 1 |
8JP-RA432-00-00 |
US $4.68 |
||
|
3
|
3
8JP-RA816-00-00 Bush, 7 |
8JP-RA816-00-00 |
US $20.34 |
||
|
4
|
4
8JP-F389G-00-00 Arm, Pivot |
8JP-F389G-00-00 |
US $53.57 |
||
|
5
|
5
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
6
|
6
8JP-RA274-00-00 Screw, M8X1.25X37M8X1.25X37 |
8JP-RA274-00-00 |
US $2.84 |
||
|
7
|
7
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
8
|
8
8JP-F3845-00-00 Joint, Universal 2 |
8JP-F3845-00-00 |
US $53.57 |
||
|
9
|
9
8JP-RA369-00-00 Nut, Hex. M10X1.25 |
8JP-RA369-00-00 |
US $12.80 |
||
|
10
|
10
8JP-F3831-00-00 Rod, Tie |
8JP-F3831-00-00 |
US $27.74 |
||
|
11
|
11
8JP-RA368-00-00 Nut, Hex. M10-1.25 |
8JP-RA368-00-00 |
US $0.95 |
||
|
12
|
12
8JP-F3847-00-00 Joint, Universal 3 |
8JP-F3847-00-00 |
US $67.34 |
||
|
13
|
13
8JP-RA454-00-00 Washer, Plane M10X20X2.30M10X20X2.30 |
8JP-RA454-00-00 |
US $7.75 |
||
|
14
|
14
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
15
|
15
8JP-RA371-00-00 Nut, Hex. Locking M10X1.25M10X1.25 |
8JP-RA371-00-00 |
US $1.58 |
||
|
16
|
16
8JP-F3821-00-00 Rod, Steering Relay |
8JP-F3821-00-00 |
US $70.42 |
||
|
17
|
17
8JP-RA188-00-00 Bolt, Flange M8X1.25X30M8X1.25X30 |
8JP-RA188-00-00 |
US $1.57 |
||
|
18
|
18
8JP-F3814-10-00 Holder, Handle Upper |
8JP-F3814-10-00 |
US $18.49 |
||
|
19
|
19
8JP-F381B-10-00 Joint |
8JP-F381B-10-00 |
US $115.99 |
||
|
20
|
20
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
21
|
21
8JP-F3872-00-00 Holder, Bearing |
8JP-F3872-00-00 |
US $4.05 |
||
|
22
|
22
8JP-F3812-00-00 Bearing, Steering |
8JP-F3812-00-00 |
US $9.38 |
||
|
23
|
23
8JP-F3812-20-00 Bearing, Steering |
8JP-F3812-20-00 |
US $6.46 |
||
|
24
|
24
8JP-RA379-00-00 Nut, Lock 1 |
8JP-RA379-00-00 |
US $3.60 |
||
|
25
|
25
8JP-RA299-00-00 Screw, 1010 |
8JP-RA299-00-00 |
US $3.67 |
||
|
26
|
26
8JP-F3813-00-00 Column, Steering 2 |
8JP-F3813-00-00 |
US $176.80 |
||
| replacement | |||||
|
26
|
26
8JP-F3813-01-00 COLUMN, STEERING 2 |
8JP-F3813-01-00 |
US $188.41 |
||
|
27
|
27
8JP-RA378-00-00 Nut, Lock |
8JP-RA378-00-00 |
US $1.22 |
||
| replacement | |||||
|
27
|
27
8JP-RA378-01-00 LOCK NUT |
8JP-RA378-01-00 |
US $7.30 |
||
|
28
|
28
8JP-F6111-00-00 Handlebar |
8JP-F6111-00-00 |
US $98.23 |
||
|
29
|
29
8JP-F6124-00-00 Protector, Handlebar |
8JP-F6124-00-00 |
US $20.34 |
||
