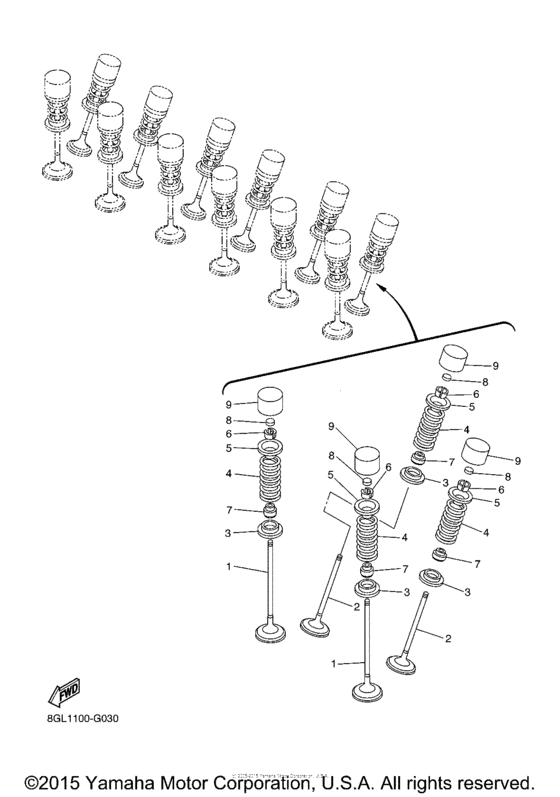

Valve Diagram Yamaha SR10/ SRV10 SR Viper L-TX SE
- Model code
- 8JY2
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper L-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-12111-01-00 Valve, Intake |
8GL-12111-01-00 |
from US $14.17 |
||
| replacement | |||||
|
1
|
1
8GL-12111-10-00 Valve, Intake |
8GL-12111-10-00 |
from US $14.17 |
||
|
2
|
2
8GL-12121-00-00 Valve, Exhaust |
8GL-12121-00-00 |
from US $26.64 |
||
| replacement | |||||
|
2
|
2
8GL-12121-10-00 Valve, Exhaust |
8GL-12121-10-00 |
from US $26.64 |
||
|
3
|
3
3D7-12116-00-00 Seat, Valve Spring |
3D7-12116-00-00 |
from US $2.66 |
||
|
4
|
4
8GL-12113-00-00 Spring, Valve Inner |
8GL-12113-00-00 |
from US $5.38 |
||
|
5
|
5
3D7-12117-00-00 Retainer, Valve Spring |
3D7-12117-00-00 |
from US $2.98 |
||
|
6
|
6
1WG-12118-00-00 Valve Spring Retainer Lock |
1WG-12118-00-00 |
from US $1.84 |
||
|
7
|
7
4TE-12119-00-00 Seal, Valve Stem |
4TE-12119-00-00 |
from US $2.98 |
||
|
8
|
8
1HX-12168-H1-00 Pad, Adjusting 2 (1.55)1.55 UR |
1HX-12168-H1-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-K1-00 Pad, Adjusting 2 (1.60)1.60 UR |
1HX-12168-K1-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-F0-00 Pad, Adjusting 2 (1.50)1.50 UR |
1HX-12168-F0-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-A0-00 Pad, Adjusting 2 (1.45)1.45 UR |
1HX-12168-A0-00 |
from US $5.89 |
||
|
8
|
8
1HX-12168-80-00 Pad, Adjusting 2 (1.40)1.40 UR |
1HX-12168-80-00 |
from US $6.62 |
||
|
8
|
8
1HX-12168-60-00 Pad, Adjusting 2 (1.35)1.35 UR |
1HX-12168-60-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-40-00 Pad, Adjusting 2 (1.30)1.30 UR |
1HX-12168-40-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-20-00 Pad, Adjusting 2 (1.25)1.25 UR |
1HX-12168-20-00 |
from US $7.62 |
||
|
8
|
8
1HX-12168-00-00 Pad, Adjusting 2 (1.20)1.20 UR |
1HX-12168-00-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-M1-00 Pad, Adjusting 2 (1.65)1.65 UR |
1HX-12168-M1-00 |
from US $7.62 |
||
|
8
|
8
1HX-12169-T0-00 Pad, Adjusting 2 (2.40)2.40 UR |
1HX-12169-T0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12168-R1-00 Pad, Adjusting 2 (1.70)1.70 UR |
1HX-12168-R1-00 |
from US $6.62 |
||
|
8
|
8
1HX-12168-U1-00 Pad, Adjusting 2 (1.75)1.75 UR |
1HX-12168-U1-00 |
from US $6.62 |
||
|
8
|
8
1HX-12168-W1-00 Pad, Adjusting 2 (1.80)1.80 UR |
1HX-12168-W1-00 |
from US $6.30 |
||
|
8
|
8
1HX-12168-Y1-00 Pad, Adjusting 2 (1.85)1.85 UR |
1HX-12168-Y1-00 |
from US $8.28 |
||
|
8
|
8
1HX-12169-11-00 Pad, Adjusting 2 (1.90)1.90 UR |
1HX-12169-11-00 |
from US $6.62 |
||
|
8
|
8
1HX-12169-31-00 Pad, Adjusting 2 (1.95)1.95 UR |
1HX-12169-31-00 |
from US $6.96 |
||
|
8
|
8
1HX-12169-50-00 Pad, Adjusting 2 (2.00)2.00 UR |
1HX-12169-50-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-70-00 Pad, Adjusting 2 (2.05)2.05 UR |
1HX-12169-70-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-90-00 Pad, Adjusting 2 (2.10)2.10 UR |
1HX-12169-90-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-E0-00 Pad, Adjusting 2 (2.15)2.15 UR |
1HX-12169-E0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-G0-00 Pad, Adjusting 2 (2.20)2.20 UR |
1HX-12169-G0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-J0-00 Pad, Adjusting 2 (2.25)2.25 UR |
1HX-12169-J0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-L0-00 Pad, Adjusting 2 (2.30)2.30 UR |
1HX-12169-L0-00 |
from US $8.78 |
||
|
8
|
8
1HX-12169-N0-00 Pad, Adjusting 2 (2.35)2.35 UR |
1HX-12169-N0-00 |
from US $8.78 |
||
|
9
|
9
4C8-12153-09-00 Lifter, Valve (O/s)UR GREEN |
4C8-12153-09-00 |
from US $16.54 |
||
|
9
|
9
4C8-12153-10-00
Lifter, Valve
UR YELLOW |
4C8-12153-10-00 |
— | ||
| replacement | |||||
|
9
|
9
4C8-12153-11-00 Lifter, ValveUR YELLOW |
4C8-12153-11-00 |
from US $24.65 |
||
