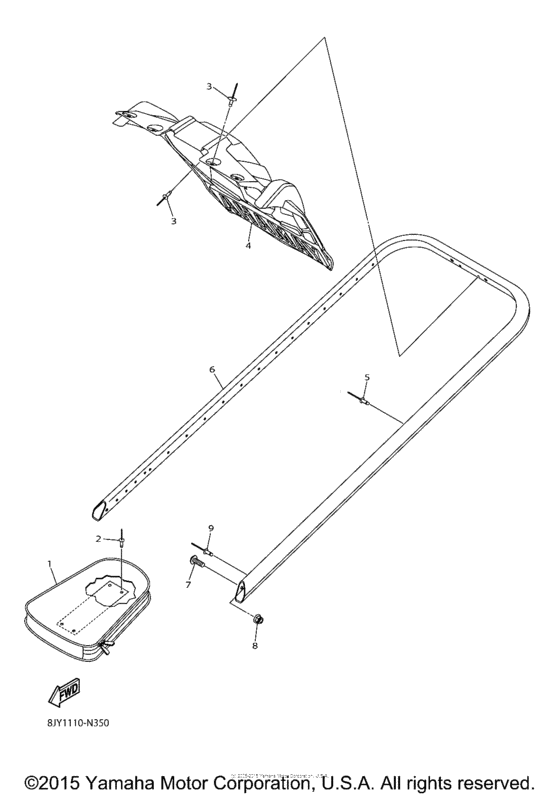

Bumper Diagram Yamaha SR10/ SRV10 SR Viper M-TX 153 SE
- Model code
- 8KS1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper M-TX 153 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JW-F8441-00-00 Saddle Bag 1 |
8JW-F8441-00-00 |
US $58.63 |
||
|
2
|
2
8JP-RA520-00-00 Rivet, 1111 |
8JP-RA520-00-00 |
US $9.50 |
||
|
3
|
3
8JP-RA524-00-00 Rivet, 1515 |
8JP-RA524-00-00 |
US $29.20 |
||
|
4
|
4
8JP-K7595-00-00 Flap |
8JP-K7595-00-00 |
US $70.42 |
||
| replacement | |||||
|
4
|
4
SMA-8JP77-59-BK Flp Snow Flap Bk |
SMA-8JP77-59-BK |
US $38.99 |
||
|
5
|
5
8JP-RA520-00-00 Rivet, 1111 UN |
8JP-RA520-00-00 |
US $9.50 |
||
|
6
|
6
8KG-K7541-10-00 Bumper, Rear 1UR FOR DPBSE |
8KG-K7541-10-00 |
US $176.63 |
||
| replacement | |||||
|
6
|
6
8KG-K7541-40-00 Bumper, Rear 1UR FOR DPBSE |
8KG-K7541-40-00 |
US $252.09 |
||
|
7
|
7
8JP-RA260-00-00 Screw, M6X1.0X20M6X1.0X20 |
8JP-RA260-00-00 |
US $3.60 |
||
|
7
|
7
8KG-K7541-20-00 Bumper, Rear 1UR FOR VRC1 |
8KG-K7541-20-00 |
US $155.18 |
||
| replacement | |||||
|
7
|
7
8KG-K7541-21-00 Bumper, Rear 1UR FOR VRC1 |
8KG-K7541-21-00 |
US $152.86 |
||
|
8
|
8
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
9
|
9
8JP-RA527-00-00 Rivet, 3/163/16 UN |
8JP-RA527-00-00 |
US $14.85 |
||
