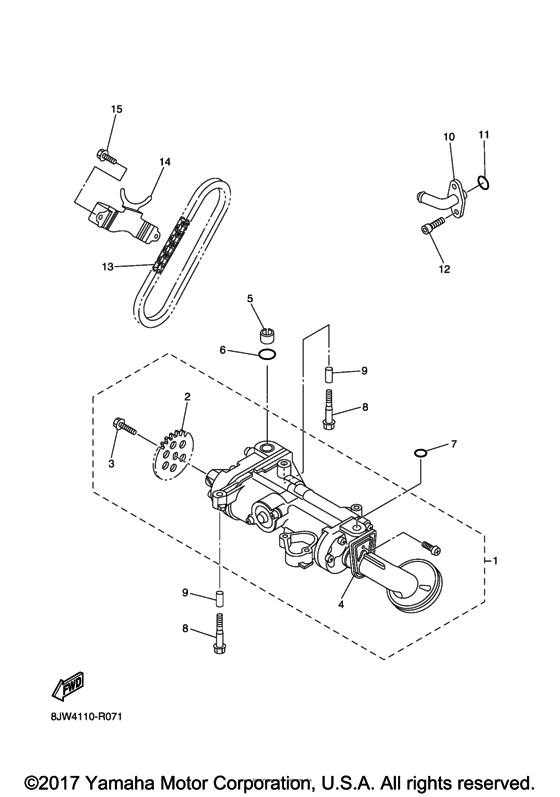

Oil pump Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162
- Model code
- 8LM1
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper M-TX 162
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8GL-13300-00-00 Oil Pump Assy |
8GL-13300-00-00 |
from US $317.77 |
||
|
2
|
2
4XV-13355-00-00 Sprocket, Driven |
4XV-13355-00-00 |
from US $27.77 |
||
|
3
|
3
90105-06066-00 Bolt, Flange |
90105-06066-00 |
from US $1.70 |
||
|
4
|
4
8ES-13427-00-00 Spacer, Strainer |
8ES-13427-00-00 |
from US $7.37 |
||
|
5
|
5
8ES-13284-00-00 Pipe |
8ES-13284-00-00 |
from US $1.42 |
||
|
6
|
6
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
7
|
7
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
8
|
8
95812-06040-00 Bolt, Flange |
95812-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
9
|
9
91808-22019-00 Pin, Dowel(8Ah) |
91808-22019-00 |
from US $1.13 |
||
|
10
|
10
8ES-13115-00-00 Connector, Suction Pipe |
8ES-13115-00-00 |
from US $15.30 |
||
|
11
|
11
932-10166-29-00 O-Ring |
932-10166-29-00 |
from US $1.70 |
||
|
12
|
12
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
13
|
13
94580-25064-00 Chain (Did25 64Le) |
94580-25064-00 |
from US $7.37 |
||
|
14
|
14
8ES-13898-00-00 Holder |
8ES-13898-00-00 |
from US $11.33 |
||
| replacement | |||||
|
14
|
14
8ES-13898-01-00 HOLDER |
8ES-13898-01-00 |
from US $11.33 |
||
|
15
|
15
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
