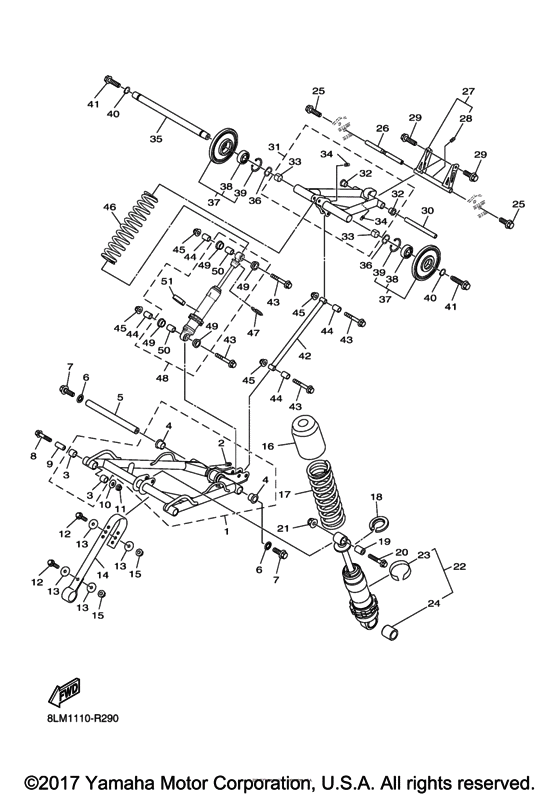

Track suspension 2 Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162
- Model code
- 8LM1
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper M-TX 162
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JR-G7331-10-00 Arm, Pivot 1 |
8JR-G7331-10-00 |
US $353.83 |
||
|
2
|
2
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
3
|
3
8JP-RA812-00-00 Bush, 0.751 |
8JP-RA812-00-00 |
US $11.70 |
||
|
4
|
4
8JP-RA814-00-00 Bush, 5 |
8JP-RA814-00-00 |
US $11.96 |
||
|
5
|
5
8JP-G7486-10-00 Shaft 4 |
8JP-G7486-10-00 |
US $35.37 |
||
|
6
|
6
8JP-RA457-00-00 Washer, Tooth M10 |
8JP-RA457-00-00 |
US $1.62 |
||
|
7
|
7
8KG-RA199-00-00 Bolt, Flg. M10X1.25X30 |
8KG-RA199-00-00 |
US $24.26 |
||
|
8
|
8
8JP-RA296-00-00 Screw, 7 |
8JP-RA296-00-00 |
US $5.27 |
||
|
9
|
9
8JP-RA733-00-00 Collar, 16 |
8JP-RA733-00-00 |
US $22 |
||
|
10
|
10
8JP-RA462-00-00 Washer, Plain |
8JP-RA462-00-00 |
US $5.50 |
||
|
11
|
11
8JP-RA360-00-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
12
|
12
8JP-RA183-00-00 Bolt, Flange M6X1.0X30 |
8JP-RA183-00-00 |
US $3.10 |
||
|
13
|
13
8JP-RA450-00-00 Washer, 6.87X25.4X2.32 |
8JP-RA450-00-00 |
US $4.52 |
||
|
14
|
14
8KG-G7495-00-00 Stopper 1 |
8KG-G7495-00-00 |
US $17.95 |
||
|
15
|
15
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
16
|
16
8JP-F2211-00-00 Cover |
8JP-F2211-00-00 |
US $31.19 |
||
|
17
|
17
8JR-G7336-00-00 Spring |
8JR-G7336-00-00 |
US $92.77 |
||
|
18
|
18
8JP-F2214-00-00 Guide, Spring 1 |
8JP-F2214-00-00 |
US $11.16 |
||
|
19
|
19
8KV-RA726-00-00 Collar, 14 |
8KV-RA726-00-00 |
US $11.18 |
||
|
20
|
20
8JP-RA1A2-00-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-00-00 |
US $11.90 |
||
| replacement | |||||
|
20
|
20
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
21
|
21
8JP-RA360-10-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-10-00 |
US $6.28 |
||
|
22
|
22
8JR-F2201-20-00 Damper Sub Assy |
8JR-F2201-20-00 |
US $226.37 |
||
|
23
|
23
8JP-F2259-70-00 Label, Warning |
8JP-F2259-70-00 |
US $3.13 |
||
|
24
|
24
8JP-RA730-00-00 Collar, 22.4 |
8JP-RA730-00-00 |
US $9.54 |
||
|
25
|
25
8JP-RA186-00-00 Bolt, Flange M8X1.25X25 |
8JP-RA186-00-00 |
US $1.44 |
||
|
26
|
26
8JR-G7488-00-00 Shaft 6 |
8JR-G7488-00-00 |
US $54.07 |
||
|
27
|
27
8JR-G7417-10-00 Bracket 3 |
8JR-G7417-10-00 |
US $86.56 |
||
|
28
|
28
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
29
|
29
8JP-RA198-10-00 Bolt, Flange M10X1.25X30 |
8JP-RA198-10-00 |
US $18.28 |
||
|
30
|
30
8JR-G7487-10-00 Shaft 5 |
8JR-G7487-10-00 |
US $40.16 |
||
|
31
|
31
8JR-G7332-20-00 Arm, Pivot 2 |
8JR-G7332-20-00 |
US $159.30 |
||
|
32
|
32
8JP-RA812-00-00 Bush, 0.751 |
8JP-RA812-00-00 |
US $11.70 |
||
|
33
|
33
8JP-RA815-00-00 Bush, 6 |
8JP-RA815-00-00 |
US $29.78 |
||
|
34
|
34
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
35
|
35
8JR-G7475-10-00 Shaft 2 |
8JR-G7475-10-00 |
US $393.19 |
||
|
36
|
36
8JP-RA463-00-00 Washer, Wave |
8JP-RA463-00-00 |
US $8.96 |
||
|
37
|
37
8JR-G7312-00-00 Wheel, Suspension 2 |
8JR-G7312-00-00 |
US $68.89 |
||
|
38
|
38
8JP-RAG08-00-00 Bearing, 3 |
8JP-RAG08-00-00 |
US $22.03 |
||
|
39
|
39
8JP-RAH10-00-00 Circlip, 4 |
8JP-RAH10-00-00 |
US $13.40 |
||
|
40
|
40
8JP-RAH11-00-00 Circlip, 5 |
8JP-RAH11-00-00 |
US $1.89 |
||
|
41
|
41
8JP-RA196-00-00 Bolt, Flange M10X1.25X30 |
8JP-RA196-00-00 |
US $19.04 |
||
|
42
|
42
8JR-G7494-10-00 Rod, Relay |
8JR-G7494-10-00 |
US $64.91 |
||
|
43
|
43
8JP-RA1A2-00-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-00-00 |
US $11.90 |
||
| replacement | |||||
|
43
|
43
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
44
|
44
8JP-RA724-10-00 Collar, 12 |
8JP-RA724-10-00 |
US $8.74 |
||
|
45
|
45
8JP-RA360-10-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-10-00 |
US $6.28 |
||
|
46
|
46
8KG-G7489-00-00 Spring 1 |
8KG-G7489-00-00 |
US $90.32 |
||
|
47
|
47
8JP-F2214-00-00 Guide, Spring 1 |
8JP-F2214-00-00 |
US $11.16 |
||
|
48
|
48
8LM-G7480-00-00 Shock Absorber |
8LM-G7480-00-00 |
US $381.85 |
||
|
49
|
49
8JP-RA804-00-00 Bush, 3 |
8JP-RA804-00-00 |
US $22.54 |
||
|
50
|
50
8JP-RA728-00-00 Collar, 14.5 |
8JP-RA728-00-00 |
US $14.13 |
||
|
51
|
51
8JP-F2259-70-00 Label, Warning |
8JP-F2259-70-00 |
US $3.13 |
||
