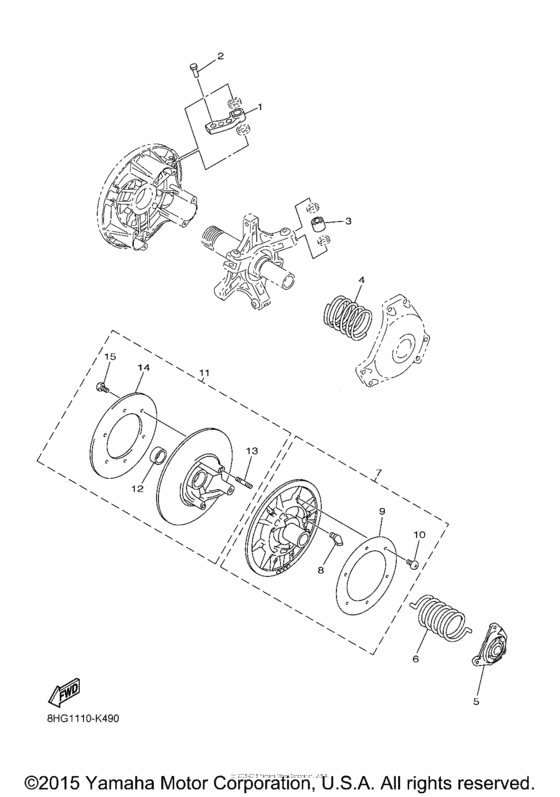

Alternate drive setting (1) Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162 LE
- Model code
- 8KU1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper M-TX 162 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-17605-10-00 Weight CompUR |
8FA-17605-10-00 |
from US $59.82 |
||
|
1
|
1
8ES-17605-00-00 Weight CompUR |
8ES-17605-00-00 |
from US $56.51 |
||
|
1
|
1
8FP-17605-00-00 Weight CompUR |
8FP-17605-00-00 |
from US $56.51 |
||
|
1
|
1
8FN-17605-00-00 Weight CompUR |
8FN-17605-00-00 |
from US $58.99 |
||
|
1
|
1
8HG-17605-00-00 Weight CompUR |
8HG-17605-00-00 |
from US $54.85 |
||
|
1
|
1
8GC-17605-00-00 Weight CompUR |
8GC-17605-00-00 |
from US $43.52 |
||
|
1
|
1
8DN-17605-30-00 Weight CompUR |
8DN-17605-30-00 |
from US $45.59 |
||
|
1
|
1
8GL-17605-00-00 Weight CompUR |
8GL-17605-00-00 |
from US $49.74 |
||
|
1
|
1
8HF-17605-00-00 Weight CompUR |
8HF-17605-00-00 |
from US $58.30 |
||
|
1
|
1
8FS-17605-00-00 Weight CompUR |
8FS-17605-00-00 |
from US $59.82 |
||
|
2
|
2
90261-06019-00 Rivet, Countersunk (St13.3Mm)UR |
90261-06019-00 |
from US $1.56 |
||
|
2
|
2
90261-06015-00 Rivet, Countersunk (St10.3Mm)UR |
90261-06015-00 |
from US $1.35 |
||
|
2
|
2
90266-06001-00 Rivet (Al13.3)UR |
90266-06001-00 |
from US $1.42 |
||
|
2
|
2
90266-06002-00 Rivet (St13.3)UR |
90266-06002-00 |
from US $1.84 |
||
|
2
|
2
90269-06006-00 Rivet (St17.2)UR |
90269-06006-00 |
from US $1.84 |
||
|
2
|
2
90261-06034-00 Rivet, Countersunk (St13.9Mm)UR |
90261-06034-00 |
from US $1.56 |
||
|
2
|
2
90261-06028-00 Rivet, Countersunk (Al10.3Mm)UR |
90261-06028-00 |
from US $1.35 |
||
|
2
|
2
902-61060-33-00 Rivet, Countersunk (St17.2Mm)UR |
902-61060-33-00 |
from US $1.84 |
||
|
3
|
3
8FG-17624-00-00 Roller, CompUR |
8FG-17624-00-00 |
from US $37.03 |
||
|
3
|
3
8FG-17624-20-00 Roller, CompUR |
8FG-17624-20-00 |
from US $53.47 |
||
|
3
|
3
8FG-17624-30-00 Roller, CompUR |
8FG-17624-30-00 |
from US $53.47 |
||
|
3
|
3
8FG-17624-10-00 Roller, CompUR |
8FG-17624-10-00 |
from US $38.96 |
||
|
3
|
3
8FG-17624-40-00 Roller, CompUR |
8FG-17624-40-00 |
from US $53.47 |
||
|
4
|
4
90501-551L3-00 Spring, CompressionUR BL-P-BL |
90501-551L3-00 |
from US $26.49 |
||
|
4
|
4
90501-552L5-00 Spring, CompressionUR BL-GR-BL |
90501-552L5-00 |
from US $26.49 |
||
|
4
|
4
90501-581L5-00 Spring, CompressionUR Y-P-Y |
90501-581L5-00 |
from US $28.34 |
||
|
4
|
4
90501-581L6-00 Spring, CompressionUR GR-P-GR |
90501-581L6-00 |
from US $28.34 |
||
|
4
|
4
90501-582L1-00 Spring, CompressionUR Y-SL-Y |
90501-582L1-00 |
from US $28.34 |
||
|
4
|
4
90501-582L2-00 Spring, CompressionUR GR-SL-GR |
90501-582L2-00 |
from US $28.34 |
||
|
4
|
4
90501-582L6-00 Spring, CompressionUR WH-GR-WH |
90501-582L6-00 |
from US $28.34 |
||
|
4
|
4
90501-582L7-00 Spring, CompressionUR Y-GR-Y |
90501-582L7-00 |
from US $28.34 |
||
|
4
|
4
90501-583L0-00 Spring, CompressionUR BL-WH-BL |
90501-583L0-00 |
from US $28.34 |
||
|
4
|
4
90501-583L1-00 Spring, CompressionUR WH-WH-WH |
90501-583L1-00 |
from US $28.34 |
||
|
4
|
4
90501-583L4-00 Spring, CompressionUR WH-SL-WH |
90501-583L4-00 |
from US $28.34 |
||
|
4
|
4
90501-583L5-00 Spring, CompressionUR WH-P-WH |
90501-583L5-00 |
from US $28.34 |
||
|
4
|
4
90501-601L7-00 Spring, CompressionUR P-P-P |
90501-601L7-00 |
from US $28.34 |
||
|
4
|
4
90501-601L8-00 Spring, CompressionUR OR-P-OR |
90501-601L8-00 |
from US $28.34 |
||
|
4
|
4
90501-602L3-00 Spring, CompressionUR P-SL-P |
90501-602L3-00 |
from US $26.49 |
||
|
4
|
4
90501-602L8-00 Spring, CompressionUR GR-GR-GR |
90501-602L8-00 |
from US $28.34 |
||
|
4
|
4
90501-602L9-00 Spring, CompressionUR P-GR-P |
90501-602L9-00 |
from US $29.33 |
||
|
4
|
4
90501-603L2-00 Spring, CompressionUR Y-WH-Y |
90501-603L2-00 |
from US $30.89 |
||
|
4
|
4
905-01603-L3-00 Spring, CompressionUR GR-WH-GR |
905-01603-L3-00 |
from US $30.18 |
||
|
4
|
4
90501-624L8-00 Spring, CompressionUR OR-SL-OR |
90501-624L8-00 |
from US $28.34 |
||
|
4
|
4
905-01550-A2-00 Spring, CompressionUR BL-BL-BL |
905-01550-A2-00 |
from US $24.51 |
||
|
4
|
4
90501-580A1-00 Spring, CompressionUR Y-BL-Y |
90501-580A1-00 |
from US $25.50 |
||
|
4
|
4
90501-600A1-00 Spring, CompressionUR P-BL-P |
90501-600A1-00 |
from US $25.08 |
||
|
4
|
4
905-01550-A3-00 Spring, CompressionUR WH-BL-WH |
905-01550-A3-00 |
from US $21.25 |
||
|
4
|
4
905-01550-A5-00 Spring, CompressionUR BL-Y-BL |
905-01550-A5-00 |
from US $45.04 |
||
|
4
|
4
905-01550-A6-00 Spring, CompressionUR WH-Y-WH |
905-01550-A6-00 |
from US $45.04 |
||
|
4
|
4
905-01580-A3-00 Spring, CompressionUR Y-Y-Y |
905-01580-A3-00 |
from US $24.65 |
||
|
4
|
4
905-01580-A4-00 Spring, CompressionUR GR-Y-GR |
905-01580-A4-00 |
from US $45.59 |
||
|
4
|
4
905-01600-A4-00 Spring, CompressionUR P-Y-P |
905-01600-A4-00 |
from US $45.87 |
||
|
4
|
4
905-01600-A5-00 Spring, CompressionUR OR-Y-OR |
905-01600-A5-00 |
from US $45.87 |
||
|
4
|
4
90501-580A2-00 Spring, CompressionUR BL-BR-BL |
90501-580A2-00 |
from US $57.75 |
||
|
4
|
4
905-01570-A0-00 Spring, CompressionUR BL-SL-BL |
905-01570-A0-00 |
from US $22.95 |
||
|
5
|
5
8BV-17604-91-00 Seat Spring SetUR |
8BV-17604-91-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-71-00 Seat Spring SetUR |
8BV-17604-71-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-51-00 Seat Spring SetUR |
8BV-17604-51-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-11-00 Seat Spring SetUR |
8BV-17604-11-00 |
from US $142.30 |
||
|
5
|
5
8BV-17604-31-00 Seat Spring SetUR |
8BV-17604-31-00 |
from US $142.30 |
||
|
5
|
5
8FA-17604-00-00 Seat Spring SetUR |
8FA-17604-00-00 |
from US $82.07 |
||
|
6
|
6
90508-500B1-00 Spring, TorsionUR BROWN |
90508-500B1-00 |
from US $15.87 |
||
|
6
|
6
905-08600-12-00 Spring, TorsionUR PINK |
905-08600-12-00 |
from US $25.22 |
||
|
6
|
6
90508-60007-00 Spring, TorsionUR WHITE |
90508-60007-00 |
from US $24.51 |
||
|
6
|
6
905-08600-18-00 Spring, TorsionUR P-P |
905-08600-18-00 |
from US $35.78 |
||
|
6
|
6
90508-556A2-00 Spring, TorsionUR GREEN |
90508-556A2-00 |
from US $21.96 |
||
|
6
|
6
905-08600-16-00 Spring, TorsionUR WH-WH |
905-08600-16-00 |
from US $35.23 |
||
|
6
|
6
90508-556A7-00 Spring, TorsionUR SILVER |
90508-556A7-00 |
from US $29.19 |
||
|
6
|
6
90508-536A9-00 Spring, TorsionUR RED |
90508-536A9-00 |
from US $9.92 |
||
|
7
|
7
8GL-17660-10-00 Secondary Fixed Sheave CompUR |
8GL-17660-10-00 |
from US $309.48 |
||
|
8
|
8
8AV-17688-10-00 Shoe, RampUR |
8AV-17688-10-00 |
from US $20.69 |
||
|
9
|
9
8CM-17665-00-00 Plate 1UR |
8CM-17665-00-00 |
from US $24.65 |
||
|
10
|
10
90150-05040-00 Screw, Round HeadUR |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
985-07050-08-00 Screw, Pan HeadUR |
985-07050-08-00 |
from US $1.07 |
||
|
11
|
11
8BU-17670-10-00 Secondary Sliding SheaveUR |
8BU-17670-10-00 |
from US $288.72 |
||
|
12
|
12
90384-38243-00 Bush, Bimetal FormedUR |
90384-38243-00 |
from US $30.89 |
||
|
13
|
13
95617-08630-00 Bolt, StudUR |
95617-08630-00 |
from US $3.68 |
||
|
14
|
14
8CM-17675-00-00 Plate 2UR |
8CM-17675-00-00 |
from US $24.65 |
||
|
15
|
15
90150-05040-00 Screw, Round HeadUR |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
985-07050-08-00 Screw, Pan HeadUR |
985-07050-08-00 |
from US $1.07 |
||
