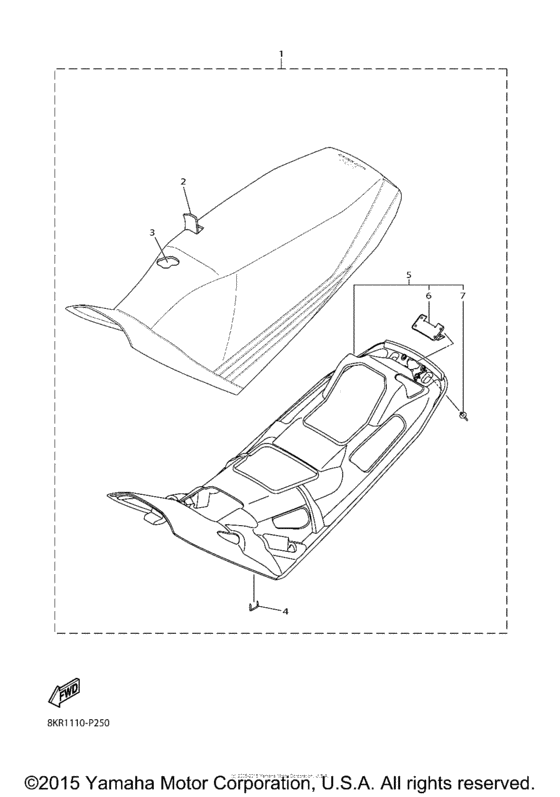

Seat Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162 LE
- Model code
- 8KU1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper M-TX 162 LE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KR-F4710-00-00 Single Seat Assy |
8KR-F4710-00-00 |
US $720.67 |
||
|
2
|
2
8KR-F470F-00-00 Seat Cover Comp |
8KR-F470F-00-00 |
US $340.36 |
||
|
3
|
3
8JR-F4713-00-00 Cushion |
8JR-F4713-00-00 |
US $156.04 |
||
|
4
|
4
8JM-F473U-00-00 Staple |
8JM-F473U-00-00 |
US $178.33 |
||
|
5
|
5
8JP-F470E-00-00 Bottom Plate Comp |
8JP-F470E-00-00 |
US $205.96 |
||
|
6
|
6
8JP-F475H-00-00 Bracket, Seat Lever 1 |
8JP-F475H-00-00 |
US $21.87 |
||
|
7
|
7
8JP-RA523-00-00 Rivet, 1414 |
8JP-RA523-00-00 |
US $17.60 |
