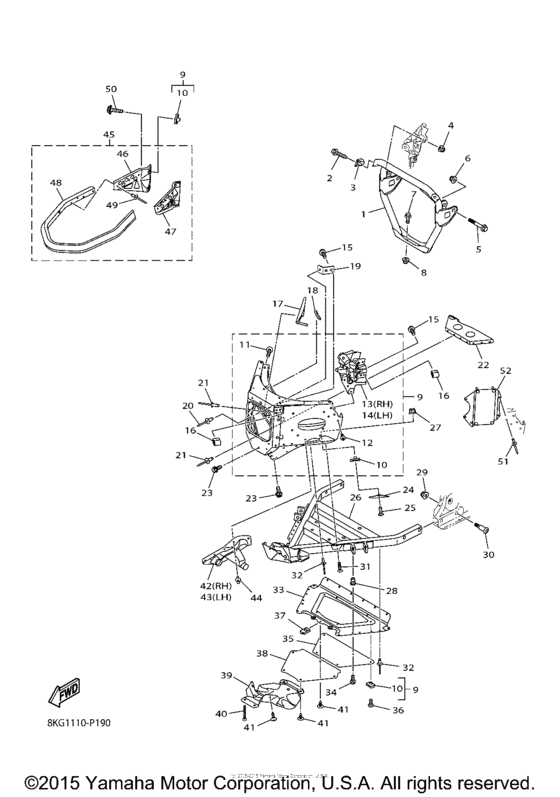

Frame (1) Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162 SE
- Model code
- 8KT1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper M-TX 162 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-F194E-00-00 Bracket, Engine |
8JP-F194E-00-00 |
US $262.69 |
||
| replacements | |||||
|
1
|
1
8JP-F194E-10-00 BRACKET, ENGINE |
8JP-F194E-10-00 |
US $262.69 |
||
|
1
|
1
8JP-F194E-20-00 Bracket, Engine |
8JP-F194E-20-00 |
US $279.97 |
||
|
2
|
2
8JP-RA188-00-00 Bolt, Flange M8X1.25X30M8X1.25X30 |
8JP-RA188-00-00 |
US $1.57 |
||
|
3
|
3
8JP-F3775-00-00 Insert |
8JP-F3775-00-00 |
US $2.99 |
||
|
4
|
4
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
5
|
5
8JP-RA1A5-00-00 Bolt, Flange M12X1.25X75M12X1.25X75 |
8JP-RA1A5-00-00 |
US $24.62 |
||
|
6
|
6
8JP-RA362-00-00 Nut, Flange Locking M12X1.25M12X1.25 |
8JP-RA362-00-00 |
from US $1.60 |
||
|
7
|
7
8JP-RA195-00-00 Bolt, Flange M10X1.25X25M10X1.25X25 |
8JP-RA195-00-00 |
US $4.55 |
||
|
8
|
8
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
9
|
9
8KG-F191A-00-00 Bulkhead |
8KG-F191A-00-00 |
US $418.27 |
||
|
10
|
10
8JP-RA354-00-00 Nut, Clip M6M6 |
8JP-RA354-00-00 |
US $6.55 |
||
|
11
|
11
8JP-RA281-00-00 Screw, Tapping M6X1X20M6X1X20 |
8JP-RA281-00-00 |
US $5.68 |
||
|
12
|
12
8JP-RA271-00-00 Screw, M6X1X16M6X1X16 |
8JP-RA271-00-00 |
US $12.80 |
||
|
13
|
13
8KG-F377J-00-00 Holder, Absorber 2 |
8KG-F377J-00-00 |
US $115.22 |
||
|
14
|
14
8KG-F376J-00-00 Holder, Absorber |
8KG-F376J-00-00 |
US $119.45 |
||
|
15
|
15
8JP-RA180-00-00 Bolt, Flange M6X1.0X16M6X1.0X16 |
8JP-RA180-00-00 |
US $17.44 |
||
|
16
|
16
8JP-F2219-00-00 Bracket, Upper |
8JP-F2219-00-00 |
US $19.01 |
||
|
17
|
17
8JP-F131G-00-00 Bracket, Stopper Steeering |
8JP-F131G-00-00 |
US $35.53 |
||
|
18
|
18
8JP-F15B3-00-00 Trim (3 Feet)FEET |
8JP-F15B3-00-00 |
US $26.08 |
||
|
19
|
19
8JP-F1138-00-00 Gusset |
8JP-F1138-00-00 |
US $2.86 |
||
|
20
|
20
8JP-RA527-00-00 Rivet, 3/163/16 |
8JP-RA527-00-00 |
US $14.85 |
||
|
21
|
21
8JP-RA520-00-00 Rivet, 1111 UN |
8JP-RA520-00-00 |
US $9.50 |
||
|
22
|
22
8JP-F198E-00-00
Reinforcement, Frame 3
|
8JP-F198E-00-00 |
— | ||
| replacement | |||||
|
22
|
22
SMA-8JPST-BR-KT REINFORCEMENT FRAME |
SMA-8JPST-BR-KT |
US $70.76 |
||
|
23
|
23
8JP-RA279-00-00 Screw, Tapping 1/4-20X5/81/4-20X5/8 |
8JP-RA279-00-00 |
US $2.70 |
||
|
24
|
24
8KG-F194X-00-00 Bracket 1 |
8KG-F194X-00-00 |
US $12.11 |
||
|
25
|
25
8KG-RA235-00-00 Screw, 1 |
8KG-RA235-00-00 |
US $0.58 |
||
|
26
|
26
8JW-F196A-30-00 Frame Under 1 |
8JW-F196A-30-00 |
US $394.74 |
||
| replacement | |||||
|
26
|
26
8KC-F196A-10-00 Frame Under 1 |
8KC-F196A-10-00 |
US $420.70 |
||
|
27
|
27
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
28
|
28
8JP-RA331-00-00 Nut, Hexagon M8M8 |
8JP-RA331-00-00 |
US $3.51 |
||
|
29
|
29
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
30
|
30
8JP-RA275-00-00 Screw, M8X1.25X44.16M8X1.25X44.16 |
8JP-RA275-00-00 |
US $13.04 |
||
|
31
|
31
8JP-RA258-00-00 Screw, M6X1.0X20M6X1.0X20 |
8JP-RA258-00-00 |
US $1.13 |
||
|
32
|
32
8JP-RA518-00-00 Rivet, 9 |
8JP-RA518-00-00 |
US $8.60 |
||
|
33
|
33
8JP-F196E-00-00 Frame, Under 2 |
8JP-F196E-00-00 |
US $197.28 |
||
|
34
|
34
8JP-RA245-00-00 Screw, M5X0.8X20M5X0.8X20 |
8JP-RA245-00-00 |
US $5.54 |
||
|
35
|
35
8JP-F2863-00-00 Cover, Under |
8JP-F2863-00-00 |
US $18.49 |
||
|
36
|
36
8JP-RA255-00-00 Screw, M6X1.0X16M6X1.0X16 |
8JP-RA255-00-00 |
US $4.04 |
||
|
37
|
37
8JP-RA349-00-00 Nut, Clip |
8JP-RA349-00-00 |
US $3.10 |
||
|
38
|
38
8JP-F114G-00-00 Panel, Under |
8JP-F114G-00-00 |
US $14.67 |
||
|
39
|
39
8JP-F2865-00-00 Cover, Front |
8JP-F2865-00-00 |
US $21.04 |
||
|
40
|
40
8JP-RA2A1-00-00 Screw, 1212 |
8JP-RA2A1-00-00 |
US $10.60 |
||
| replacement | |||||
|
40
|
40
8JP-RA276-00-00 Screw,tapping12 |
8JP-RA276-00-00 |
US $8.84 |
||
|
41
|
41
8JM-RA201-00-00 Screw, Tapping 10-12X5/810-12X5/8 |
8JM-RA201-00-00 |
US $12.25 |
||
| replacement | |||||
|
41
|
41
8KC-RA290-00-00 SCREW, 10-12X3/410-12X5/8 |
8KC-RA290-00-00 |
US $12.70 |
||
|
42
|
42
8JP-F198J-00-00 Cover 3 |
8JP-F198J-00-00 |
US $42.80 |
||
|
43
|
43
8JP-F198F-00-00 Cover 1 |
8JP-F198F-00-00 |
US $42.80 |
||
|
44
|
44
8JP-RA511-00-00 Rivet, 2 |
8JP-RA511-00-00 |
US $6.40 |
||
|
45
|
45
8JP-K7510-00-00 Front Bumper CompUR FOR VRC1 |
8JP-K7510-00-00 |
US $151.63 |
||
|
45
|
45
8JP-K7510-10-00 Front Bumper CompUR FOR DPBSE |
8JP-K7510-10-00 |
US $171.67 |
||
|
46
|
46
8JP-F1959-00-00 Bracket, Front Bumper |
8JP-F1959-00-00 |
US $17.64 |
||
|
47
|
47
8JP-F1949-00-00 Bracket, Front |
8JP-F1949-00-00 |
US $17.64 |
||
|
48
|
48
8JP-K7511-10-00 Bumper, Front 1UR FOR DPBSE |
8JP-K7511-10-00 |
US $119.07 |
||
|
48
|
48
8JP-K7511-00-00 Bumper, Front 1UR FOR VRC1 |
8JP-K7511-00-00 |
US $72.09 |
||
|
49
|
49
8JP-RA520-00-00 Rivet, 1111 UN |
8JP-RA520-00-00 |
US $9.50 |
||
|
50
|
50
8JP-RA270-00-00 Screw, M6X18M6X18 |
8JP-RA270-00-00 |
US $6.32 |
||
|
51
|
51
8JP-RA520-00-00 Rivet, 1111 |
8JP-RA520-00-00 |
US $9.50 |
||
|
52
|
52
8JP-H5991-00-00 Bracket, Unit |
8JP-H5991-00-00 |
US $35.95 |
||
