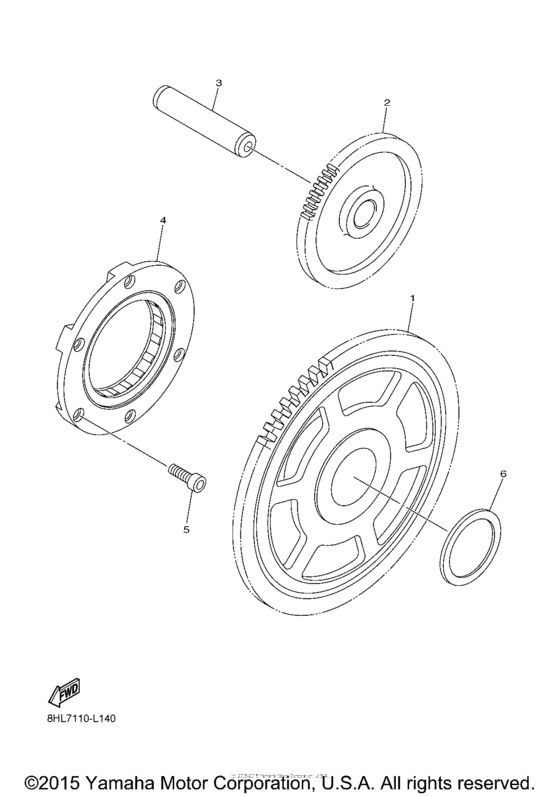

Starter Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162 SE
- Model code
- 8KT1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper M-TX 162 SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8FA-15515-00-00 Gear 3 |
8FA-15515-00-00 |
from US $106.38 |
||
|
2
|
2
8ES-15512-01-00 Gear, Idler 1 |
8ES-15512-01-00 |
from US $76.40 |
||
|
3
|
3
8ES-15521-00-00 Shaft 1 |
8ES-15521-00-00 |
from US $4.11 |
||
|
4
|
4
8HF-15590-00-00 Starter One-Way Assy |
8HF-15590-00-00 |
from US $185.13 |
||
|
5
|
5
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
5
|
5
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
5
|
5
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
|
6
|
6
90201-30013-00 Washer, Plate |
90201-30013-00 |
from US $1.98 |
||
