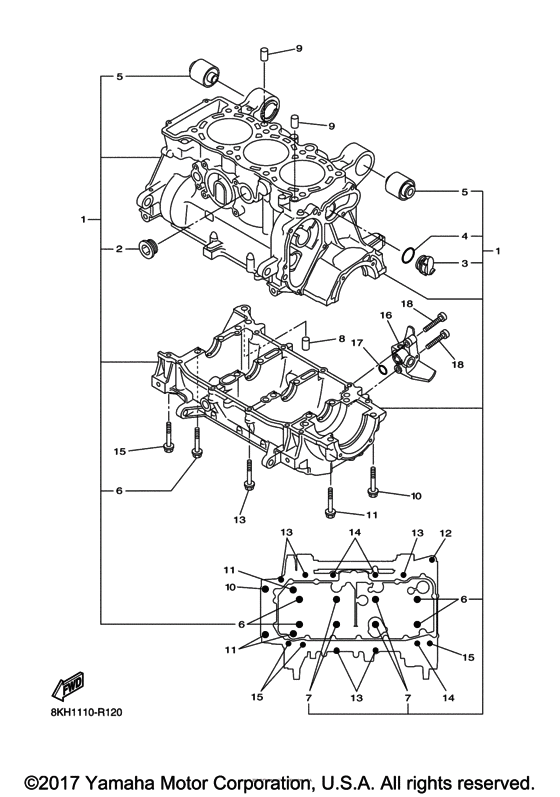

Crankcase Diagram Yamaha SR10/ SRV10 SR Viper M-TX 162 SE
- Model code
- 8KT3
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper M-TX 162 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KH-15109-09-00 Crankcase Assy |
8KH-15109-09-00 |
US $3,162.47 |
||
|
2
|
2
90340-27129-00 Plug, Straight Screw |
90340-27129-00 |
from US $4.68 |
||
|
3
|
3
8ES-15167-00-00 Plug, Blind 1 |
8ES-15167-00-00 |
from US $2.13 |
||
|
4
|
4
93210-24709-00 O-Ring(1Hx) |
93210-24709-00 |
from US $3.12 |
||
|
5
|
5
8FA-2139X-00-00 Damper |
8FA-2139X-00-00 |
from US $30.60 |
||
|
6
|
6
90119-09004-00 Bolt, With Washer |
90119-09004-00 |
from US $5.38 |
||
|
7
|
7
90119-09011-00 Bolt, With Washer |
90119-09011-00 |
from US $28.48 |
||
|
8
|
8
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
8
|
8
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
8
|
8
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
9
|
9
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
10
|
10
95812-08055-00 Bolt, Flange |
95812-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
11
|
11
95812-08070-00 Bolt, Flange |
95812-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
12
|
12
90109-06185-00 Bolt |
90109-06185-00 |
from US $3.26 |
||
|
13
|
13
95812-06055-00 Bolt, Flange |
95812-06055-00 |
from US $1.34 |
||
|
14
|
14
95812-06080-00 Bolt, Flange |
95812-06080-00 |
from US $1.56 |
||
|
15
|
15
90105-06123-00 Bolt, Flange |
90105-06123-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06080-00 Bolt, Flange |
95817-06080-00 |
from US $1.07 |
||
|
16
|
16
8JH-15319-00-00 Joint |
8JH-15319-00-00 |
from US $32.16 |
||
|
17
|
17
93210-13657-00 O-Ring |
93210-13657-00 |
from US $1.28 |
||
|
18
|
18
90110-06177-00 Bolt |
90110-06177-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
