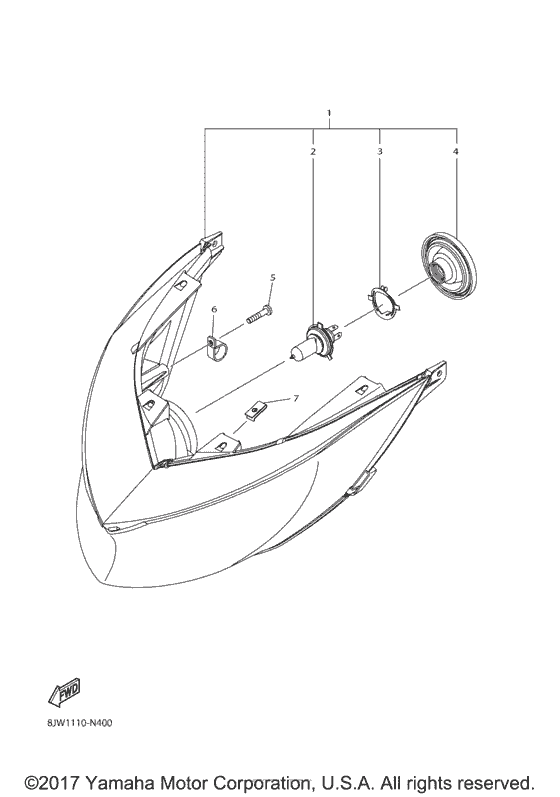

Headlight Diagram Yamaha SR10/ SRV10 SR Viper R-TX DX
- Model code
- 8JP3
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper R-TX DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-H4310-00-00 Headlight Unit Assy |
8JP-H4310-00-00 |
US $353.02 |
||
| replacement | |||||
|
1
|
1
8JP-H4310-10-00 HEADLIGHT UNIT ASS |
8JP-H4310-10-00 |
US $273.26 |
||
|
2
|
2
8JP-H4314-00-00 Bulb, Headlight |
8JP-H4314-00-00 |
US $40.63 |
||
| replacement | |||||
|
2
|
2
8JR-H4314-00-00 BULB, HEADLIGHT |
8JR-H4314-00-00 |
US $17.95 |
||
|
3
|
3
8JP-H4393-00-00 Holder Bulb |
8JP-H4393-00-00 |
US $35.32 |
||
|
4
|
4
8JP-H4397-00-00 Cover, Socket |
8JP-H4397-00-00 |
US $34.38 |
||
|
5
|
5
8JP-RA284-00-00 Screw, Tapping 1/4-10X1.25 |
8JP-RA284-00-00 |
US $9.52 |
||
|
6
|
6
8JP-RAB19-00-00 Clamp, 17 |
8JP-RAB19-00-00 |
US $14.85 |
||
|
7
|
7
8JP-RA355-00-00 Nut, Clip M6X1.0 |
8JP-RA355-00-00 |
US $7.90 |
||
