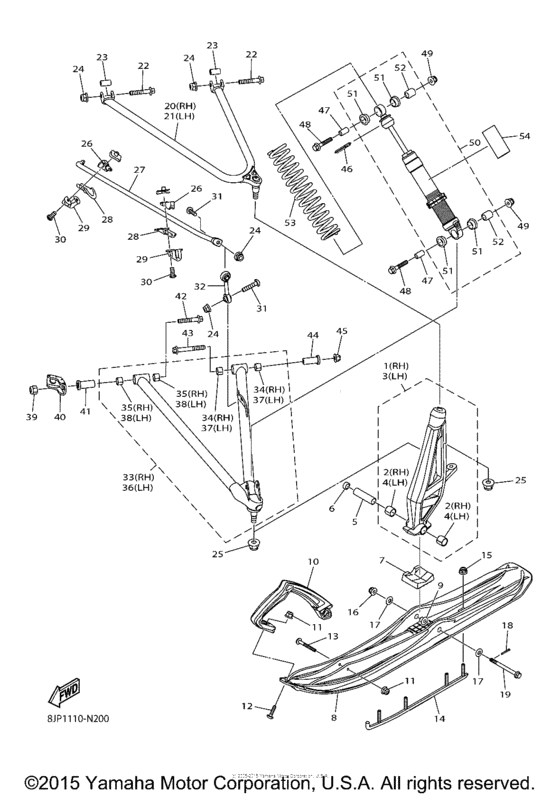

Ski Diagram Yamaha SR10/ SRV10 SR Viper R-TX DX
- Model code
- 8JP1
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Colour
- Yamaha Black
- Color Variant
- A
- Power
- 135 hp
- Model
- SR Viper R-TX DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-F3521-00-00 Knuckle, Steering 2 |
8JP-F3521-00-00 |
US $344.07 |
||
|
2
|
2
8JP-RA806-00-00 Bush, 12Du1212DU12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
3
|
3
8JP-F3511-00-00 Knuckle, Steering 1 |
8JP-F3511-00-00 |
US $333.20 |
||
|
4
|
4
8JP-RA806-00-00 Bush, 12Du1212DU12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
5
|
5
8JP-RA731-00-00 Collar, 7575 |
8JP-RA731-00-00 |
US $30.49 |
||
|
6
|
6
8JP-RA718-00-00 Collar, 6 |
8JP-RA718-00-00 |
US $18.44 |
||
|
7
|
7
8JP-F3743-00-00 Stopper 1 |
8JP-F3743-00-00 |
US $24.23 |
||
|
8
|
8
8JP-F3711-00-00 Ski 1 |
8JP-F3711-00-00 |
US $145.51 |
||
|
9
|
9
8JP-RA722-00-00 Collar, 1010 |
8JP-RA722-00-00 |
US $13.46 |
||
|
10
|
10
8JP-F3712-10-00 Reinforcement, Head |
8JP-F3712-10-00 |
US $21.34 |
||
|
11
|
11
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
12
|
12
8JP-RA263-00-00 Screw, M6X1.0X25M6X1.0X25 |
8JP-RA263-00-00 |
US $14.15 |
||
|
13
|
13
8JP-RA267-00-00 Screw, M6X1.0X50M6X1.0X50 |
8JP-RA267-00-00 |
US $14.24 |
||
|
14
|
14
8JP-F3731-00-00 Runner 1 |
8JP-F3731-00-00 |
US $89.68 |
||
| replacement | |||||
|
14
|
14
SMA-EAT99-75-00 Rnr Extender Trail Iii Runner |
SMA-EAT99-75-00 |
US $97.79 |
||
|
15
|
15
8JP-RA358-00-00 Nut, Flange Locking 3/8-163/8-16 |
8JP-RA358-00-00 |
US $5.85 |
||
|
16
|
16
8JP-RA359-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA359-00-00 |
US $6.52 |
||
|
17
|
17
8JP-RA443-00-00 Washer, 10.98X28.00X1.610.98X28.00X1.6 |
8JP-RA443-00-00 |
US $6.92 |
||
|
18
|
18
8JP-RAK01-00-00 Pin, 1 |
8JP-RAK01-00-00 |
US $5.90 |
||
|
19
|
19
8JP-RA193-00-00 Bolt, Flange M10-1.25X137M10-1.25X137 |
8JP-RA193-00-00 |
US $21.82 |
||
|
20
|
20
8JP-F355A-00-00 Arm, Front Upper RhRH |
8JP-F355A-00-00 |
US $203.98 |
||
|
21
|
21
8JP-F354A-00-00 Arm, Front Upper LhLH |
8JP-F354A-00-00 |
US $182.29 |
||
|
22
|
22
8JP-RA190-00-00 Bolt, Flange M8X1.25X45M8X1.25X45 |
8JP-RA190-00-00 |
US $1.89 |
||
|
23
|
23
8JP-RA720-00-00 Collar, 8 |
8JP-RA720-00-00 |
US $3.40 |
||
|
24
|
24
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
25
|
25
8JP-RA362-00-00 Nut, Flange Locking M12X1.25M12X1.25 |
8JP-RA362-00-00 |
from US $1.60 |
||
|
26
|
26
8JP-F3867-00-00 Holder 2 |
8JP-F3867-00-00 |
US $9.83 |
||
|
27
|
27
8JP-F386E-00-00 Bar, Stabilizer Front |
8JP-F386E-00-00 |
US $136.60 |
||
|
28
|
28
8JP-F386G-00-00 Bush, Stabilizer Front |
8JP-F386G-00-00 |
US $9.65 |
||
|
29
|
29
8JP-F386C-00-00 Holder, Stabilizer Front |
8JP-F386C-00-00 |
US $9.76 |
||
|
30
|
30
8JP-RA235-00-00 Screw, 1 |
8JP-RA235-00-00 |
US $7.56 |
||
|
31
|
31
8JP-RA273-00-00 Screw, M8X1.25X35M8X1.25X35 |
8JP-RA273-00-00 |
US $14.24 |
||
|
32
|
32
8JP-F386F-00-00 Link, Stabilizer Front |
8JP-F386F-00-00 |
US $42.80 |
||
|
33
|
33
8JP-F358A-00-00 Arm, Front Lower Rh |
8JP-F358A-00-00 |
US $275 |
||
|
34
|
34
8JP-RA807-00-00 Bush, 10Du1010DU10 |
8JP-RA807-00-00 |
US $42.64 |
||
|
35
|
35
8JP-RA811-00-00 Bush, 1815Du1815DU |
8JP-RA811-00-00 |
US $6.62 |
||
|
36
|
36
8JP-F357A-00-00 Arm, Front Lower Lh |
8JP-F357A-00-00 |
US $275 |
||
|
37
|
37
8JP-RA807-00-00 Bush, 10Du1010DU10 |
8JP-RA807-00-00 |
US $42.64 |
||
|
38
|
38
8JP-RA811-00-00 Bush, 1815Du1815DU |
8JP-RA811-00-00 |
US $6.62 |
||
|
39
|
39
8JP-RA361-00-00 Nut, Flange Locking M12X1.25M12X1.25 |
8JP-RA361-00-00 |
US $5.08 |
||
|
40
|
40
8JP-F3543-00-00 Arm, 1 |
8JP-F3543-00-00 |
US $12.08 |
||
|
41
|
41
8JP-RA721-00-00 Collar, 9 |
8JP-RA721-00-00 |
US $16.79 |
||
|
42
|
42
8JP-RA1A7-00-00 Bolt, Flange M12X1.25X76M12X1.25X76 |
8JP-RA1A7-00-00 |
from US $3.20 |
||
|
43
|
43
8JP-RA1A4-00-00 Bolt, Flange M10X1.25X75M10X1.25X75 |
8JP-RA1A4-00-00 |
US $3.26 |
||
|
44
|
44
8JP-RA719-00-00 Collar, 7 |
8JP-RA719-00-00 |
US $12.92 |
||
|
45
|
45
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
46
|
46
8JP-F2214-00-00 Guide, Spring 1 |
8JP-F2214-00-00 |
US $11.16 |
||
|
47
|
47
8JP-RA724-00-00 Collar, 1212 |
8JP-RA724-00-00 |
US $14.98 |
||
|
48
|
48
8JP-RA1A3-00-00 Bolt, Flange M10X1.25X50M10X1.25X50 |
8JP-RA1A3-00-00 |
US $20.90 |
||
|
49
|
49
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
50
|
50
8JP-F330E-00-00 Damper Assy |
8JP-F330E-00-00 |
US $255.42 |
||
| replacement | |||||
|
50
|
50
8JP-F330E-10-00 Damper Assy |
8JP-F330E-10-00 |
US $226.31 |
||
|
51
|
51
8JP-RA804-00-00 Bush, 3 |
8JP-RA804-00-00 |
US $22.54 |
||
|
52
|
52
8JP-RA728-00-00 Collar, 14.514.5 |
8JP-RA728-00-00 |
US $14.13 |
||
|
53
|
53
8JP-F3351-00-00 Spring |
8JP-F3351-00-00 |
US $77.81 |
||
|
54
|
54
8JP-F2259-70-00 Label, Warning |
8JP-F2259-70-00 |
US $3.13 |
||
