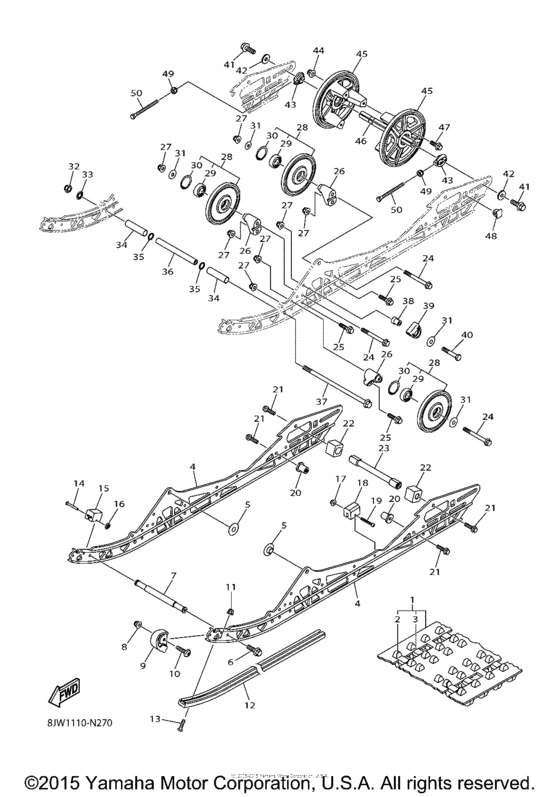

Track suspension (1) Diagram Yamaha SR10/ SRV10 SR Viper R-TX DX
- Model code
- 8JP1
- Engine Capacity
- 1049
- Year
- 2014
- Sales region
- USA
- Colour
- Yamaha Black
- Color Variant
- A
- Power
- 135 hp
- Model
- SR Viper R-TX DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-G7110-00-00 Track Assy |
8JP-G7110-00-00 |
US $1,383.34 |
||
|
2
|
2
8JP-G7113-00-00 Plate, Reinforcement |
8JP-G7113-00-00 |
US $6.84 |
||
|
3
|
3
8JP-G7115-00-00 Metal, Slide |
8JP-G7115-00-00 |
US $54 |
||
|
4
|
4
8JP-G741A-00-00 Frame, Sliding |
8JP-G741A-00-00 |
US $303.23 |
||
|
5
|
5
8JP-RA725-00-00 Collar, 1313 |
8JP-RA725-00-00 |
US $5.60 |
||
|
6
|
6
8JP-RA186-00-00 Bolt, Flange M8X1.25X25M8X1.25X25 |
8JP-RA186-00-00 |
US $1.44 |
||
|
7
|
7
8JP-G7485-00-00 Shaft 3 |
8JP-G7485-00-00 |
US $73.12 |
||
|
8
|
8
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
9
|
9
8JP-G7422-00-00 Runner, Sliding 2 |
8JP-G7422-00-00 |
US $22.90 |
||
|
10
|
10
8JP-RA263-00-00 Screw, M6X1.0X25M6X1.0X25 |
8JP-RA263-00-00 |
US $14.15 |
||
|
11
|
11
8JP-RA357-00-00 Nut, Flange Locking 1/4-201/4-20 |
8JP-RA357-00-00 |
US $7.20 |
||
|
12
|
12
8JP-G7421-00-00 Runner, Sliding 1 |
8JP-G7421-00-00 |
US $39.78 |
||
| replacement | |||||
|
12
|
12
SMA-8JP92-00-BK Sld Slides 129 Bk |
SMA-8JP92-00-BK |
US $16.94 |
||
|
13
|
13
8JM-RA206-00-00 Screw, 1/4-20X1.1251/4-20X1.125 |
8JM-RA206-00-00 |
US $9.45 |
||
|
14
|
14
8JM-RAY02-00-00 Pin, 2 |
8JM-RAY02-00-00 |
US $2.92 |
||
|
15
|
15
8JM-G7456-00-00 Damper 1 |
8JM-G7456-00-00 |
US $40.60 |
||
|
16
|
16
8JP-RA346-00-00 Nut, 0.1250.125 |
8JP-RA346-00-00 |
US $10.90 |
||
|
17
|
17
8JP-RA363-00-00 Nut, Flange Locking M5X0.8M5X0.8 |
8JP-RA363-00-00 |
US $15.80 |
||
|
18
|
18
8JP-G7457-00-00 Damper 2 |
8JP-G7457-00-00 |
US $9.81 |
||
|
19
|
19
8JP-RA249-00-00 Screw, M5X0.8X40M5X0.8X40 |
8JP-RA249-00-00 |
US $9.36 |
||
|
20
|
20
8JP-G7368-00-00 Nut |
8JP-G7368-00-00 |
US $6.14 |
||
|
21
|
21
8JP-RA198-00-00 Bolt, Flange M10X1.25X30M10X1.25X30 |
8JP-RA198-00-00 |
US $14.24 |
||
|
22
|
22
8JP-G745D-00-00 Stopper, Cont. 1 |
8JP-G745D-00-00 |
US $17.33 |
||
|
23
|
23
8JP-G7337-00-00 Shaft, Pivot |
8JP-G7337-00-00 |
US $104.13 |
||
|
24
|
24
8JP-RA192-00-00 Bolt, Flange M8X1.25X80M8X1.25X80 |
8JP-RA192-00-00 |
US $8.28 |
||
|
25
|
25
8JP-RA188-00-00 Bolt, Flange M8X1.25X30M8X1.25X30 |
8JP-RA188-00-00 |
US $1.57 |
||
|
26
|
26
8JP-G7419-00-00 Bracket 7 |
8JP-G7419-00-00 |
US $34.29 |
||
|
27
|
27
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
28
|
28
8JP-G7310-00-00 Suspension Wheel A |
8JP-G7310-00-00 |
US $65.81 |
||
| replacement | |||||
|
28
|
28
8JP-G7310-10-00 Suspension Wheel Assy |
8JP-G7310-10-00 |
US $64.33 |
||
|
29
|
29
8JM-RAY03-00-00 Bearing, 2 |
8JM-RAY03-00-00 |
US $25.22 |
||
|
30
|
30
8JM-RAH01-00-00 Circlip, 2 |
8JM-RAH01-00-00 |
US $10.26 |
||
|
31
|
31
8JP-RA452-00-00 Washer, 9.12X25.40X2.309.12X25.40X2.30 |
8JP-RA452-00-00 |
US $5.76 |
||
|
32
|
32
8JP-RA371-00-00 Nut, Hex. Locking M10X1.25M10X1.25 |
8JP-RA371-00-00 |
US $1.58 |
||
|
33
|
33
8JP-RA457-00-00 Washer, Tooth M10M10 |
8JP-RA457-00-00 |
US $1.62 |
||
|
34
|
34
8JP-RA723-00-00 Collar, 1111 |
8JP-RA723-00-00 |
US $15.23 |
||
|
35
|
35
8JP-RA437-00-00 Washer, 0.890X1.19X0.0600.890X1.19X0.060 |
8JP-RA437-00-00 |
US $7.90 |
||
|
36
|
36
8JP-RA729-00-00 Collar, 22.222.2 |
8JP-RA729-00-00 |
US $75.02 |
||
|
37
|
37
8JP-RA194-00-00 Bolt, Flange M10-1.25X250M10-1.25X250 |
8JP-RA194-00-00 |
US $20.72 |
||
| replacement | |||||
|
37
|
37
8JP-RA194-10-00 Bolt, Flg. M10-1.25X250M10-1.25X250 |
8JP-RA194-10-00 |
US $9.83 |
||
|
38
|
38
8JP-G7319-00-00 Collar |
8JP-G7319-00-00 |
US $14.83 |
||
|
39
|
39
8JP-G7446-00-00 Hook 1 |
8JP-G7446-00-00 |
US $21.82 |
||
|
40
|
40
8JP-RA1B2-00-00 Bolt, Hex. M8X1.25X50 |
8JP-RA1B2-00-00 |
US $8.90 |
||
|
41
|
41
8JP-RA198-00-00 Bolt, Flange M10X1.25X30M10X1.25X30 |
8JP-RA198-00-00 |
US $14.24 |
||
|
42
|
42
8JP-RA453-00-00 Washer, M10X29M10X29 |
8JP-RA453-00-00 |
US $5.08 |
||
|
43
|
43
8JP-G7534-00-00 Wheel, Guide 1 |
8JP-G7534-00-00 |
US $9.77 |
||
|
44
|
44
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
45
|
45
8JP-G7550-00-00 Guide Wheel Assy |
8JP-G7550-00-00 |
US $77.56 |
||
| replacement | |||||
|
45
|
45
8JP-G7550-01-00 Guide Wheel Assy |
8JP-G7550-01-00 |
US $82.66 |
||
|
46
|
46
8JP-G7521-00-00 Axle, Rear |
8JP-G7521-00-00 |
US $67.34 |
||
|
47
|
47
8JP-RA181-00-00 Bolt, Flange M6X1.0X20M6X1.0X20 |
8JP-RA181-00-00 |
US $6.40 |
||
|
48
|
48
8JP-G7463-00-00 Bracket 5 |
8JP-G7463-00-00 |
US $6.03 |
||
|
49
|
49
8JP-RA372-00-00 Nut, Hex. Locking M8X1.25M8X1.25 |
8JP-RA372-00-00 |
US $0.72 |
||
|
50
|
50
8JP-RA1B1-00-00 Bolt, Hex. M8X1.25X100 |
8JP-RA1B1-00-00 |
US $12.44 |
||
