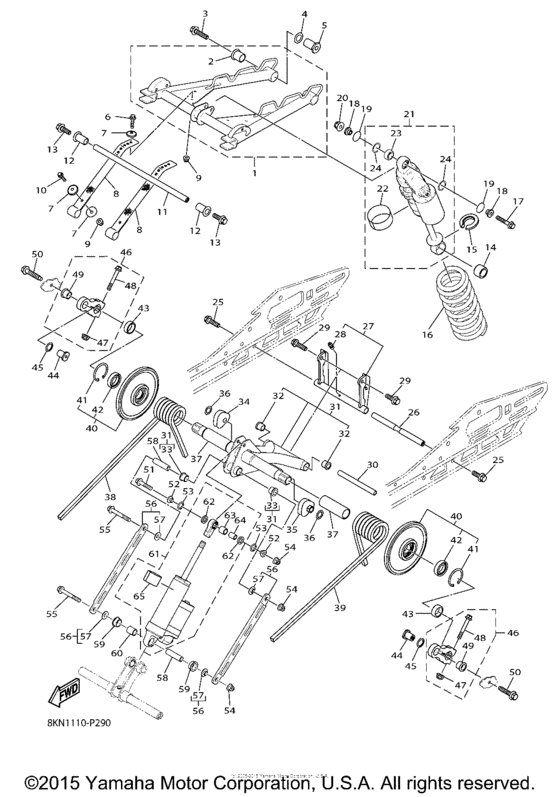

Track suspension (2) Diagram Yamaha SR10/ SRV10 SR Viper R-TX LE
- Model code
- 8KN1
- Engine Capacity
- 1049
- Year
- 2015
- Sales region
- USA
- Power
- 135 hp
- Model
- SR Viper R-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KN-G7331-00-00 Arm, Pivot 1 |
8KN-G7331-00-00 |
US $315.11 |
||
|
2
|
2
8KN-G7371-00-00 Bush, Pivot |
8KN-G7371-00-00 |
US $24.23 |
||
|
3
|
3
8KN-RA1B8-00-00 Bolt, Flange 3 |
8KN-RA1B8-00-00 |
US $18.18 |
||
|
4
|
4
8JP-RA439-00-00 Washer, 1.00X1.43X0.0751.00X1.43X0.075 |
8JP-RA439-00-00 |
US $10.17 |
||
|
5
|
5
8KN-RA380-00-00 Nut, Pivot |
8KN-RA380-00-00 |
US $41.31 |
||
|
6
|
6
8JP-RA182-00-00 Bolt, Flange M6X1.0X25M6X1.0X25 |
8JP-RA182-00-00 |
US $0.99 |
||
|
7
|
7
8KN-RA470-00-00 Washer , Pivot |
8KN-RA470-00-00 |
US $2.92 |
||
|
8
|
8
8JP-G7495-00-00 Stopper 1 |
8JP-G7495-00-00 |
US $19.01 |
||
|
9
|
9
8JM-RA322-00-00 Nut, Flange M6-1.0M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
10
|
10
8KN-RA183-00-00 Bolt, Flange M6X1.0X30M6X1.0X30 |
8KN-RA183-00-00 |
US $10.10 |
||
|
11
|
11
8KN-G7465-00-00 Shaft 1 |
8KN-G7465-00-00 |
US $122.99 |
||
|
12
|
12
8KN-RA805-00-00 Bush, 4 |
8KN-RA805-00-00 |
US $33.84 |
||
|
13
|
13
8KN-RA1A0-00-00 Bolt, Flange M10X1.25X40M10X1.25X40 |
8KN-RA1A0-00-00 |
US $42.76 |
||
|
14
|
14
8KN-RA819-00-00 Bush, Shock |
8KN-RA819-00-00 |
US $32.62 |
||
|
15
|
15
8JP-F2214-00-00 Guide, Spring 1 |
8JP-F2214-00-00 |
US $11.16 |
||
|
16
|
16
8KN-G7336-00-00 Spring |
8KN-G7336-00-00 |
US $77.94 |
||
|
17
|
17
8JP-RA1A2-00-00 Bolt, Flange M10X1.25X45M10X1.25X45 |
8JP-RA1A2-00-00 |
US $11.90 |
||
| replacement | |||||
|
17
|
17
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
18
|
18
8JP-RA738-00-00 Collar, Shock Eye |
8JP-RA738-00-00 |
US $4.01 |
||
|
19
|
19
8JP-RAF11-00-00 O-Ring, 5/85/8 |
8JP-RAF11-00-00 |
US $2.70 |
||
|
20
|
20
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
21
|
21
8KN-F2201-00-00 Damper Sub Assy |
8KN-F2201-00-00 |
US $833.85 |
||
|
22
|
22
8KN-F2259-70-00 Label, Warning |
8KN-F2259-70-00 |
US $9.99 |
||
|
23
|
23
8KN-RAG09-10-00 Bearing, Shock Eye |
8KN-RAG09-10-00 |
US $146.23 |
||
|
24
|
24
8KN-RAH12-10-00 Circlip, Shock Eye |
8KN-RAH12-10-00 |
US $15.82 |
||
|
25
|
25
8JP-RA199-00-00 Bolt, Flange M10X1.25X30M10X1.25X30 |
8JP-RA199-00-00 |
US $8.64 |
||
|
26
|
26
8JP-G7488-10-00 Shaft 6 |
8JP-G7488-10-00 |
US $26.06 |
||
|
27
|
27
8JP-G7417-00-00 Bracket 3 |
8JP-G7417-00-00 |
US $82.66 |
||
|
28
|
28
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
29
|
29
8JP-RA1A0-00-00 Bolt, Flange M10X1.25X40M10X1.25X40 |
8JP-RA1A0-00-00 |
US $3.42 |
||
|
30
|
30
8JR-G7487-00-00 Shaft 5 |
8JR-G7487-00-00 |
US $52.06 |
||
|
31
|
31
8KN-G7332-00-00 Arm, Pivot 2 |
8KN-G7332-00-00 |
US $251.28 |
||
|
32
|
32
8KN-RA808-00-00 Bush, 0.6280.628 |
8KN-RA808-00-00 |
US $2.81 |
||
|
33
|
33
8JP-RA818-00-00 Bush, Flange |
8JP-RA818-00-00 |
US $30.25 |
||
|
34
|
34
8JM-G7448-00-00 Hook 3 |
8JM-G7448-00-00 |
US $19.22 |
||
|
35
|
35
8JM-G7447-00-00 Hook 2 |
8JM-G7447-00-00 |
US $23.78 |
||
|
36
|
36
8JM-RA315-00-00 Nut |
8JM-RA315-00-00 |
US $11.50 |
||
|
37
|
37
8KN-G7445-00-00 Protector |
8KN-G7445-00-00 |
US $16.96 |
||
|
38
|
38
8JP-G7474-00-00 Spring, Rear 2 |
8JP-G7474-00-00 |
US $132.16 |
||
|
39
|
39
8JP-G7473-00-00 Spring, Rear 1 |
8JP-G7473-00-00 |
US $134.78 |
||
|
40
|
40
8JP-G7312-00-00 Wheel, Suspension 2 |
8JP-G7312-00-00 |
US $65.81 |
||
|
41
|
41
8JP-RAH04-00-00 Circlip, 2 |
8JP-RAH04-00-00 |
US $9.52 |
||
|
42
|
42
8JP-RAG03-00-00 Bearing, 2 |
8JP-RAG03-00-00 |
US $42.80 |
||
|
43
|
43
8KN-RA727-00-00 Collar, 12.8112.81 |
8KN-RA727-00-00 |
US $2.32 |
||
|
44
|
44
8JP-G7368-00-00 Nut |
8JP-G7368-00-00 |
US $6.14 |
||
|
45
|
45
8JP-RA436-00-00 Washer, 0.0350.035 |
8JP-RA436-00-00 |
US $5.85 |
||
|
46
|
46
8KN-G7361-00-00 Arm, Rear Pivot 1 |
8KN-G7361-00-00 |
US $99.31 |
||
|
47
|
47
8JM-RA301-00-00 Nut, Self-Locking M8-1.25M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
48
|
48
8JP-RA191-00-00 Bolt, Flange M8X1.25X60M8X1.25X60 |
8JP-RA191-00-00 |
US $75.44 |
||
|
49
|
49
8JP-RA813-00-00 Bush, 12Fdu1212FDU12 |
8JP-RA813-00-00 |
US $6.46 |
||
|
50
|
50
8JP-RA196-00-00 Bolt, Flange M10X1.25X30M10X1.25X30 |
8JP-RA196-00-00 |
US $19.04 |
||
|
51
|
51
8JP-RA1A2-00-00 Bolt, Flange M10X1.25X45M10X1.25X45 |
8JP-RA1A2-00-00 |
US $11.90 |
||
| replacement | |||||
|
51
|
51
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
52
|
52
8JP-RA738-00-00 Collar, Shock Eye |
8JP-RA738-00-00 |
US $4.01 |
||
|
53
|
53
8JP-RAF11-00-00 O-Ring, 5/85/8 |
8JP-RAF11-00-00 |
US $2.70 |
||
|
54
|
54
8JP-RA360-00-00 Nut, Flange Locking M10X1.25M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
55
|
55
8JP-RA1B4-00-00 Bolt, Flange |
8JP-RA1B4-00-00 |
US $11.70 |
||
|
56
|
56
8KN-G7494-00-00 Rod, Relay |
8KN-G7494-00-00 |
US $54.04 |
||
|
57
|
57
8JP-RA725-00-00 Collar, 1313 |
8JP-RA725-00-00 |
US $5.60 |
||
|
58
|
58
8KN-RA724-00-00 Collar, 1212 |
8KN-RA724-00-00 |
US $20.57 |
||
|
59
|
59
8KN-RA819-10-00 Bush, Shock |
8KN-RA819-10-00 |
US $4.40 |
||
|
60
|
60
8KN-RA819-20-00 Bush, Shock |
8KN-RA819-20-00 |
US $3.82 |
||
|
61
|
61
8KN-G7480-00-00 Shock Absorber |
8KN-G7480-00-00 |
US $1,060.10 |
||
|
62
|
62
8KN-RA459-00-00 Washer, Seat 1 |
8KN-RA459-00-00 |
US $28.62 |
||
|
63
|
63
8KN-RA819-30-00 Bush, Shock |
8KN-RA819-30-00 |
US $42.55 |
||
|
64
|
64
8KN-RA728-00-00 Collar, 14.514.5 |
8KN-RA728-00-00 |
US $19.89 |
||
|
65
|
65
8KN-F2259-70-00 Label, Warning |
8KN-F2259-70-00 |
US $9.99 |
||
