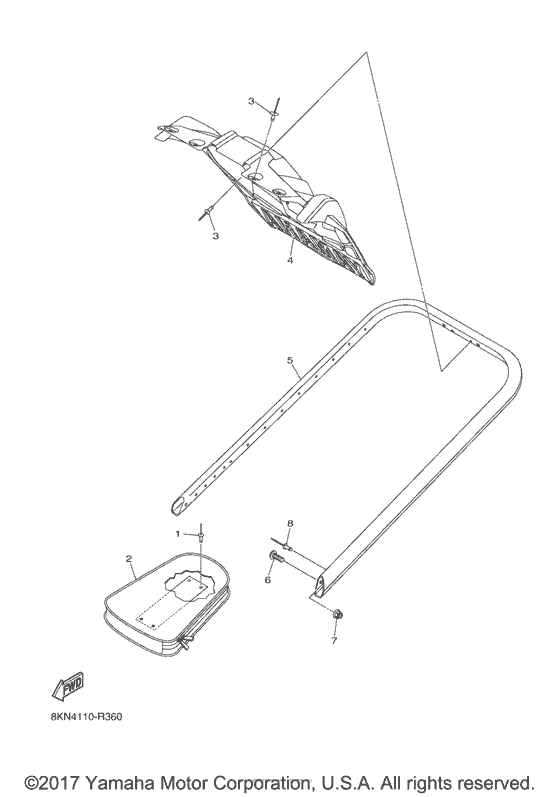

Bumper Diagram Yamaha SR10/ SRV10 SR Viper R-TX LE
- Model code
- 8KN4
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper R-TX LE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-RA520-00-00 Rivet, 11 |
8JP-RA520-00-00 |
US $9.50 |
||
|
2
|
2
8JW-F8441-00-00 Saddle Bag 1 |
8JW-F8441-00-00 |
US $58.63 |
||
|
3
|
3
8JP-RA524-00-00 Rivet, 15 |
8JP-RA524-00-00 |
US $29.20 |
||
|
4
|
4
8JP-K7595-00-00 Flap |
8JP-K7595-00-00 |
US $70.42 |
||
| replacement | |||||
|
4
|
4
SMA-8JP77-59-BK Flp Snow Flap Bk |
SMA-8JP77-59-BK |
US $38.99 |
||
|
5
|
5
8JW-K7541-40-00 Bumper, Rear 1UR FOR DPBSE |
8JW-K7541-40-00 |
US $121.30 |
||
|
5
|
5
8JW-K7541-20-00 Bumper, Rear 1UR FOR BWC1 |
8JW-K7541-20-00 |
US $131.71 |
||
|
6
|
6
8JP-RA260-00-00 Screw, M6X1.0X20 |
8JP-RA260-00-00 |
US $3.60 |
||
|
7
|
7
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
8
|
8
8JP-RA520-00-00 Rivet, 11 |
8JP-RA520-00-00 |
US $9.50 |
||
