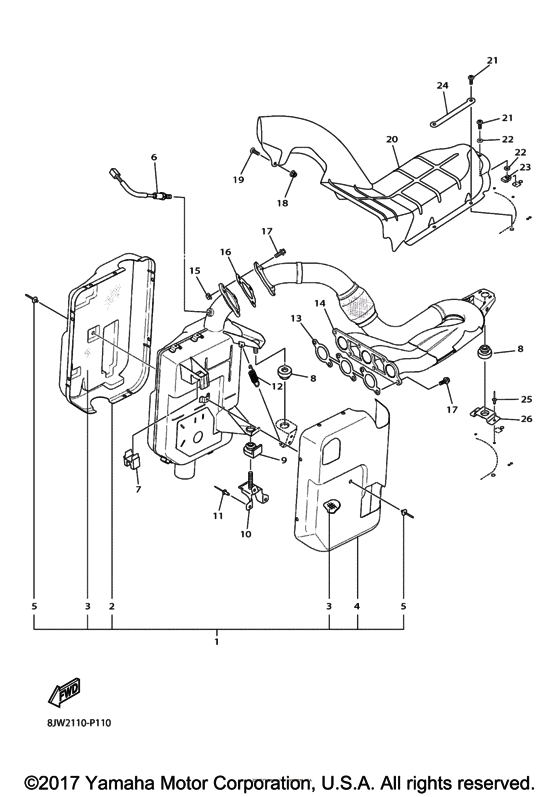

Exhaust Diagram Yamaha SR10/ SRV10 SR Viper R-TX SE
- Model code
- 8JW4
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-E4750-01-00 Silencer Assy |
8JP-E4750-01-00 |
US $953.38 |
||
|
2
|
2
8JP-E4728-00-00 Protector, Muffler 2 |
8JP-E4728-00-00 |
US $217.01 |
||
|
3
|
3
8JP-E4733-00-00 Mat 1 |
8JP-E4733-00-00 |
US $24.07 |
||
|
4
|
4
8JP-E4718-00-00 Protector, Muffler 1 |
8JP-E4718-00-00 |
US $92.83 |
||
|
5
|
5
8JP-RA512-00-00 Rivet, 3 |
8JP-RA512-00-00 |
US $15.50 |
||
|
6
|
6
8JP-H592A-00-00 Sensor, Oxygen |
8JP-H592A-00-00 |
US $161.42 |
||
| replacement | |||||
|
6
|
6
8JP-H592A-01-00 O2 SENSOR |
8JP-H592A-01-00 |
US $172.06 |
||
|
7
|
7
8JP-E4664-00-00 Grommet, Water Shut |
8JP-E4664-00-00 |
US $11.83 |
||
|
8
|
8
8JP-E5357-00-00 Grommet |
8JP-E5357-00-00 |
US $30.46 |
||
|
9
|
9
8JP-E5375-00-00 Grommet |
8JP-E5375-00-00 |
US $22.46 |
||
|
10
|
10
8JP-E4744-00-00 Bracket |
8JP-E4744-00-00 |
US $19.89 |
||
|
11
|
11
8JP-RA521-00-00 Rivet, 12 |
8JP-RA521-00-00 |
US $23.40 |
||
|
12
|
12
8JP-RAD14-00-00 Spring, 3 |
8JP-RAD14-00-00 |
US $44.52 |
||
|
13
|
13
8GL-14613-00-00 Gasket, Exhaust Pipe |
8GL-14613-00-00 |
from US $10.06 |
||
|
14
|
14
8JP-E4610-10-00 Exhaust Pipe Assy 1 |
8JP-E4610-10-00 |
US $844.72 |
||
|
15
|
15
8JP-RA365-00-00 Nut, Flange Locking M8X1.25 |
8JP-RA365-00-00 |
US $8.52 |
||
|
16
|
16
8JP-E4623-00-00 Gasket, Exhaust Pipe |
8JP-E4623-00-00 |
US $32.02 |
||
|
17
|
17
8JP-RA184-00-00 Bolt, Flange M8X1.25X20 |
8JP-RA184-00-00 |
US $8.52 |
||
|
18
|
18
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
19
|
19
8JP-RA263-00-00 Screw, M6X1.0X25 |
8JP-RA263-00-00 |
US $14.15 |
||
|
20
|
20
8JP-E4627-00-00 Cover, Exhaust |
8JP-E4627-00-00 |
US $140.06 |
||
|
21
|
21
8JP-RA2A0-00-00 Screw, 11 |
8JP-RA2A0-00-00 |
US $7.38 |
||
|
22
|
22
8JP-RA441-00-00 Washer, 1/4X0.625X0.065 |
8JP-RA441-00-00 |
US $4.30 |
||
|
23
|
23
8JP-RA353-00-00 Nut, Clip M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
24
|
24
8JP-E465R-00-00 Plate, Protector 1 |
8JP-E465R-00-00 |
US $10.13 |
||
|
25
|
25
8JP-RA517-00-00 Rivet, 8 |
8JP-RA517-00-00 |
US $12.60 |
||
|
26
|
26
8JP-E461L-00-00 Braket, 1-1 |
8JP-E461L-00-00 |
US $10.22 |
||
